Xamarin: Error in Layout Orientation

Qing Ryder

Gooday Everyone, am trying to navigate through a drawer in xamarin but there is an error in layout. the Application runs fine but the layout is jargon.

find attached:

please someone help me out in resolving this

13 Replies

Know the answer? Post it — somebody with the same question will find it here.

Amit Gupta8y ago
Accepted answer
Check your theme file and remove the windowActionBarOverlay line.

Alternatively, you need to put following lines to your layout page
1. Use fitsSystemWindows =true (as you used in your main page)

2. Add paddingTop instead of padding
android:layout_paddingTop="?attr/actionBarSize"
Do let me know, if it works
+2
Qing Ryder8y ago
Hello Amit,
can you help me out, in my Main.axml is contained the android v7 support widget which has a drawer layer for the Navigation menu.
Now i want to edit the Main.axml to hold also some content and i think am getting all wrong, the whole layout is now jargon.

can you assist me on how i can add content ontop of the drawer layout so as to fit in..

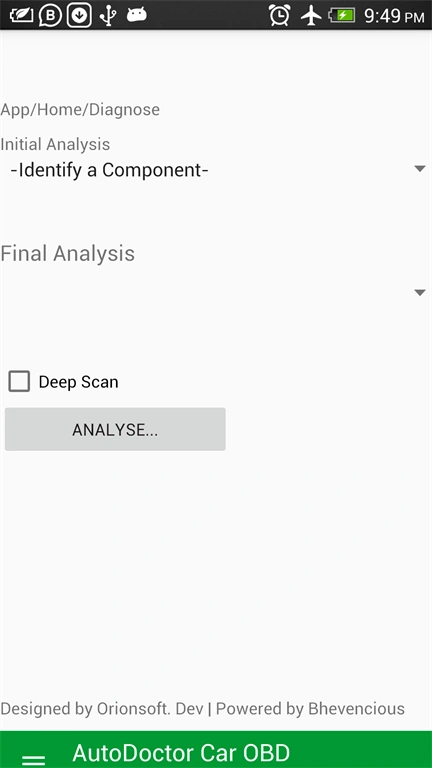

you can see the below screenshot to understand what i mean

from the screenshot now the drawer layout is at the bottom and i think that is what is causing this because as i added items on top of d layout, it kept on moving down.
can you assist?
0
Amit Gupta8y ago
Yeah! using MainLauncher = true to multiple class can create confusion to android system. Use it in the splash screen and on OnCreate function, you can start your activity you wanted.

Note: Please avoid showing splash screen for 4-5 seconds, it would be a bad user experience to wait for few seconds, everytime user starts your application.

Although, every android app needs a cold start for some few seconds, you should show your splash screen in between for user interaction. I recommend you to use xml file for splash screen. (as you can see in Youtube app, Google Play Music etc)
+1
Qing Ryder8y ago
ya i Used that for the splash screen.
but after the splash screen, it displays another page different from what i want.

reading on Msdn, i learnt the MainLauncher used elsewhere will overide my splash screen
0
Amit Gupta8y ago
Use MainLauncher = true in your class attribute
0
Qing Ryder8y ago
Thank you @Amit Gupta.
please how do i set the Page i want the App to first Display at startup
0
Qing Ryder8y ago
only content layout
0
Amit Gupta8y ago
Is your toolvar also overlays to navigation drawer or it is happening with only content layout
0
Qing Ryder8y ago

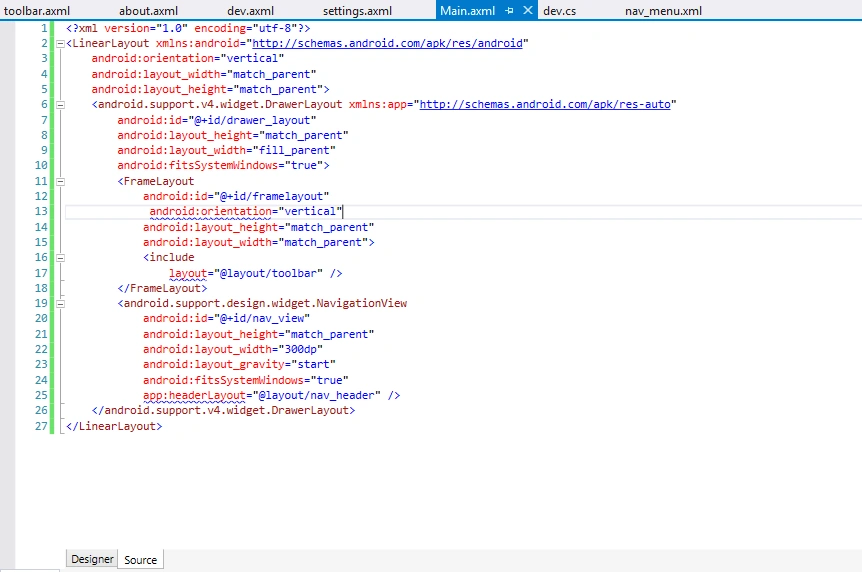

this is for the main.axml
0
Qing Ryder8y ago

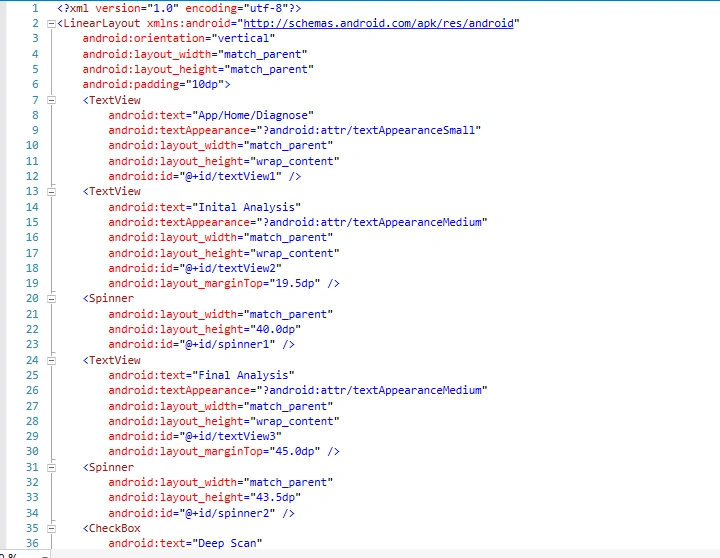

Find attached

0
Amit Gupta8y ago
Can yu show your layout page
0
Qing Ryder8y ago

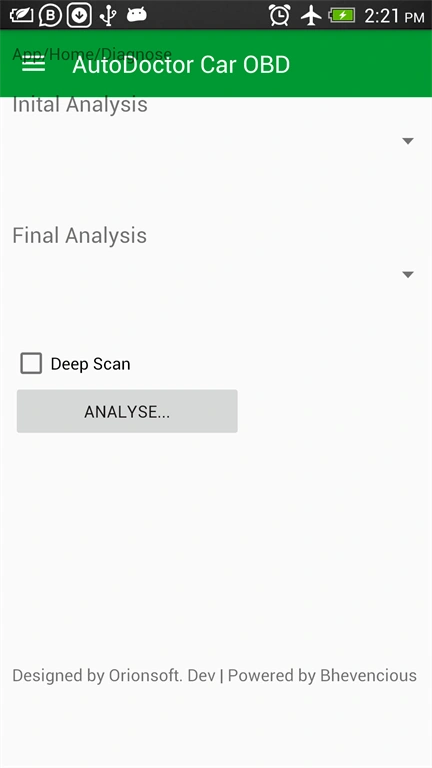

The form/page is starting(app/home/diagonise) above the green border rather than underneath
0
Amit Gupta8y ago
What is the issue?
0
