Service Principle in Azure

Part -2

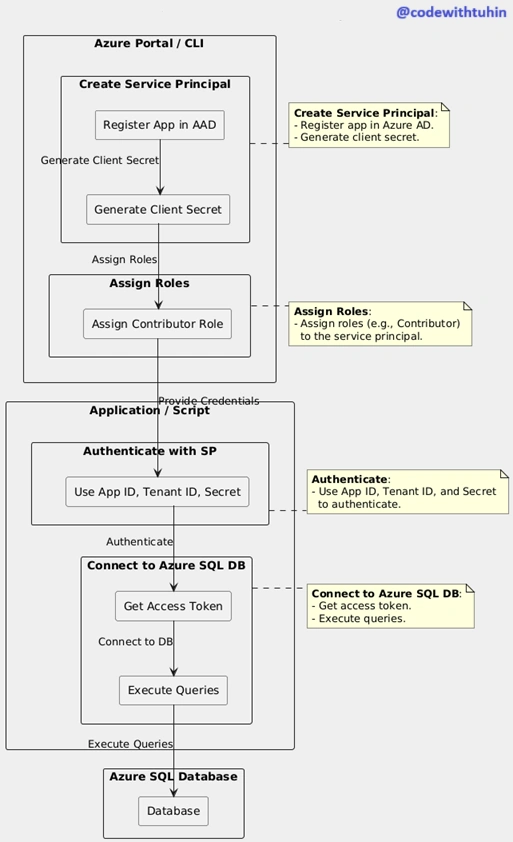

Steps to Create and Use a Service Principal

Step 1: Create a Service Principal

1. Using Azure CLI:
   Run the following command to create a service principal:

   az ad sp create-for-rbac --name "MyAppServicePrincipal" --skip-assignment

   • Replace "MyAppServicePrincipal" with a meaningful name for your service principal.

   • The command outputs:

     • appId (Application ID)

     • password (Client Secret)

     • tenant (Tenant ID)

2. Using Azure Portal:

   • Go to Azure Active Directory > App registrations > New registration.

   • Provide a name for the app and register it.

   • Note the Application (client) ID and Directory (tenant) ID.

   • Go to Certificates & secrets > New client secret to create a client secret.

Step 2: Assign Roles to the Service Principal

To allow the service principal to access Azure SQL Database, assign it a role (e.g., Contributor or SQL DB Contributor).

1. Using Azure CLI:

   az role assignment create --assignee  --role "Contributor" --scope /subscriptions//resourceGroups//providers/Microsoft.Sql/servers/

   • Replace , , , and  with appropriate values.

2. Using Azure Portal:

   • Go to your Azure SQL Server > Access control (IAM) > Add role assignment.

   • Select the role (e.g., Contributor) and assign it to the service principal.

Step 3: Use the Service Principal to Connect to Azure SQL Database

To connect to Azure SQL Database using the service principal, you can use libraries like pyodbc (Python) or System.Data.SqlClient (C#).

Example: Python with pyodbc

1. Install the required libraries:

   pip install pyodbc azure-identity



2. Use the following code to connect:

   from azure.identity import ClientSecretCredential
   import pyodbc

   # Service Principal credentials
   tenant_id = ""
   client_id = ""
   client_secret = ""

   # Azure SQL Database details
   server = ".database.windows.net"
   database = ""

   # Get access token
   credential = ClientSecretCredential(tenant_id, client_id, client_secret)
   token = credential.get_token("https://database.windows.net/.default").token

   # Connect to Azure SQL Database
   connection_string = f"DRIVER={{ODBC Driver 17 for SQL Server}};SERVER={server};DATABASE={database}"
   connection = pyodbc.connect(connection_string, attrs_before={1256: bytearray(token)})

   # Execute a query
   cursor = connection.cursor()
   cursor.execute("SELECT @@VERSION")
   row = cursor.fetchone()
   print(row[0])

Part -1

A Service Principal is an identity created for use with applications, services, and automation tools to access Azure resources. It is essentially a "user account" for applications, allowing them to authenticate and interact with Azure services without using a personal user account.

Main Terms

1. Application ID (Client ID):

   • A unique identifier for the application registered in Azure Active Directory (AAD).

   • Used to identify the application during authentication.

2. Tenant ID:

   • The Azure Active Directory tenant where the application is registered.

   • Represents the organization or directory in Azure.

3. Client Secret:

   • A password or certificate used for authentication.

   • Must be securely stored and rotated periodically.

4. Roles and Permissions:

   • The service principal is assigned roles (e.g., Contributor, Reader) to control access to Azure resources.

   • Roles are assigned at the subscription, resource group, or resource level.

5. Use Cases:

   • Automating Azure Tasks:

     • Deploying resources using Infrastructure as Code (IaC) tools like Terraform or ARM templates.

     • Managing Azure resources programmatically.

   • Connecting to Azure SQL Database:

     • Applications or scripts can use a service principal to authenticate and interact with Azure SQL Database.

   • CI/CD Pipelines:

     • Integrating with Azure DevOps, GitHub Actions, or Jenkins to automate deployments and testing.

   • Monitoring and Management:

     • Automating monitoring, logging, and management tasks using Azure Monitor, Log Analytics, or Azure Automation.

What is a Service Principal in Azure?

A Service Principal in Azure is a security identity used by applications, services, or automation tools to access Azure resources. It works like a user identity but is designed for applications, enabling authentication and authorization without a human user.

In the context of Azure SQL Database, a Service Principal can be used to authenticate and connect securely without using passwords.

Steps to Create and Use a Service Principal for Azure SQL Database

1. Create a Service Principal (App Registration)

1. Go to Azure Portal: Azure Portal
2. Navigate to "Azure Active Directory":
   • In the left menu, select Azure Active Directory.
3. Create a New App Registration:
   • Click App registrations > New registration.
   • Provide a Name (e.g., AzureSQLServicePrincipal).
   • Choose "Accounts in this organizational directory only".
   • Click Register.
4. Get Client ID and Tenant ID:
   • After registration, go to Overview and note down:
     • Application (client) ID
     • Directory (tenant) ID
5. Create a Client Secret:
   • Go to Certificates & secrets > New client secret.
   • Provide a name, select expiration, and click Add.
   • Copy the client secret value (it won't be visible later).

2. Assign the Service Principal to the Azure SQL Database

1. Go to the SQL Server in Azure Portal:

   • Navigate to SQL Server (not the database) where your Azure SQL Database is hosted.

2. Enable Managed Identity Authentication (Optional):

   • Go to Azure Active Directory under settings.
   • Set "Azure AD Authentication Only" to Yes (if needed).

3. Create an Azure AD Admin (If Not Set):

   • Go to Active Directory admin > Set admin.
   • Select your Azure AD Service Principal and save changes.

4. Grant Permissions in SQL Server:

   • Connect to SQL Server using Azure Data Studio or SSMS.
   • Run the following SQL to create a user and assign roles:

   -- Switch to the correct database
   USE [YourDatabaseName];
   GO

   -- Create a new user for the Service Principal
   CREATE USER [YourServicePrincipalName] FROM EXTERNAL PROVIDER;
   GO

   -- Assign required roles (Example: db_owner)
   ALTER ROLE db_owner ADD MEMBER [YourServicePrincipalName];
   GO


3. Connect to Azure SQL Database Using the Service Principal

Using Azure AD Authentication in C# (ADO.NET)

You can authenticate using Azure.Identity and the Access Token from the Service Principal.

using System;
using System.Data.SqlClient;
using Azure.Identity;

class Program
{
    static void Main()
    {
        string tenantId = "your-tenant-id";
        string clientId = "your-client-id";
        string clientSecret = "your-client-secret";
        string sqlServer = "your-sql-server.database.windows.net";
        string database = "your-database-name";

        var credential = new ClientSecretCredential(tenantId, clientId, clientSecret);
        string accessToken = credential.GetToken(new Azure.Core.TokenRequestContext(new[] { "https://database.windows.net/.default" })).Token;

        string connectionString = $"Server={sqlServer}; Database={database}; Encrypt=True; TrustServerCertificate=False; Connection Timeout=30;";

        using (SqlConnection connection = new SqlConnection(connectionString))
        {
            connection.AccessToken = accessToken;
            connection.Open();
            Console.WriteLine("Connected successfully!");
        }
    }
}

Summary

1. Create a Service Principal in Azure AD.
2. Assign the Service Principal to Azure SQL Database.
3. Grant necessary permissions using SQL.
4. Use the Service Principal to connect via code.

This approach enhances security by eliminating password storage and relying on Azure AD authentication. Let me know if you need further clarification! ??
