Please make micrservices using .netcore API orMVC with docker

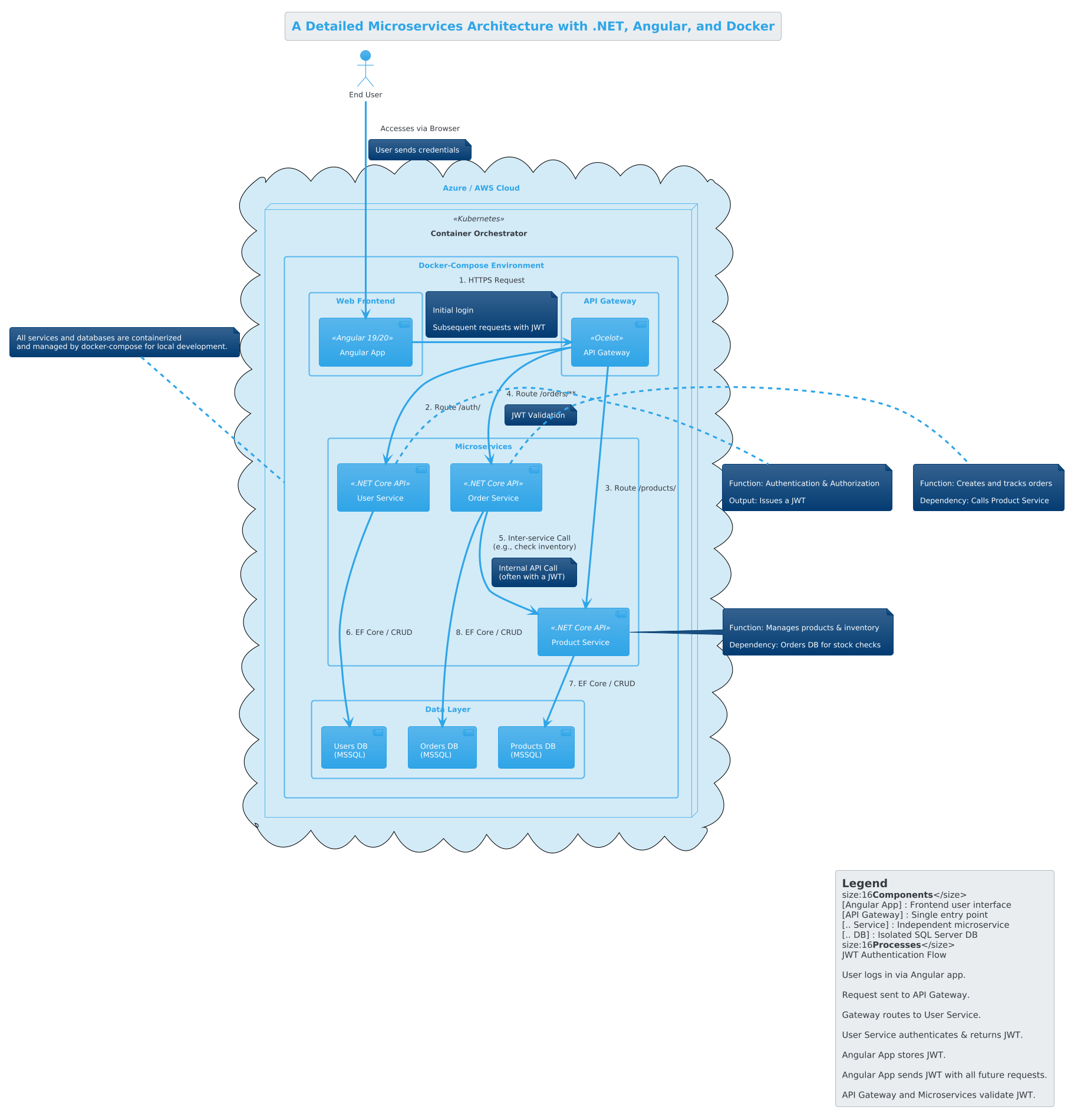

I hope this image clarifies your query. let me know if anything specific you are looking for.

You can implement the whole stack locally with docker compose, then lift-and-shift the same containers to Azure Container Apps / AKS or AWS ECS / EKS. A successful microservices architecture relies on separation of concerns and independent deployment. Each service should have its own codebase, database, and be responsible for a single, well-defined function.

MicroservicesDemo – Developer-Friendly Guide

This guide is designed for developers to understand, run, and deploy a .NET Core microservices project with Angular frontend, JWT authentication, and Docker setup, ready for Azure deployment.

Project Structure


    MicroservicesDemo/
¦
+-- UserService/        # Handles user registration, login, JWT
¦   +-- Controllers/
¦   +-- Models/
¦   +-- Data/
¦   +-- Program.cs
¦   +-- Dockerfile
¦
+-- ProductService/     # CRUD for products
¦   +-- Controllers/
¦   +-- Models/
¦   +-- Data/
¦   +-- Program.cs
¦   +-- Dockerfile
¦
+-- OrderService/       # CRUD for orders, communicates with ProductService
¦   +-- Controllers/
¦   +-- Models/
¦   +-- Data/
¦   +-- Program.cs
¦   +-- Dockerfile
¦
+-- Frontend/           # Angular 20 app
¦   +-- src/
¦   +-- angular.json
¦   +-- Dockerfile
¦
+-- docker-compose.yml
+-- PostmanCollection.json


Backend Services (C# .NET Core)

• UserService : register/login endpoints, JWT token issuance

• ProductService : CRUD endpoints for products

• OrderService : CRUD endpoints for orders, calls ProductService via HTTP

• EF Core : each service has its own MS SQL database for persistence

Angular Frontend (v20)

• Login page stores JWT in localStorage

• Product page lists products and supports Add/Edit/Delete

• Communicates with backend APIs using JWT authentication

Dockerfile (production build) :


    FROM node:20 AS build
WORKDIR /app
COPY package*.json ./
RUN npm install
COPY . .
RUN npm run build --prod
FROM nginx:alpine
COPY --from=build /app/dist/frontend /usr/share/nginx/html
EXPOSE 80
CMD ["nginx", "-g", "daemon off;"]


Docker Setup

docker-compose.yml :


    version: '3.8'
services:
  userservice:
    build: ./UserService
    ports: ["5001:80"]
    environment:
      - ConnectionStrings__DefaultConnection=Server=mssql;Database=UserDb;User Id=sa;Password=Your_password123;

  productservice:
    build: ./ProductService
    ports: ["5002:80"]
    depends_on: [userservice]

  orderservice:
    build: ./OrderService
    ports: ["5003:80"]
    depends_on: [userservice, productservice]

  frontend:
    build: ./Frontend
    ports: ["4200:80"]

  mssql:
    image: mcr.microsoft.com/mssql/server:2022-latest
    environment:
      SA_PASSWORD: "Your_password123"
      ACCEPT_EULA: "Y"
    ports: ["1433:1433"]


• Run locally: docker-compose up --build

Azure Deployment Steps

Step 1: Create Resources


    az login
az group create --name MicroservicesDemoRG --location eastus
az acr create --resource-group MicroservicesDemoRG --name microservicesacr --sku Basic
az sql server create --name usersqlserver --resource-group MicroservicesDemoRG --location eastus --admin-user azureuser --admin-password YourStrongPassword123
az sql db create --resource-group MicroservicesDemoRG --server usersqlserver --name UserDb --service-objective S0
# Repeat for ProductDb and OrderDb


Step 2: Push Docker Images to ACR


    az acr login --name microservicesacr
docker tag userservice microservicesacr.azurecr.io/userservice:latest
docker push microservicesacr.azurecr.io/userservice:latest
# Repeat for ProductService, OrderService, Frontend


Step 3: Deploy Services


    az appservice plan create --name MicroservicesPlan --resource-group MicroservicesDemoRG --sku B1 --is-linux
az webapp create --resource-group MicroservicesDemoRG --plan MicroservicesPlan --name userserviceapp --deployment-container-image-name microservicesacr.azurecr.io/userservice:latest
# Repeat for ProductService, OrderService, Frontend


Step 4: Configure Environment Variables


    az webapp config appsettings set --resource-group MicroservicesDemoRG --name userserviceapp --settings ConnectionStrings__DefaultConnection="Server=tcp:usersqlserver.database.windows.net,1433;Initial Catalog=UserDb;User ID=azureuser;Password=YourStrongPassword123;"
# Repeat for other services


Minimal Working Code Snippets

UserService

Models/User.cs


    public class User { public int Id { get; set; } public string Email { get; set; } public string Password { get; set; } }


Data/UserDbContext.cs


    public class UserDbContext : DbContext {
    public UserDbContext(DbContextOptions options) : base(options) {}
    public DbSet Users { get; set; }
}


Controllers/UserController.cs


    [ApiController]
[Route("api/user")]
public class UserController : ControllerBase {
    private readonly UserDbContext _context;
    private readonly IConfiguration _config;

    public UserController(UserDbContext context, IConfiguration config) { _context = context; _config = config; }

    [HttpPost("register")]
    public async Task Register(User user) {
        _context.Users.Add(user);
        await _context.SaveChangesAsync();
        return Ok(user);
    }

    [HttpPost("login")]
    public IActionResult Login(User dto) {
        var user = _context.Users.SingleOrDefault(u => u.Email == dto.Email && u.Password == dto.Password);
        if (user == null) return Unauthorized();
        var token = GenerateJwt(user);
        return Ok(new { Token = token });
    }

    private string GenerateJwt(User user) {
        var key = Encoding.ASCII.GetBytes(_config["Jwt:Key"]);
        var token = new JwtSecurityToken(
            issuer: _config["Jwt:Issuer"],
            audience: _config["Jwt:Audience"],
            expires: DateTime.UtcNow.AddHours(1),
            signingCredentials: new SigningCredentials(new SymmetricSecurityKey(key), SecurityAlgorithms.HmacSha256)
        );
        return new JwtSecurityTokenHandler().WriteToken(token);
    }
}


ProductService

Models/Product.cs


    public class Product { public int Id { get; set; } public string Name { get; set; } public decimal Price { get; set; } }


Controllers/ProductController.cs


    [ApiController]
[Route("api/product")]
public class ProductController : ControllerBase {
    private readonly ProductDbContext _context;
    public ProductController(ProductDbContext context) { _context = context; }

    [HttpGet] public async Task> Get() => await _context.Products.ToListAsync();
    [HttpPost] public async Task Post(Product p) { _context.Products.Add(p); await _context.SaveChangesAsync(); return p; }
    [HttpPut("{id}")] public async Task Put(int id, Product p) { _context.Entry(p).State = EntityState.Modified; await _context.SaveChangesAsync(); return NoContent(); }
    [HttpDelete("{id}")] public async Task Delete(int id) { var p = await _context.Products.FindAsync(id); if (p == null) return NotFound(); _context.Products.Remove(p); await _context.SaveChangesAsync(); return NoContent(); }
}


OrderService

• Minimal CRUD endpoints similar to ProductService

• Can use HttpClient to validate product IDs from ProductService
