Making a sign-in page responsive

First Last

4y1.1k.NET

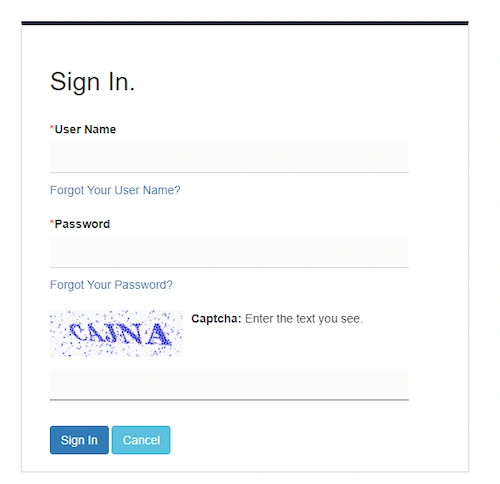

I have an ASP.Net web page - a sign in page.

It has a drop down on ' user name' that appears when clicked on. These values were pre-saved by the browser and it populates it with them.

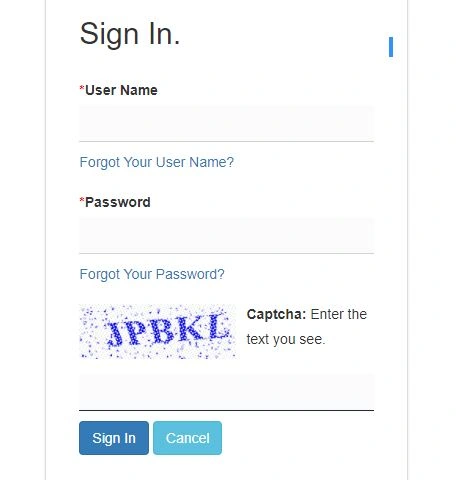

While testing for being responsive, when I make the page smaller in my browser (Chrome) to simulate the size of a smart phone, it no longer allows me to click on the 'user name' box and a blue line appears on the right side.

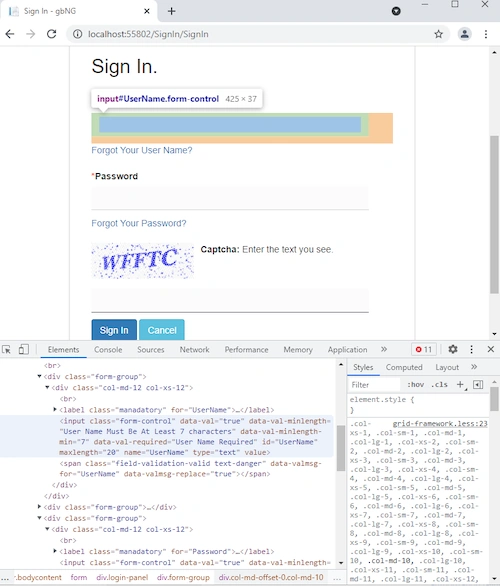

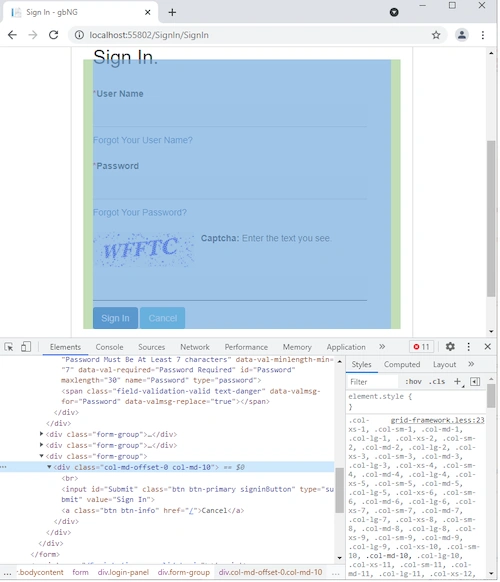

I right click on the input for the user name and select 'inspect' and it it puts me on the Sign In button.

If increase the size of the browser and right click on the input for the user name, it now places me on the correct element.

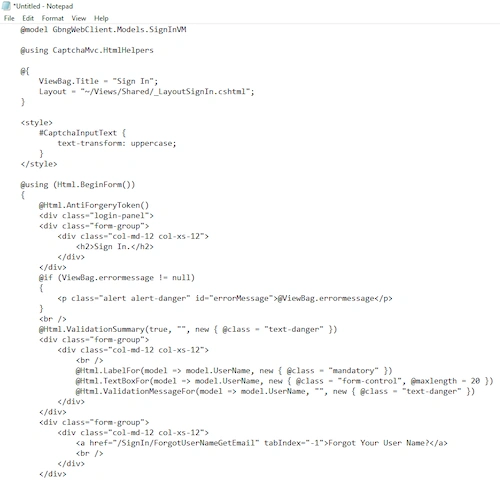

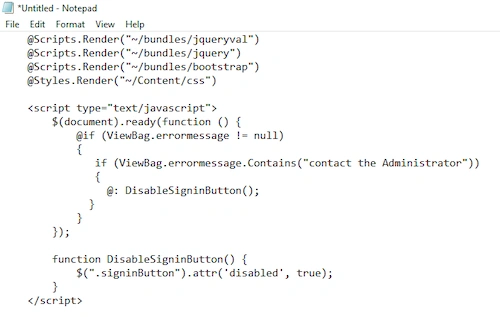

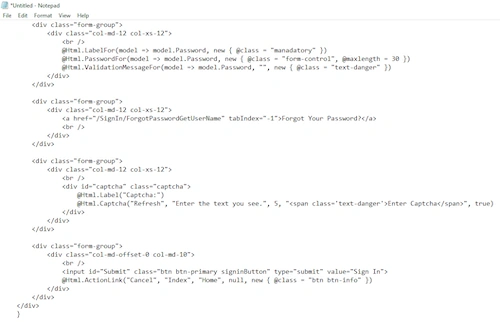

Here is the page code. (Note it would not allow me ti insert code snippet so I had to upload screen shots):

12 Replies

Know the answer? Post it — somebody with the same question will find it here.

First Last4y ago
Sachin..

My sign in page that I have shown above includes a partial page (_LayoutSignIn.cshtml) that contains the 'viewport'.

However, it is not coded as you suggest. However, I did code as you suggested and the results are the same.
I still can click in the 'user name' at 975 pixels wide and more but not any less.
+1
Sachin Singh4y ago
add following lines to the header
"viewport" content="width=device-width">
"viewport" content="width=device-width, initial-scale=1, minimum-scale=1" />
+1
Srinivasan Ramamoorthi4y ago
Did you implement all 4 steps in the article?
+1
First Last4y ago
I added these media queries. Thye work but no change to the problem.

@media only screen and (min-width : 768px) and (max-width : 980px) {

.login-panel {

width: 70%;

}

.login-panel input[type="text"], .login-panel input[type="password"] {

width: 60%;

}

.login-panel .captcha input[type="text"] {

width: 60%;

}

}

@media only screen and (min-width : 569px) and (max-width : 767px) {

.login-panel {

width: 50%;

}

.login-panel input[type="text"], .login-panel input[type="password"] {

width: 40%;

}

.login-panel .captcha input[type="text"] {

width: 40%;

}

}

@media only screen and (min-width : 240px) and (max-width : 568px) {

.login-panel {

width: 40%;

}

.login-panel input[type="text"], .login-panel input[type="password"] {

width: 30%;

}

.login-panel .captcha input[type="text"] {

width: 30%;

}

}
+1
Srinivasan Ramamoorthi4y ago
ok, then let's check if the second step (Use CSS Media Queries) mentioned in the article has been taken care
+1
First Last4y ago
Here is the SignIn.css. (Note: the SignIn.chstml references the login-panel CSS class).

.mybrand {

font-size: x-large;

font-weight: bold;

color: blue;

}

* {

border: 0;

text-decoration: none;

padding: 0;

margin: 0px;

}

.login-panel {

margin: 5em auto 0;

width: 80%;

max-width: 530px;

background: #ffffff;

overflow: hidden;

padding: 30px 18px 20px;

border: 1px solid #ddd;

border-top: 5px solid #1C2B36;

box-shadow: 0 0 3px rgba(0, 0, 0, 0.1);

}

.login-panel input[type="text"], .login-panel input[type="password"] {

height: 37px;

color: #333;

background-color: #fbfbfb;

background-image: none;

border: 0;

border-bottom: 1px solid #fff;

border-radius: 0;

margin-bottom: 10px;

width: 100%;

padding: 6px 12px;

font-size: 14px;

line-height: 1.42857143;

-webkit-box-shadow: inset 0 1px 1px rgba(0,0,0,.075);

box-shadow: inset 0 1px 1px rgba(0,0,0,.075);

-webkit-transition: border-color ease-in-out .15s,-webkit-box-shadow ease-in-out .15s;

-o-transition: border-color ease-in-out .15s,box-shadow ease-in-out .15s;

box-shadow: none;

transition: border-color ease-in-out .15s,box-shadow ease-in-out .15s;

border-bottom: 1px solid #d2d2d2

}

.login-panel .captcha input[type="text"] {

height: 37px;

color: #333;

background-color: #fbfbfb;

background-image: none;

border: 0;

border-bottom: 1px solid #fff;

border-radius: 0;

margin-bottom: 10px;

width: 100%;

padding: 6px 12px;

font-size: 14px;

line-height: 1.42857143;

-webkit-box-shadow: inset 0 1px 1px rgba(0,0,0,.075);

box-shadow: inset 0 1px 1px rgba(0,0,0,.075);

-webkit-transition: border-color ease-in-out .15s,-webkit-box-shadow ease-in-out .15s;

-o-transition: border-color ease-in-out .15s,box-shadow ease-in-out .15s;

box-shadow: none;

transition: border-color ease-in-out .15s,box-shadow ease-in-out .15s;

border-bottom: 1px solid #1C2B36

}

.login-panel .captcha img {

float: left;

margin-right: 10px;

margin-bottom: 15px;

max-height: 55px;

}

.login-panel .captcha a {

display: block;

color: #f1643f;

}

.login-panel .captcha {

font-weight: 500;

color: #333;

}

.login-panel .captcha br {

display: none

}

.captcha input[type="text"] {

background: #fff none repeat scroll 0 0;

border: 1px solid #D2DEE8;

border-radius: 0 !important;

box-shadow: 0 0;

font-size: 0.96em;

color: #286AA4;

display: block;

width: 100%;

height: 34px;

padding: 6px 12px;

}
+1
First Last4y ago

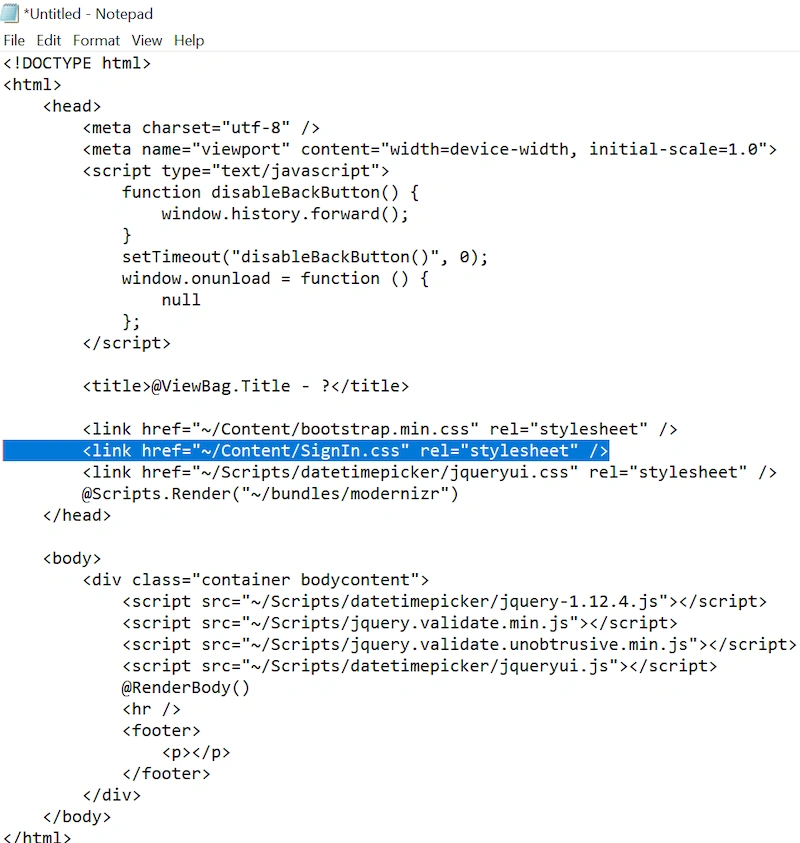

My sign in page that I have shown above includes a partial page (_LayoutSignIn.cshtml) that contains the 'viewport' and brings in a custom SignIn.css file. This is that _LayoutSignIn.cshtml code:

+1
Srinivasan Ramamoorthi4y ago
Try setting viewport meta tag in the html file

+1
First Last4y ago
No, I am not. It is ok until the screen width drops below 975 pixels wide.
+1
Srinivasan Ramamoorthi4y ago
Have you enabled your application to view in mobile device?
If not follow the steps mentioned in this article

https://www.codeproject.com/Articles/472005/Techniques-for-Mobile-friendly-ASP-NET-MVC-4-0-web
+1
First Last4y ago
Srinivasan - I am just using the Bootstrap CSS as well as custom CSS for the sign in. See the code snippets.
+1
Srinivasan Ramamoorthi4y ago
How are you defining the controls width? it should be in percentage instead of pixels.
+1
