ListView item as a progress bar

Hello guys,

I was wondering if someone can maybe help me with the following intent:

I created an app which simply displays a table. It shows a table head and beyond that a list view which contains several items.
Is it possible, that if one clicks on one of these items, a progress bar is shown which loads smoothely in a certain time interval (lets say 30 seconds) from left to right?

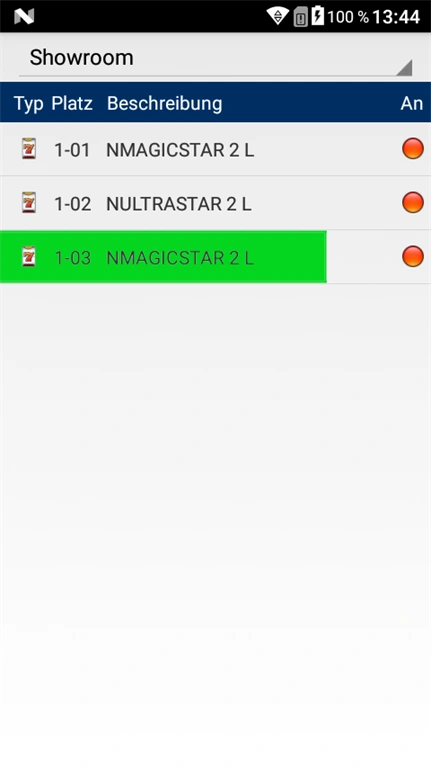

Please see my screenshot below, maybe it's easier to understand what I am trying to do:

Finally, I don't know if it helps, but let me attach some code as well. I shortened it a little, if something is missing for understanding (like the list class) or if I removed to much, please let me know:

public class TableActivity : Activity
{
ListView lv;
ListAdapter adapter = null;
protected override void OnCreate(Bundle bundle)
{
base.OnCreate(bundle);
//...
lv = FindViewById(Resource.Id.geraeteListView);
adapter = new ListAdapter(this, Resource.Layout.List, geraeteliste.CurrentGeraeteliste, Intent.GetStringExtra("ServerIP"))
{
parentActivity = this
};
lv.Adapter = adapter;
}
private async void OnItemClick(object sender, AdapterView.ItemClickEventArgs e)
{
if (geraeteliste.CurrentGeraeteliste[e.Position].bespielt == "J") return;
//…
await Task.Delay(0);
}
}

public class ListAdapter : ArrayAdapter
{
//...
public override View GetView(int position, View convertView, ViewGroup parent)
{
View v = convertView;
if (v == null)
{
LayoutInflater inflater = (LayoutInflater)Context.GetSystemService(Context.LayoutInflaterService);
v = inflater.Inflate(Resource.Layout.List, parent, false);
}
//...
v.FindViewById(Resource.Id.typeImageView).SetImageResource(Resource.Drawable.Icon);
v.FindViewById(Resource.Id.numberTextView).Text = Geraetelist[position].geraeteplatz;
v.FindViewById(Resource.Id.descriptionTextView).Text = Geraetelist[position].geraeteinformation;
ImageView iv = v.FindViewById(Resource.Id.bspImageView);
iv.SetImageResource(Geraetelist[position].bespielt == "N" ? Resource.Drawable.greenPoint : Resource.Drawable.redPoint);
//…
return v;
}
}

Can anyone maybe give me a short hint or something? How can I implement such a progress bar for every item on click?^^ Would be really happy for every helping effort.

Thanks in advance for every answer,

Best regards

2 Replies

Know the answer? Post it — somebody with the same question will find it here.

Sam Mettenmeyer6y ago
Hello @pritaeas and thank you for your answer.

Unfortunately no, as I am only a student trainee and lacking a bit of knowledge. :( I found this repo myself, but unfortunately it is written in Java and made with Android Studio. So I installed Android Studio and tried to get it run to maybe be able to translate it into C#, but I even couldn't run the project once importet into Android Studio, as the run button was grey. :( And adding a virtual device with appropriate api-version (28) had no effect as well, I wasn't able to start the app nevertheless what I was doing.

That was why I was posting this into C# forum to maybe get some help or something like a C#-specific solution.^^
+1
Guest User6y ago
Perhaps this repo may help:

https://github.com/mdkess/ProgressBarListView
-1
