Insert / Update Record

Hello Ramco,

To synchronize data between a SQL Server and a MySQL Server so that when a record is inserted or updated in SQL Server, the same change is reflected in MySQL, you can use one of the following approaches:

1. Using Triggers and Linked Server (SQL Server to MySQL)

You can create triggers in SQL Server that fire on INSERT and UPDATE operations. These triggers will then insert/update the corresponding records in the MySQL database. To achieve this, you need to set up a Linked Server in SQL Server to connect to the MySQL database.

Steps:
    Set Up Linked Server in SQL Server:
        Use the ODBC Driver for MySQL to create a linked server in SQL Server.

    Create Triggers in SQL Server:
        Create AFTER INSERT and AFTER UPDATE triggers on the SQL Server table.
        Use the linked server to insert/update the corresponding records in the MySQL table.

-- Create a linked server to MySQL (run this once)
EXEC sp_addlinkedserver
    @server = 'MySQLServer', -- Name of the linked server
    @srvproduct = 'MySQL',
    @provider = 'MSDASQL',
    @datasrc = 'MySQL_DSN'; -- Data Source Name (DSN) for MySQL

-- Create a trigger for INSERT
CREATE TRIGGER trg_AfterInsert
ON YourTable
AFTER INSERT
AS
BEGIN
    -- Insert the new record into MySQL
    INSERT INTO OPENQUERY(MySQLServer, 'SELECT * FROM YourMySQLTable')
    SELECT Column1, Column2, Column3
    FROM inserted;
END;

-- Create a trigger for UPDATE
CREATE TRIGGER trg_AfterUpdate
ON YourTable
AFTER UPDATE
AS
BEGIN
    -- Update the corresponding record in MySQL
    UPDATE MySQLServer.YourMySQLDatabase.YourMySQLTable
    SET Column1 = i.Column1,
        Column2 = i.Column2,
        Column3 = i.Column3
    FROM inserted i
    WHERE YourMySQLTable.PrimaryKeyColumn = i.PrimaryKeyColumn;
END;

2. Using Change Data Capture (CDC) and ETL Tools
If you want a more robust and scalable solution, you can use Change Data Capture (CDC) in SQL Server to track changes and then use an ETL (Extract, Transform, Load) tool like SSIS (SQL Server Integration Services) or Talend to synchronize the changes with MySQL.
Steps:
    Enable CDC in SQL Server:
        Enable CDC on the table you want to track changes for.
    Create an ETL Package:
        Use SSIS or another ETL tool to read changes from the CDC tables and apply them to the MySQL database.
    Schedule the ETL Package:
        Schedule the ETL package to run at regular intervals to keep the MySQL database in sync.

EXEC sys.sp_cdc_enable_table
    @source_schema = 'dbo',
    @source_name = 'YourTable',
    @role_name = NULL;

3. Using a Middleware Application

You can write a custom application (e.g., in C#, Python, or Java) that listens for changes in the SQL Server database and applies them to the MySQL database.
Steps:
    Poll for Changes:
        Use a timestamp or version column in your SQL Server table to detect changes.
        Write a script or application that periodically checks for new or updated records.
    Apply Changes to MySQL:
        Use a MySQL connector (e.g., mysql-connector-python for Python or MySql.Data for C#) to insert/update records in MySQL.

Here’s an example of how you can implement a Middleware Application in C#

using System;
using System.Data;
using MySql.Data.MySqlClient;
using System.Data.SqlClient;

class Program
{
    static void Main(string[] args)
    {
        // SQL Server connection string
        string sqlServerConnectionString = "Server=your_sql_server;Database=your_db;User Id=your_user;Password=your_password;";

        // MySQL connection string
        string mySqlConnectionString = "Server=your_mysql_server;Database=your_db;User Id=your_user;Password=your_password;";

        // Timestamp of the last sync (initially set to a very old date)
        DateTime lastSyncTime = DateTime.MinValue;

        while (true)
        {
            try
            {
                // Fetch new or updated records from SQL Server
                using (SqlConnection sqlServerConn = new SqlConnection(sqlServerConnectionString))
                {
                    sqlServerConn.Open();

                    // Query to fetch new or updated records
                    string sqlQuery = @"
                        SELECT Id, Column1, Column2, Column3, LastUpdated
                        FROM YourTable
                        WHERE LastUpdated > @LastSyncTime";

                    using (SqlCommand sqlCmd = new SqlCommand(sqlQuery, sqlServerConn))
                    {
                        sqlCmd.Parameters.AddWithValue("@LastSyncTime", lastSyncTime);

                        using (SqlDataReader reader = sqlCmd.ExecuteReader())
                        {
                            // Connect to MySQL
                            using (MySqlConnection mySqlConn = new MySqlConnection(mySqlConnectionString))
                            {
                                mySqlConn.Open();

                                while (reader.Read())
                                {
                                    // Extract data from SQL Server
                                    int id = reader.GetInt32(0);
                                    string column1 = reader.GetString(1);
                                    string column2 = reader.GetString(2);
                                    string column3 = reader.GetString(3);
                                    DateTime lastUpdated = reader.GetDateTime(4);

                                    // Insert or update the record in MySQL
                                    string mySqlQuery = @"
                                        INSERT INTO YourMySQLTable (Id, Column1, Column2, Column3, LastUpdated)
                                        VALUES (@Id, @Column1, @Column2, @Column3, @LastUpdated)
                                        ON DUPLICATE KEY UPDATE
                                        Column1 = @Column1,
                                        Column2 = @Column2,
                                        Column3 = @Column3,
                                        LastUpdated = @LastUpdated;";

                                    using (MySqlCommand mySqlCmd = new MySqlCommand(mySqlQuery, mySqlConn))
                                    {
                                        mySqlCmd.Parameters.AddWithValue("@Id", id);
                                        mySqlCmd.Parameters.AddWithValue("@Column1", column1);
                                        mySqlCmd.Parameters.AddWithValue("@Column2", column2);
                                        mySqlCmd.Parameters.AddWithValue("@Column3", column3);
                                        mySqlCmd.Parameters.AddWithValue("@LastUpdated", lastUpdated);

                                        mySqlCmd.ExecuteNonQuery();
                                    }

                                    // Update the last sync time
                                    if (lastUpdated > lastSyncTime)
                                    {
                                        lastSyncTime = lastUpdated;
                                    }
                                }
                            }
                        }
                    }
                }

                Console.WriteLine("Sync completed at: " + DateTime.Now);
            }
            catch (Exception ex)
            {
                Console.WriteLine("Error during sync: " + ex.Message);
            }

            // Wait for some time before the next sync (e.g., 1 minute)
            System.Threading.Thread.Sleep(60000);
        }
    }
}

4. Using Replication

If both databases are on the same network, you can set up replication between SQL Server and MySQL. However, this is more complex and requires additional tools like SymmetricDS or Tungsten Replicator.

Which Approach to Use?
    Triggers and Linked Server: Simple and quick to implement but may not scale well for large datasets or high-frequency updates.
    CDC and ETL Tools: Scalable and robust but requires more setup and maintenance.
    Middleware Application: Flexible and customizable but requires development effort.
    Replication: Best for real-time synchronization but complex to set up.

Good Luck!

We may need to know how you are invoking the script to insert records into SQL Database. if it is through a Web API, i would suggest to push the same changes into My SQL through the API.

 Part -2

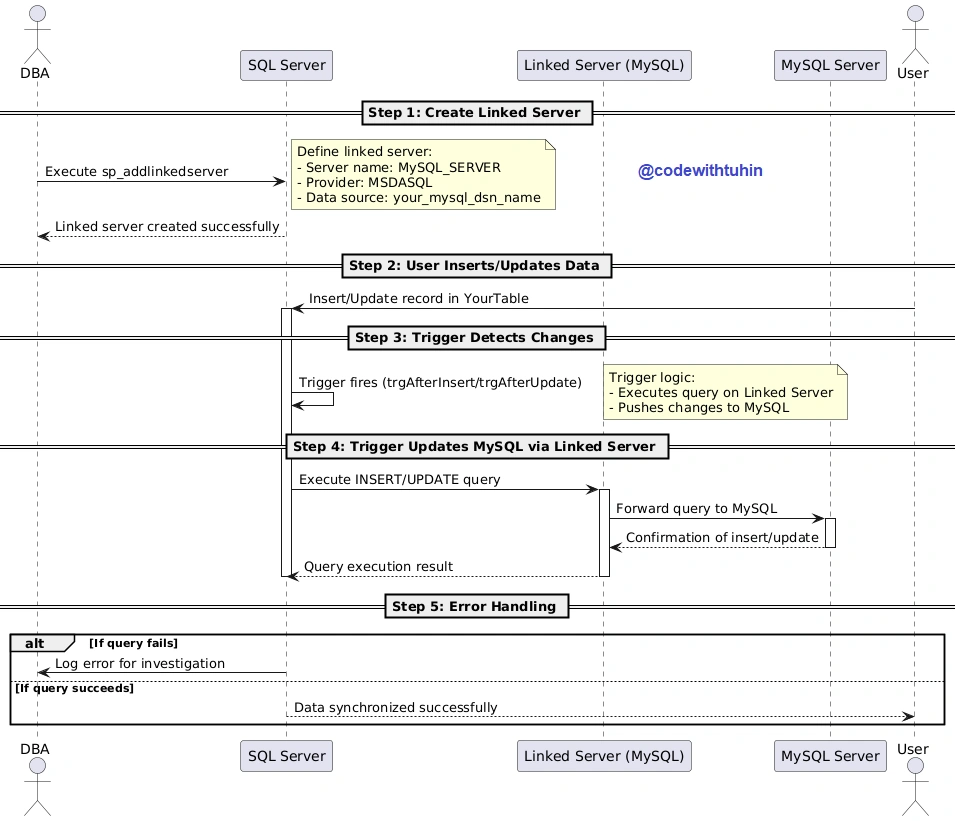

Using Linked Servers (SQL Server to MySQL)

1. Create Linked Server in SQL Server

EXEC sp_addlinkedserver
  @server = 'MySQL_SERVER',
  @srvproduct = 'MySQL',
  @provider = 'MSDASQL',
  @datasrc = 'your_mysql_dsn_name'

Modify Triggers to Directly Update MySQL

CREATE TRIGGER trgAfterInsert
ON YourTable
AFTER INSERT
AS
BEGIN
    EXEC('
        INSERT INTO MySQL_SERVER.your_db.your_table
        SELECT * FROM inserted
    ') AT MySQL_SERVER
END;

Linked servers can be fragile for high-frequency updates.

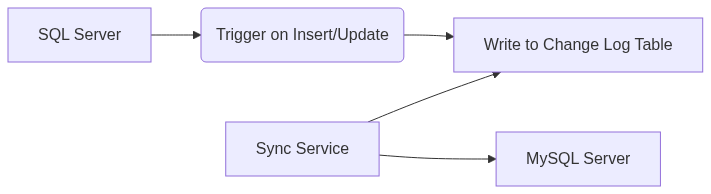

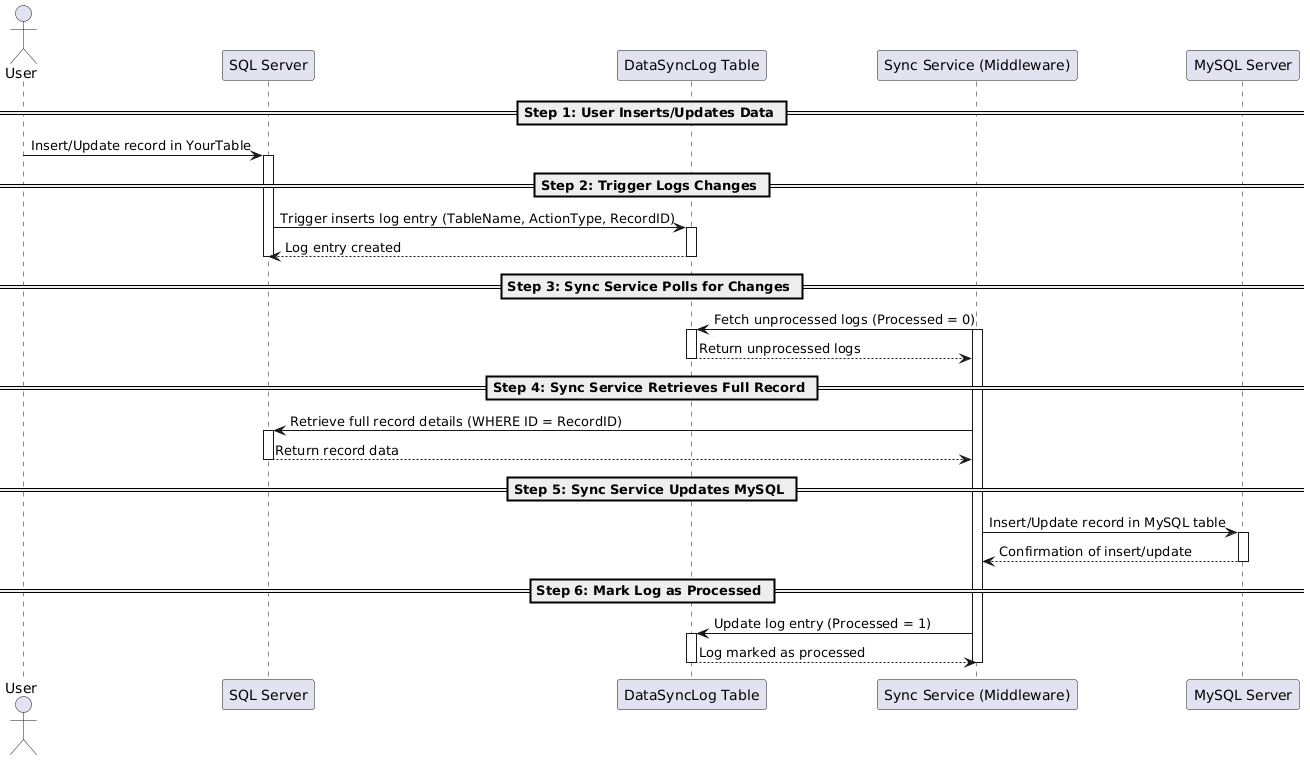

To  provide solution to synchronize data between your SQL Database (e.g., SQL Server) and MySQL Server automatically when records are inserted/updated: We'll use SQL triggers to detect changes and a reliable middleware/service to handle synchronization.

Create a Change Log Table in SQL Server

CREATE TABLE DataSyncLog (
    LogID INT IDENTITY(1,1) PRIMARY KEY,
    TableName NVARCHAR(100),
    ActionType CHAR(1), -- 'I' or 'U'
    RecordID INT,
    Processed BIT DEFAULT 0,
    CreatedDate DATETIME DEFAULT GETDATE()
);

Create Triggers on Your Target Table

-- For INSERTs
CREATE TRIGGER trgAfterInsert
ON YourTable
AFTER INSERT
AS
BEGIN
    INSERT INTO DataSyncLog (TableName, ActionType, RecordID)
    SELECT 'YourTable', 'I', inserted.ID FROM inserted
END;

-- For UPDATEs
CREATE TRIGGER trgAfterUpdate
ON YourTable
AFTER UPDATE
AS
BEGIN
    INSERT INTO DataSyncLog (TableName, ActionType, RecordID)
    SELECT 'YourTable', 'U', inserted.ID FROM inserted
END;

Create Sync Service (Python Example)

import pyodbc
import mysql.connector
from time import sleep

def sync_data():
    # SQL Server Connection
    sql_conn = pyodbc.connect('DRIVER={ODBC Driver 17 for SQL Server};'
                              'SERVER=your_sql_server;'
                              'DATABASE=your_db;'
                              'UID=user;PWD=password')

    # MySQL Connection
    mysql_conn = mysql.connector.connect(
        host="your_mysql_host",
        user="user",
        password="password",
        database="your_db"
    )

    while True:
        # Get unprocessed changes
        cursor = sql_conn.cursor()
        cursor.execute("""
            SELECT TOP 100 LogID, TableName, ActionType, RecordID
            FROM DataSyncLog
            WHERE Processed = 0
            ORDER BY LogID
        """)

        for row in cursor.fetchall():
            log_id, table, action, record_id = row

            # Get full record
            record_cursor = sql_conn.cursor()
            record_cursor.execute(f"""
                SELECT * FROM {table} WHERE ID = ?
            """, record_id)
            record = record_cursor.fetchone()

            # Sync to MySQL
            try:
                mysql_cursor = mysql_conn.cursor()

                if action == 'I':
                    # Build INSERT query
                    columns = ', '.join([col[0] for col in record_cursor.description])
                    values = ', '.join(['%s'] * len(record))
                    query = f"INSERT INTO {table} ({columns}) VALUES ({values})"

                elif action == 'U':
                    # Build UPDATE query
                    set_clause = ', '.join(
                        [f"{col[0]} = %s" for col in record_cursor.description])
                    query = f"UPDATE {table} SET {set_clause} WHERE ID = %s"

                mysql_cursor.execute(query, record)
                mysql_conn.commit()

                # Mark as processed
                sql_conn.execute("""
                    UPDATE DataSyncLog
                    SET Processed = 1
                    WHERE LogID = ?
                """, log_id)
                sql_conn.commit()

            except Exception as e:
                print(f"Error syncing LogID {log_id}: {str(e)}")

        sleep(5)  # Check every 5 seconds

if __name__ == "__main__":
    sync_data()

Hi there! It sounds like you're looking to achieve database replication between two separate servers - one SQL Server and the other MySQL Server. This can be accomplished by setting up a process to synchronize data between the two databases whenever a record is inserted or updated in one of them.

Here's a high-level overview of how you can approach this:

1. Database Replication Strategies:

- SQL Server Replication: SQL Server offers several replication options like Transactional Replication, Merge Replication, and Snapshot Replication. You can configure replication to publish changes from SQL Server to MySQL Server.

- Custom Scripts: You can write custom scripts or use tools to monitor changes in the SQL Server database and propagate those changes to the MySQL Server. This approach provides more flexibility but requires more development effort.

2. Setting up the Data Sync Process:

- Identify the tables and columns that need to be replicated.

- Establish a connection from your application or a middleware service that can listen to database changes.

- Implement logic to capture insert/update operations on the SQL Server database.

- Map these operations to corresponding operations on the MySQL Server.

3. Handling Inserts and Updates:

- For inserts, you need to ensure that new records are added to the MySQL Server.

- For updates, you will need to update existing records on the MySQL Server.

4. Error Handling and Conflict Resolution:

- Implement mechanisms to handle conflicts that may arise due to network issues or differences in data between the two servers.

- Have proper error handling in place to address any synchronization failures.

Examples of tools that can help in this process are Apache Kafka for real-time data streaming, Debezium for change data capture, or custom scripts using programming languages like Python, Node.js, or Java.

By combining these strategies and tools, you can establish a robust data synchronization process between your SQL Server and MySQL Server. Let me know if you need further clarification or more specific guidance on any part of this process!
