Bar code instead text in column c#

Itextsharp

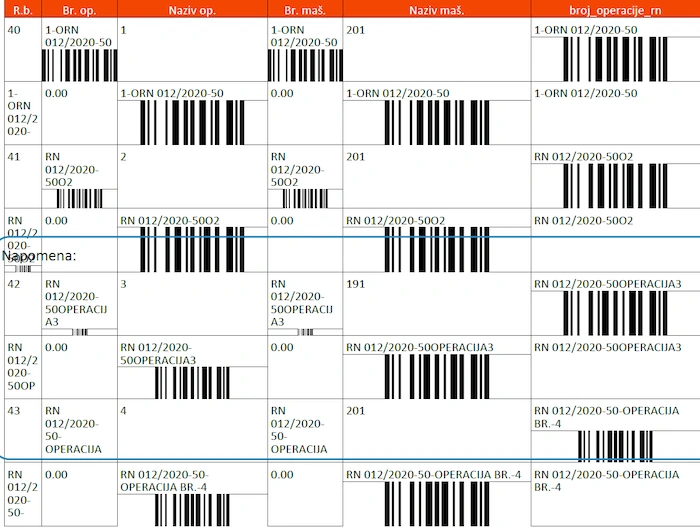

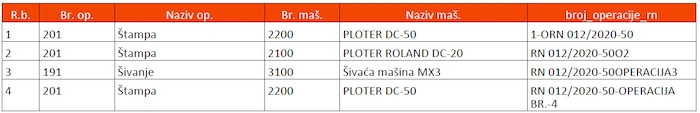

Need in last column instead text need to be bar code 128 from that text

Or can be image to be paste across text in column

Bar code c# code:

//Adding DataRow
foreach (DataGridViewRow row in OperacijeDataGridView.Rows)
{
foreach (DataGridViewCell cell in row.Cells)
{
PdfPCell cell2 = new PdfPCell(new Phrase(cell.Value.ToString(), calibri));
cell2.HorizontalAlignment = Element.ALIGN_LEFT;
Barcode128 code128 = new Barcode128();
code128.CodeType = Barcode.CODE128_RAW;
code128.ChecksumText = true;
code128.GenerateChecksum = true;
code128.Code = Barcode128.GetRawText(row.Cells[1].Value.ToString(), false, Barcode128.Barcode128CodeSet.AUTO);
System.Drawing.Bitmap bm = new System.Drawing.Bitmap(code128.CreateDrawingImage(System.Drawing.Color.Black, System.Drawing.Color.White));
iTextSharp.text.Image barCode = iTextSharp.text.Image.GetInstance(bm, System.Drawing.Imaging.ImageFormat.Png);
//PdfPCell pdfCell = new PdfPCell();
PdfPTable tmpTable = new PdfPTable(1);
tmpTable.WidthPercentage = 100;
PdfPCell tmpCell = new PdfPCell(barCode);
tmpTable.AddCell(new Paragraph(row.Cells[12].Value.ToString().ToUpper(), calibri));
barCode.ScaleAbsolute(70, 30); //100x40
tmpCell.FixedHeight = 40;//60
tmpCell.HorizontalAlignment = Element.ALIGN_CENTER;
tmpCell.VerticalAlignment = Element.ALIGN_MIDDLE;
tmpCell.BorderWidth = 0;
tmpTable.AddCell(tmpCell);
tmpTable.DefaultCell.BorderWidth = 0;
tmpTable.DefaultCell.VerticalAlignment = Element.ALIGN_TOP;
tmpTable.DefaultCell.HorizontalAlignment = Element.ALIGN_CENTER;
//tmpTable.AddCell(new Paragraph(row.Cells[4].Value.ToString().ToUpper(), calibri6));
//tmpTable.AddCell(new Paragraph(row.Cells[12].Value.ToString().ToUpper(), calibri));
// pdfCell.AddElement(tmpTable);
tmpCell.AddElement(tmpTable);
pdfTable.AddCell(tmpCell);
pdfTable.AddCell(cell2);
}
}

2 Replies

Know the answer? Post it — somebody with the same question will find it here.

Leon D6y ago
You can also use Free Spire.PDF to create table and add barcode to table.
https://www.e-iceblue.com/Tutorials/Spire.PDF/Spire.PDF-Program-Guide/NET-PDF-Table-How-to-Draw-PDF-Table-in-C-VB.NET.html

https://www.e-iceblue.com/Tutorials/Spire.PDF/Spire.PDF-Program-Guide/PDF-Barcode-Draw-PDF-Barcode-in-C-VB.NET.html
0
Goran Bibic6y ago
Add bar code in every cell...need to add just in last cell0 or cell number [12]

0
