Introduction:

In an object oriented programming, a developer always get confusion about nested interfaces and its implementation. I would like to give a demonstration on this concept with sample example.

Interface with in an Interface like,

  1. publicinterfaceIactions
  2. {
  3. IdataObjectsGetDetails();
  4. }
Where IdataObjects is,
  1. publicinterfaceIdataObjects
  2. {
  3. intempId
  4. {
  5. get;
  6. set;
  7. }
  8. stringempName
  9. {
  10. get;
  11. set;
  12. }
  13. stringempAddress
  14. {
  15. get;
  16. set;
  17. }
  18. }

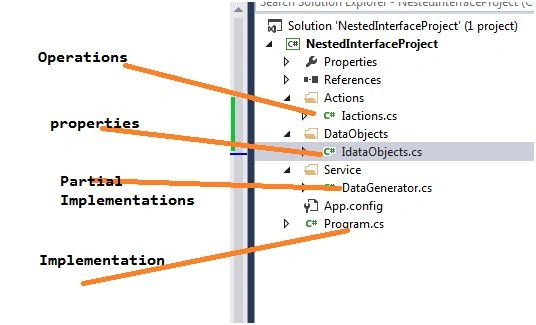

Find the below screen for solution structure Design,

DESIGN

Implementation:

DataGenerator returns object, whichalways has Data Transfer type objects with help of IdataObjects Interfaces. It is the finest implementation for the nested Interfaces.
  1. classProgram: Iactions
  2. {
  3. publicDataObjects.IdataObjectsGetDetails()
  4. {
  5. returnnewDataGenerator
  6. {
  7. empId = 01,
  8. empName = "maruthi",
  9. empAddress = "Hyderabad"
  10. };
  11. }
You can call it with common scenarios.
  1. staticvoid Main(string[] args)
  2. {
  3. ProgramobjProgram = newProgram();
  4. varobjData = objProgram.GetDetails();
  5. Console.WriteLine(objData.empId.ToString());
  6. Console.WriteLine(objData.empName);
  7. Console.WriteLine(objData.empAddress);
  8. Console.Read();
  9. }

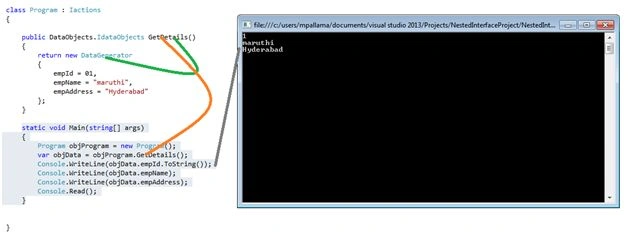

Output:

output
