Step 1

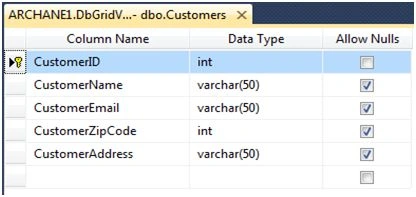

Create database and table named Customers using definition as shown in the below figure



Step 2

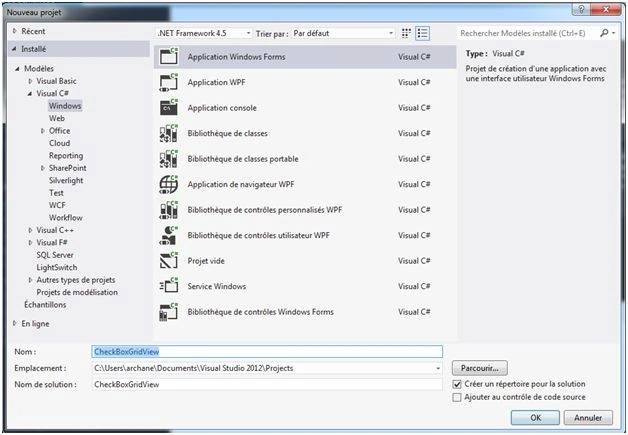

Now, using Visual Studio, we create application windows Forms named CheckBoxGridView, then click on OK. You can see the following figure.



Step 3

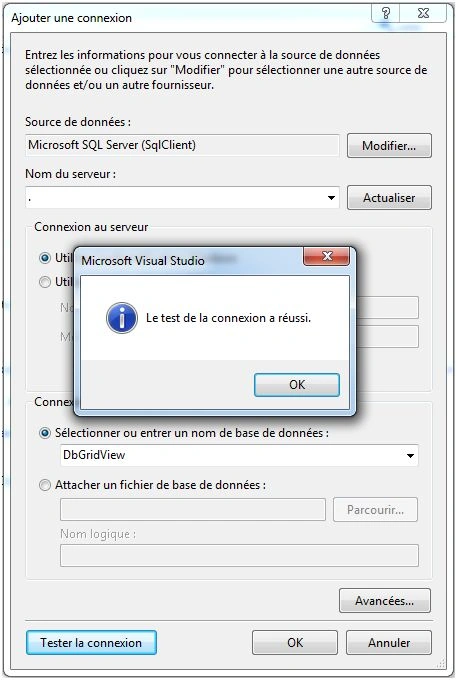

At this stage, we need to add connection to database. You shouldbe selecting Server Name, then the Database Name (in this case: DbGridView) that will be used in our application.

*DbGridView

Step 4

Now, Add DataGridView and button controls to the form by selecting them from Toolbox as shown in the following figure,


Step 5

Adding source code for DataGridView.

  1. using System;
  2. usingSystem.Collections.Generic;
  3. usingSystem.ComponentModel;
  4. usingSystem.Data;
  5. usingSystem.Data.SqlClient;
  6. usingSystem.Drawing;
  7. usingSystem.Linq;
  8. usingSystem.Text;
  9. usingSystem.Threading.Tasks;
  10. usingSystem.Windows.Forms;
  11. namespace CheckBoxGridView
  12. {
  13. publicpartialclassForm1: Form
  14. {
  15. public Form1()
  16. {
  17. InitializeComponent();
  18. }
  19. privateSqlConnectionconx = newSqlConnection("Data Source=.;Initial Catalog=DbGridView;Integrated Security=True"); // Connection String
  20. privateSqlDataAdapteradp = null;
  21. privateDataSet ds = newDataSet();
  22. // loading data from "Customers" Table to DataGridView
  23. privatevoidLoadData()
  24. {
  25. AddCheckBoxForDataGridView();
  26. adp = newSqlDataAdapter("SELECT * FROM Customers", conx);
  27. adp.Fill(ds);
  28. dataGridView1.DataSource = ds.Tables[0];
  29. }
  30. // AddCheckBoxForDataGridView Function allow to add checkbox in DataGridView
  31. privatevoidAddCheckBoxForDataGridView()
  32. {
  33. DataGridViewCheckBoxColumn col = newDataGridViewCheckBoxColumn()
  34. {
  35. Name = "Select Rows to be deleted"
  36. };
  37. dataGridView1.Columns.Add(col);
  38. }
  39. privatevoid Form1_Load(object sender, EventArgs e)
  40. {
  41. LoadData();
  42. }
  43. privatevoidDeleteRowFromGrid(int id)
  44. {
  45. try
  46. {
  47. conx.Open(); //Open Connection
  48. SqlCommandcmd = newSqlCommand("DELETE FROM Customers WHERE CustomerID = '" + id + "'", conx); //Here, we specify query with {Id} parameter which allow us to delete rows from Db.
  49. int Result = cmd.ExecuteNonQuery(); // Execute Query for deleting all rows selected from DataGridView
  50. conx.Close(); // Close Connection
  51. }
  52. catch (Exception ex)
  53. {
  54. MessageBox.Show(ex.Message);
  55. }
  56. finally
  57. {
  58. conx.Close();
  59. }
  60. }
  61. //Delete Button
  62. privatevoid button1_Click(object sender, EventArgs e)
  63. {
  64. DataGridViewRow row = newDataGridViewRow();
  65. for (inti = 0; i < dataGridView1.Rows.Count; i++)
  66. {
  67. row = dataGridView1.Rows[i];
  68. if (Convert.ToBoolean(row.Cells[0].Value))
  69. {
  70. int id = Convert.ToInt16(row.Cells[1].Value);
  71. DeleteRowFromGrid(id);
  72. dataGridView1.Rows.Remove(row);
  73. i--;
  74. }
  75. }
  76. }
  77. }
  78. }
Step 6

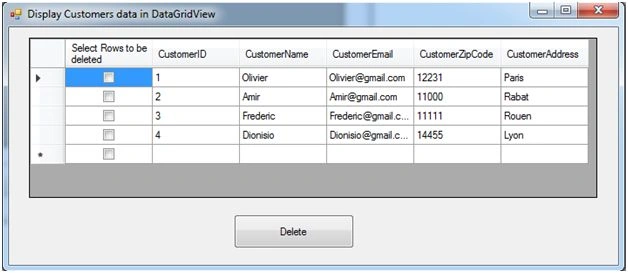

Run Application.
