Continuing with the previous article, today, I’m sharing a simple example using DBContext Connect Database in ASP.NET MVC 5.
You can see my previous blogs below

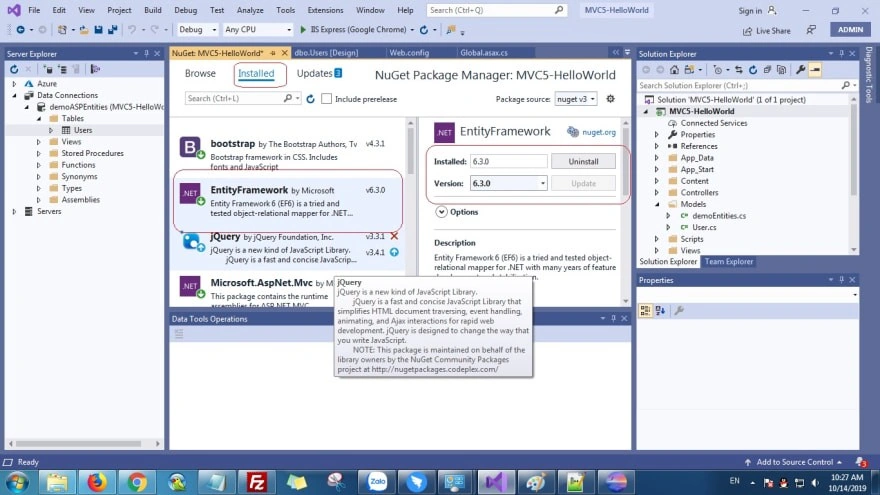

Installing Entity Framework 6.x
Tools->Nuget Package Manager
Entity Framework
It helps us to map relationship object in the database used in ADO.NET
Okay, we need to create a database in App_Data directory, so you right click App_Data->New Item
After that, you open Web.config in the project and add the below code to connect database.
  1. <connectionStrings>
  2. <add name="demoASPEntities" connectionString="Data Source=(LocalDb)\MSSQLLocalDB;Initial Catalog=demomvc5;Integrated Security=SSPI;AttachDBFilename=|DataDirectory|\demomvc5.mdf" providerName="System.Data.SqlClient" />
  3. </connectionStrings>
Create models in ASP.Net MVC 5

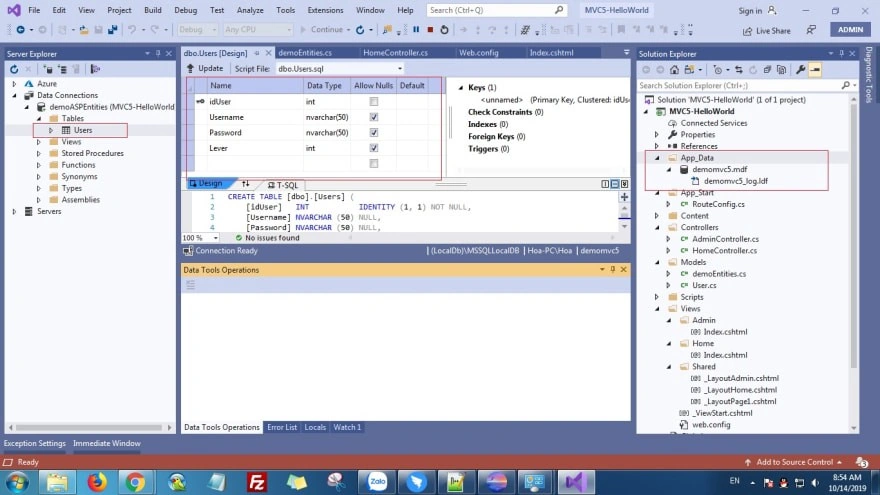

In the picture above, we create a User table, so I will build the entity model for the User.
Click Models-> add class User.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.ComponentModel.DataAnnotations;
  6. using System.ComponentModel.DataAnnotations.Schema;
  7. namespace MVC5_HelloWorld.Models
  8. {
  9. public class User
  10. {
  11. [Key, Column(Order = 1)]
  12. [DatabaseGeneratedAttribute(DatabaseGeneratedOption.Identity)]
  13. public int idUser { get; set; }
  14. public string Username { get; set; }
  15. public string Password { get; set; }
  16. public int Lever { get; set; }
  17. }
  18. }
Create Class Connect Database extends DBContext
DBcontext is used in Entity Framework, it’s a very important part to connect to a table in database and execute query (insert, update, delete)
Models/demoEntities.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using MVC5_HelloWorld.Models;
  6. using System.Data.Entity;
  7. using System.Data.Entity.ModelConfiguration.Conventions;
  8. namespace MVC5_HelloWorld.Models
  9. {
  10. public class demoEntities : DbContext
  11. {
  12. public demoEntities() : base("demoASPEntities")
  13. {
  14. }
  15. public DbSet<User> Users { get; set; }
  16. protected override void OnModelCreating(DbModelBuilder modelBuilder)
  17. {
  18. modelBuilder.Entity<User>().ToTable("Users");
  19. modelBuilder.Conventions.Remove<PluralizingTableNameConvention>();
  20. base.OnModelCreating(modelBuilder);
  21. }
  22. }
  23. }
base(“demoASPEntities”)
The declaration name connect.
DbSet Users
We use the declaration table Users Controllesr/HomeController.cs
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.Mvc;
  6. using MVC5_HelloWorld.Models;
  7. namespace MVC5_HelloWorld.Controllers
  8. {
  9. public class HomeController : Controller
  10. {
  11. private demoEntities _db = new demoEntities();
  12. // GET: Home
  13. public ActionResult Index()
  14. {
  15. var data = (from s in _db.Users select s).ToList();
  16. ViewBag.users = data;
  17. ViewBag.title = "MVC5 - Hello World";
  18. return View();
  19. }
  20. }
  21. }
Views/Home/Index.cshtml edits the code below,
  1. @model MVC5_HelloWorld.Models.User
  2. <div class="container">
  3. <div class="row">
  4. <div class="col-md-12">
  5. <h2>@ViewBag.title</h2>
  6. <a href="https://hoanguyenit.com" class="btn btn-success">https://hoanguyenit.com</a>
  7. <table class="table table-bordered">
  8. @foreach (var user in ViewBag.users)
  9. {
  10. <tr>
  11. <td>@user.Username</td>
  12. <td>@user.Password</td>
  13. <td>@{
  14. if (user.Lever == 1)
  15. {
  16. <span class="badge badge-danger">Admin</span>
  17. }
  18. else
  19. {
  20. <span class="badge badge-warning">Member</span>
  21. }
  22. }</td>
  23. </tr>
  24. }
  25. </table>
  26. </div>
  27. </div>
  28. </div>

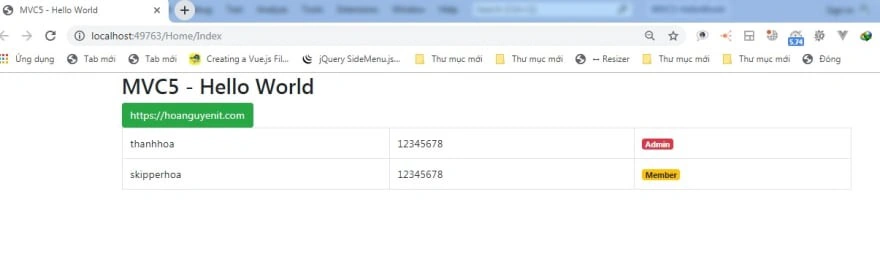

Demo
