Note: This article is published on 06/14/2021.

This series of articles will discuss View related issues of the MVC module.

Note: (added on 12/08/2024)

I put this article, Angular Features (1) --- Data Binding: Data Transfer inside Component, here in the name Data Binding in Angular, because it has the similar or same mechanizm or funcationality as view variable does in MVC module, say

Introduction

This will be the contents of this article,

A: Setup MVC Environment for Code Testing

Step 1 - Create an ASP.NET MVC app

We use the current version of Visual Studio 2019 16.9.4 and .NET Framework 4.8 to build the app,

Note
For beginners, you may see details from here.

Step 2 - Add ViewBag, ViewData, TempData, and Session

In Controller, update HomeController/Index action,

namespace MVC.Controllers
{
    public class HomeController : Controller
    {
        public ActionResult Index()
        {
            List<string> Student = new List<string>();
            Student.Add("Jignesh");
            Student.Add("Tejas");
            Student.Add("Rakesh");

            this.ViewData["Student"] = Student;
            this.ViewBag.Student = Student;
            this.TempData["Student"] = Student;
            this.HttpContext.Session["Student"] = Student;

            return View();
        }

        ......
    }
}

In View/Homw/Index.cshtml,

@{
    ViewBag.Title = "Home Page";
}

<br>
<br>

@*<ul>
    <b>ViewBag</b>
    @foreach (var student in ViewBag.Student)
    {
        <li>@student</li>
    }
</ul>*@
<ul>
    <b>ViewData</b>
    @foreach (var student in ViewData["Student"] as List<string>)
    {
        <li>@student</li>
    }

</ul>
<ul>
    <b>TempData</b>
    @foreach (var student in TempData["Student"] as List<string>)
    {
        <li>@student</li>
    }
</ul>
<ul>
    <b>Session</b>
    @foreach (var student in Session["Student"] as List<string>)
    {
        <li>@student</li>
    }
</ul>

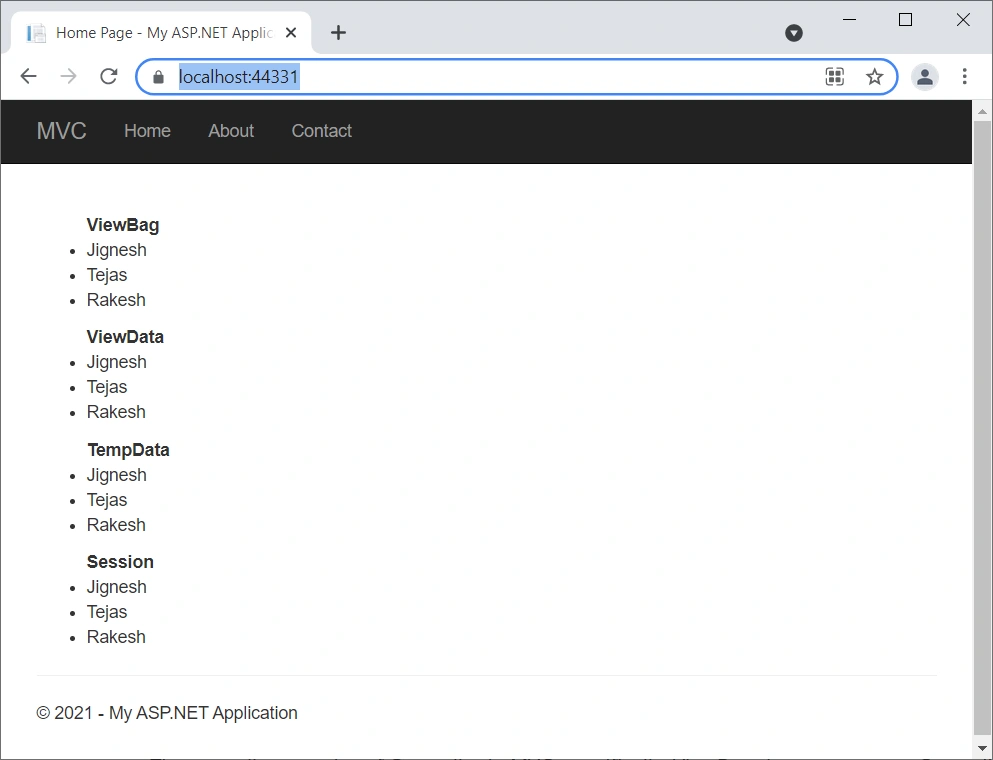

The result,

B: What ViewBag, ViewData, TempData, and Session are

ViewBag, ViewData, TempData, and Session are the options to send value from controller to view or to other action method/pages.

1, They are the properties of Controller in MVC

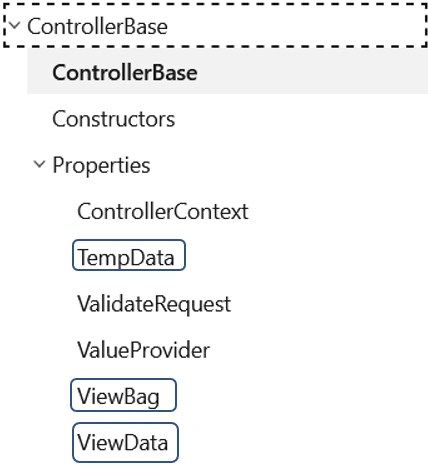

Specifically, ViewBag, ViewData, and TempData are the properties of ControllerBase class, which is the parent of the Controller Class.

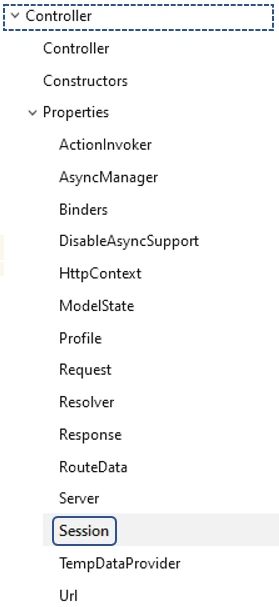

While the Session is the property of Controller class,

2, Type

They are all the Type of Dictionary with the string as key, except ViewBag is dynamic type:

Note:

ViewBag is a wrapper over ViewData and allows to store and retrieve values using object-property syntax rather than key-value syntax used by dictionary objects. It does so using the dynamic data type feature of .NET.

C: How ViewBag, ViewData, TempData and Session Work

1, ViewBag and ViewData

They can be used to pass data from controller to view, one way only in the same request.

The following example show if the ViewBag is assigned value in one action --- index, but try to retrieve from another view --- About (two trips, two requests), it will not work

Comment out the ViewBag from Index,

Add the code to View/Home/About.cshtml,

<ul>
    <b>ViewBag</b>
    @foreach (var student in ViewBag.Student)
    {
        <li>@student</li>
    }
</ul>

Run the app, it will go to the Index page, and then click the About button to navigate to the About page.

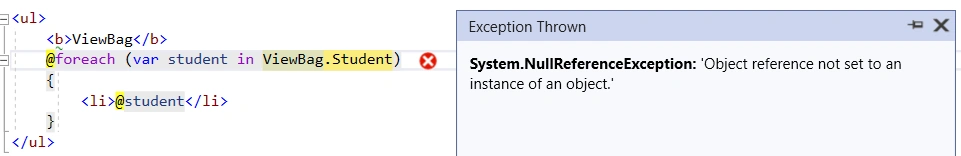

We got the error due to the value defined in ViewBag exists only in the same action, within the same request, i.e. in View/Home/About.cshtml retrieving ViewBag value, it must be defined in Action About,

The difference between ViewBag and ViewData,

2, TempData

TempData is used to transfer data from view to controller, controller to view, or from one action method to another action method of the same or a different controller.

TempData stores the data temporarily and automatically removes it after retrieving a value. i.e., It can be retrieved once, and only once.

We demo how TempData transfers info by the following example (you need to run the example from step 1 to step 4, one by one).

Step 1 - Go to Action Index to define the TempData

public ActionResult Index()
{
    List<string> Student = new List<string>();
    Student.Add("Jignesh");
    Student.Add("Tejas");
    Student.Add("Rakesh");

    this.ViewData["Student"] = Student;
    this.ViewBag.Student = Student;
    this.TempData["Student"] = Student;
    this.HttpContext.Session["Student"] = Student;

    return View();
}

while in the View: the TempData comments out,

@{
    ViewBag.Title = "Home Page";
}

<br>
<br>

<ul>
    <b>ViewBag</b>
    @foreach (var student in ViewBag.Student)
    {
        <li>@student</li>
    }
</ul>
<ul>
    <b>ViewData</b>
    @foreach (var student in ViewData["Student"] as List<string>)
    {
        <li>@student</li>
    }

</ul>
@*<ul>
    <b>TempData</b>
    @foreach (var student in TempData["Student"] as List<string>)
    {
        <li>@student</li>
    }
</ul>*@
<ul>
    <b>Session</b>
    @foreach (var student in Session["Student"] as List<string>)
    {
        <li>@student</li>
    }
</ul>

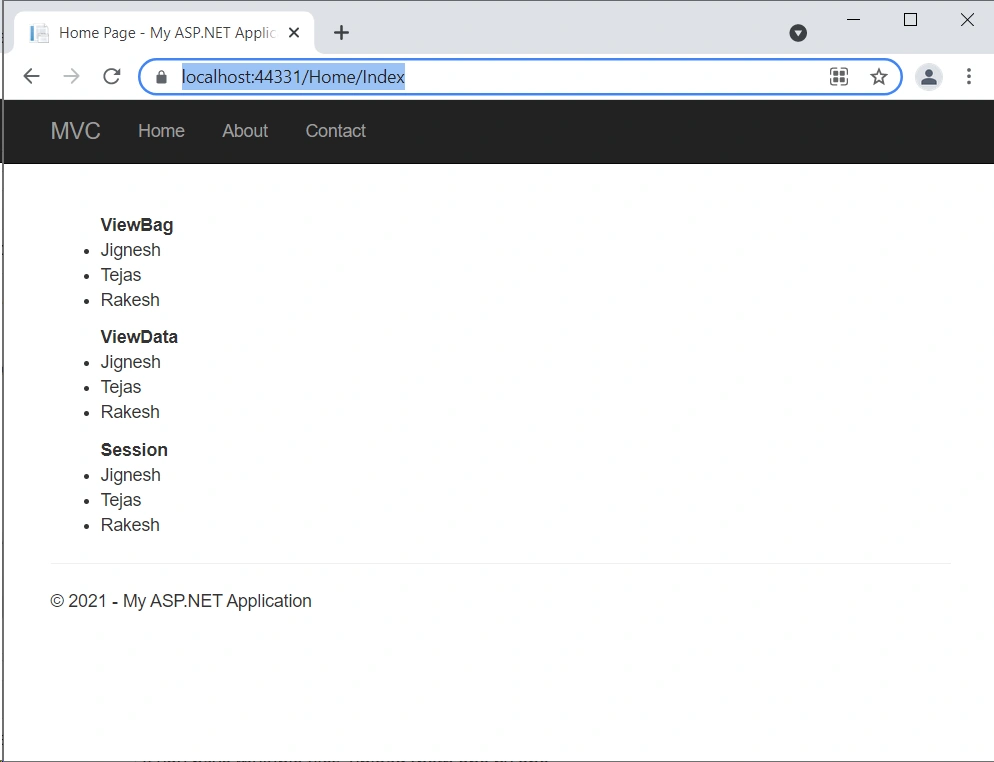

Result: not showing TempData as expected,

Step 2 - Go to Action Contact to do nothing, but in the View

Retrieve TempData["Student"], also redefine TempData["name"] = "Steve"

}
<h2>@ViewBag.Title.</h2>
<h3>@ViewBag.Message</h3>

<address>
    One Microsoft Way<br />
    Redmond, WA 98052-6399<br />
    <abbr title="Phone">P:</abbr>
    425.555.0100
</address>

<address>
    <strong>Support:</strong>   <a href="mailto:[email protected]">[email protected]</a><br />
    <strong>Marketing:</strong> <a href="mailto:[email protected]">[email protected]</a>
</address>

<ul>
    <b>TempData</b>
    @foreach (var student in TempData["Student"] as List<string>)
    {
        <li>@student</li>
    }
</ul>
@{
    TempData["name"] = "Steve";
}
<ul>
    <b>Session</b>
    @foreach (var student in Session["Student"] as List<string>)
    {
        <li>@student</li>
    }
</ul>

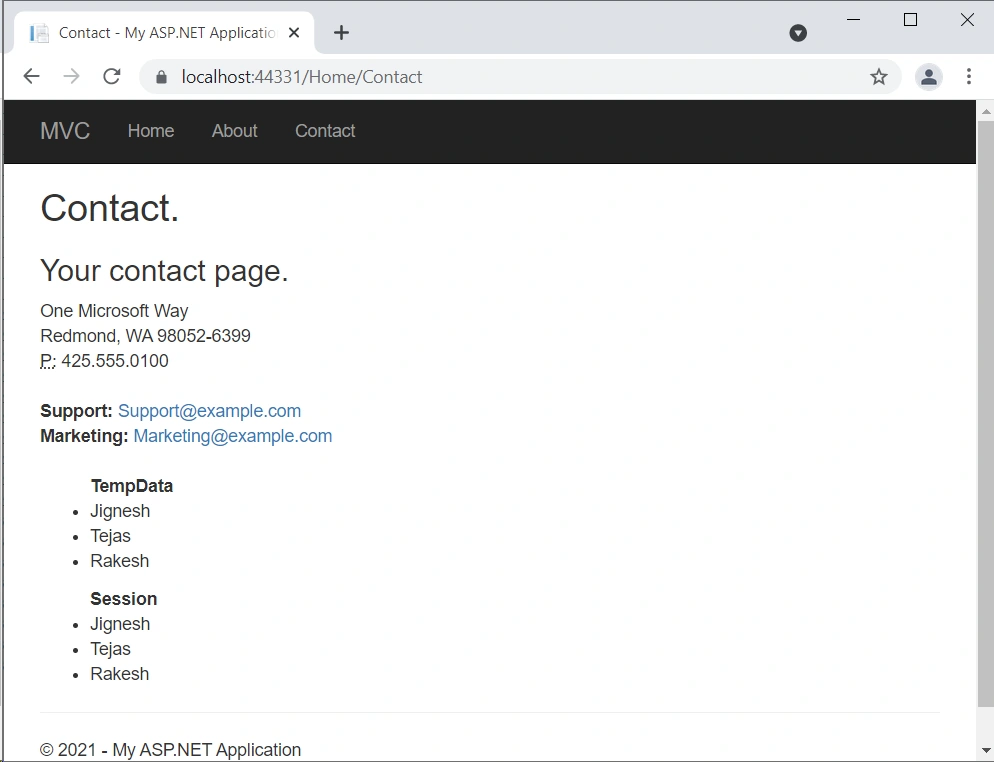

Result: showing retrieved TempData["Student"]

Step 3 - Go to Action About

Retrieve TempData["name"], and redefine TempData["Student"]

public ActionResult About()
{
    ViewBag.Message = "Your application description page.";

    if (TempData["name"].ToString() == "Steve")
    {
        List<string> Student = new List<string>();
        Student.Add("Jignesh");
        Student.Add("Tejas");
        Student.Add("Rakesh");

        this.ViewData["Student"] = Student;
        this.ViewBag.Student = Student;
        this.TempData["Student"] = Student;
        this.HttpContext.Session["Student"] = Student;
    }
    return View();
}

View: desplay TempData["Student"]

<ul>
    <b>TempData</b>
    @foreach (var student in TempData["Student"] as List<string>)
    {
        <li>@student</li>
    }
</ul>
<ul>
    <b>Session</b>
    @foreach (var student in Session["Student"] as List<string>)
    {
        <li>@student</li>
    }
</ul>

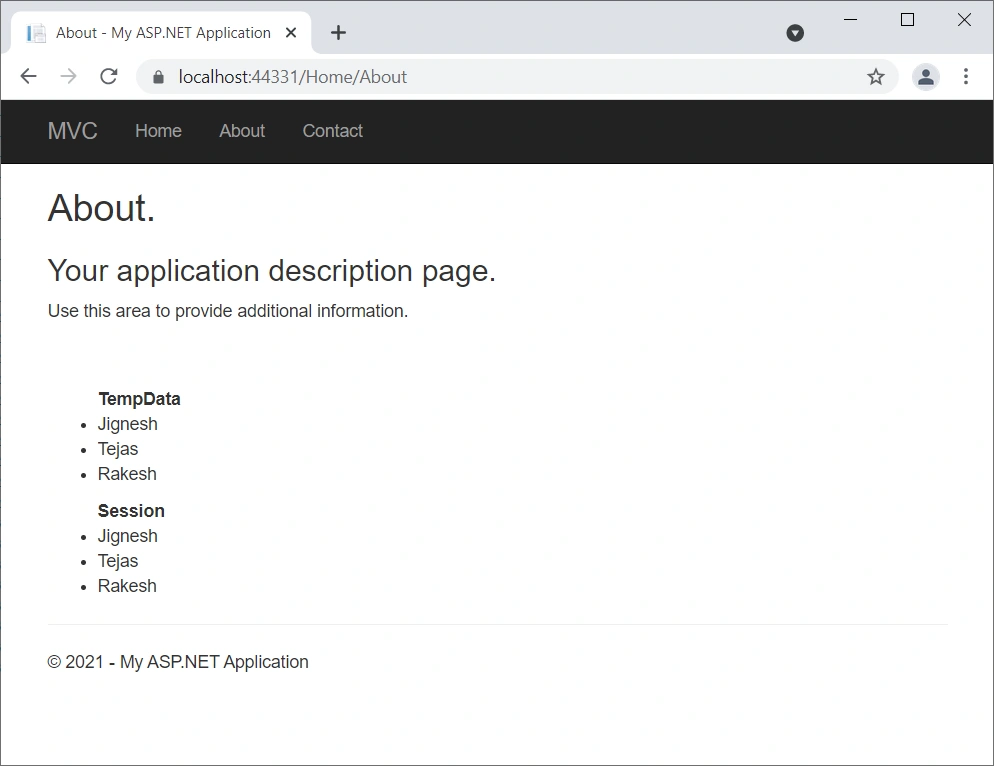

Result: as expected: showing TempData["Student"]

Step 4

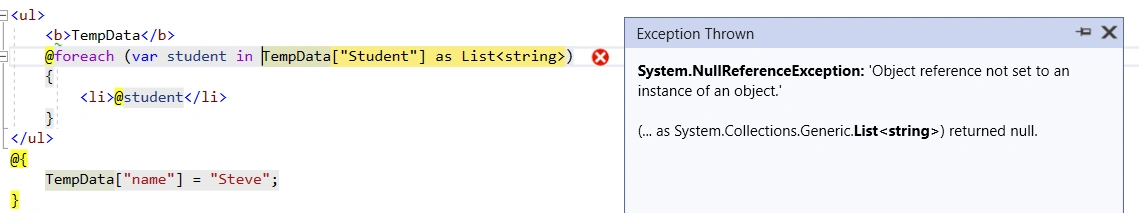

Finally, Go back to Click Contact: try to a second time to Retrieve TempData["Student"], we got an error message,

Finally, we should mention,

3, Session

Summary

This article actually discussed ASP.NET MVC ViewBag, ViewData, TempData, and Session. We will leave ASP.NET Core MVC for the same discussion in the next article.

Reference
