This article will explain RabbitMQ and its usage. Also, I will present a practical example of how to post data on a RabbitMQ queue and how to read the data from this queue.

To publish in the queue we will use a .Net Core Web API and to read from the queue we will use a .Net Core Console application.

What is RabbitMQ?

RabbitMQ is an open-source message broker that implements the message queue protocol, being able to exchange messages between publishers and listeners among different channels and routes.

Among RabbitMQ's main features, find some important ones below, with a brief explanation of it

The main benefits of RabbitMQ usage

Implementation Step by Step

In this sample, will be used a Web API will post user locations in a RabbitMQ queue, and a console application in a different solution reading and displaying this data.

Downloads required

Default RabbitMQ configuration

Creating the .Net Core Web API to publish user locations in the RabbitMQ queue

For this sample, I used my previous Web API project using Swagger as a base. You may find the complete article explaining how to create a .Net Core Web API using Swagger below as far as the GitHub URL to download the project.

Remove the controller and model

In order to have a better experience, we are using a new model and controller so the old ones were removed.

Add a new class

This class will have location properties as follows,

public class Location
{
    public DateTime Date { get; set; }
    public double Latitude { get; set; }
    public double Longitude { get; set; }
}

Add a new controller

This controller will have an HTTP Post to publish in the RabbitMQ queue as follows,

[Route("api/[controller]")]
[ApiController]
public class LocationController : ControllerBase
{
    [HttpPost]
    public void Post([FromBody] Location location)
    {
        var factory = new ConnectionFactory() { HostName = "localhost" };
        using (var connection = factory.CreateConnection())
        using (var channel = connection.CreateModel())
        {
            channel.QueueDeclare(queue: "locationSampleQueue",
                                 durable: false,
                                 exclusive: false,
                                 autoDelete: false,
                                 arguments: null);

            string message = "Latitude: " + location.Latitude + ", Longitude: " + location.Longitude + " and Time: " + location.Date;
            var body = Encoding.UTF8.GetBytes(message);

            channel.BasicPublish(exchange: "",
                                 routingKey: "locationSampleQueue",
                                 basicProperties: null,
                                 body: body);
        }
    }
}

Run your Web API Project

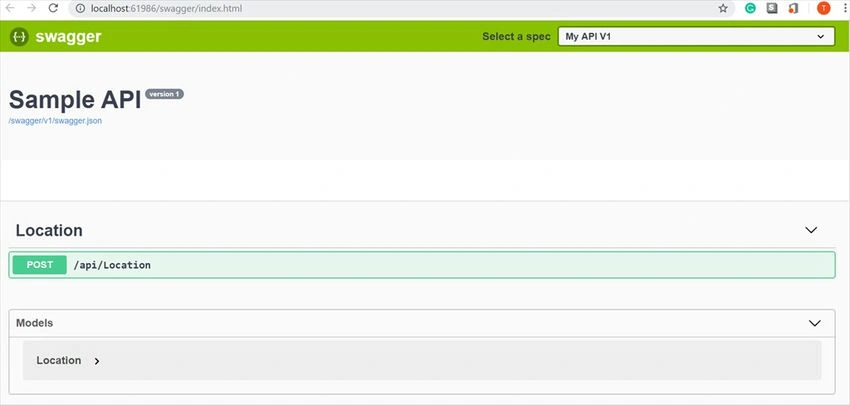

If you used my project base, or have installed and configured Swagger, you may access your endpoint from it.

Web Api Project

Validating results

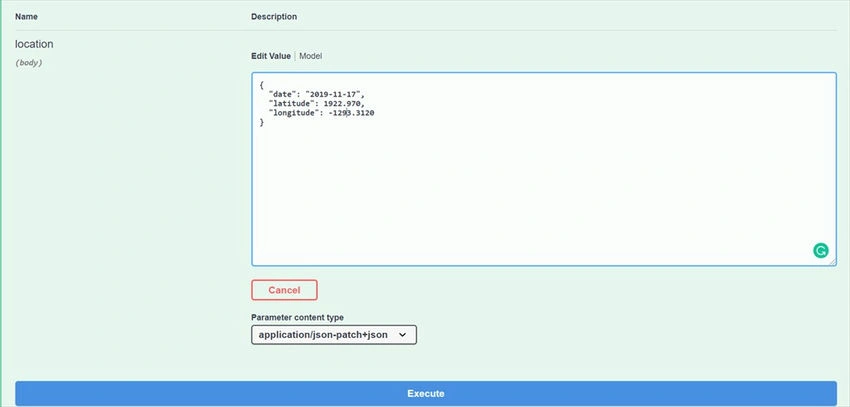

Inputting sample data,

Validating results

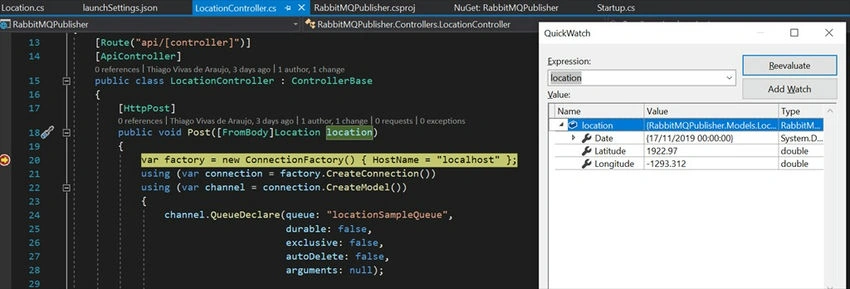

Validate the controller

Checking if input data is correct, as follows,

Validate the controller

Validate RabbitMQ

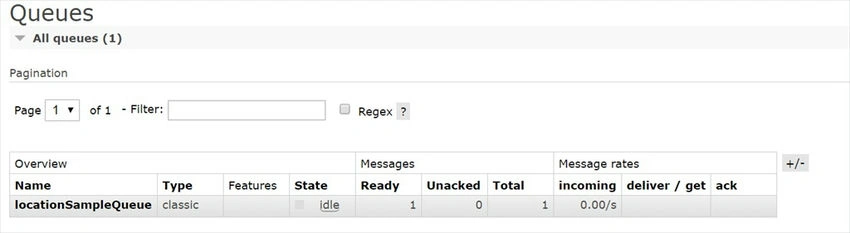

Checking if RabbitMQ was created,

http://localhost:15672/#/queues

RabbitMQ

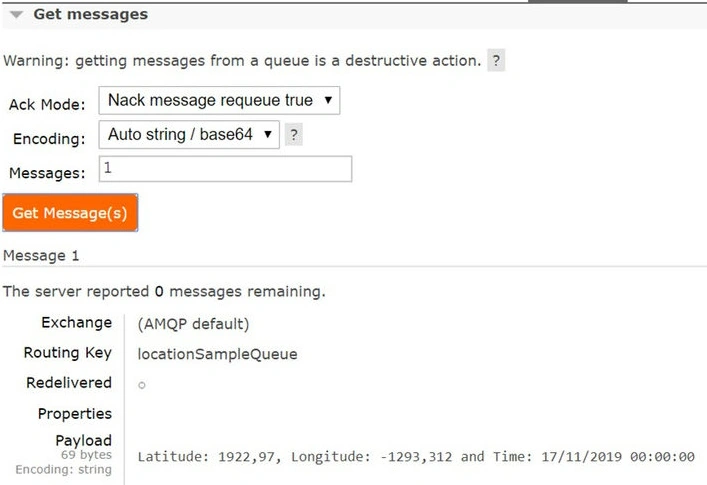

Checking the message in the queue,

The queue

Creating the .Net Core console application to read user locations from the RabbitMQ queue

Now that we are able to publish messages in our RabbitMQ queue, the next step is to create a listener to subscribe to this queue and read its messages, as follows.

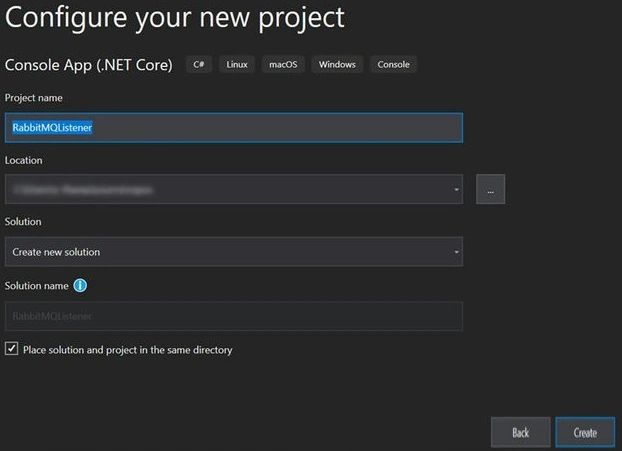

Create the .Net Core Console Application project

Application project

Update the Program.cs

In order to subscribe to this queue and write its information on the console, we only need the following code,

static void Main(string[] args)
{
    var factory = new ConnectionFactory() { HostName = "localhost" };
    string queueName = "locationSampleQueue";
    var rabbitMqConnection = factory.CreateConnection();
    var rabbitMqChannel = rabbitMqConnection.CreateModel();

    rabbitMqChannel.QueueDeclare(queue: queueName,
                                 durable: false,
                                 exclusive: false,
                                 autoDelete: false,
                                 arguments: null);

    rabbitMqChannel.BasicQos(prefetchSize: 0, prefetchCount: 1, global: false);

    int messageCount = Convert.ToInt16(rabbitMqChannel.MessageCount(queueName));
    Console.WriteLine(" Listening to the queue. This channels has {0} messages on the queue", messageCount);

    var consumer = new EventingBasicConsumer(rabbitMqChannel);
    consumer.Received += (model, ea) =>
    {
        var body = ea.Body;
        var message = Encoding.UTF8.GetString(body);
        Console.WriteLine(" Location received: " + message);
        rabbitMqChannel.BasicAck(deliveryTag: ea.DeliveryTag, multiple: false);
        Thread.Sleep(1000);
    };
    rabbitMqChannel.BasicConsume(queue: queueName,
                                 autoAck: false,
                                 consumer: consumer);

    Thread.Sleep(1000 * messageCount);
    Console.WriteLine(" Connection closed, no more messages.");
    Console.ReadLine();
}

Validate the result

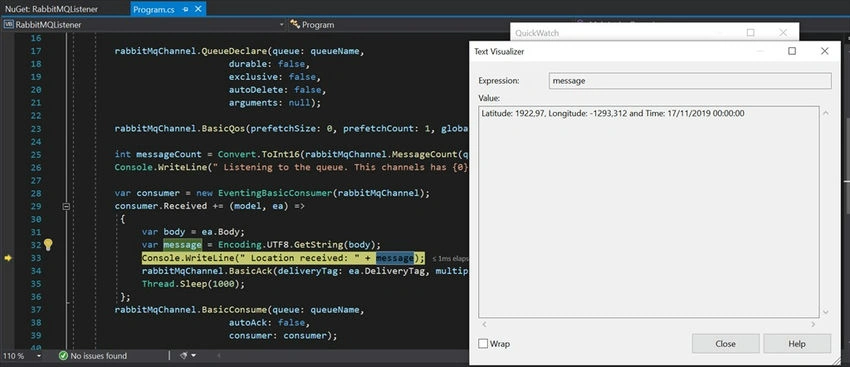

Checking that the console application is running.

Console application

Checking the console application,

Command

Projects on GitHub,

Congratulations! You have successfully created your first application to publish and listen to a RabbitMQ queue.

External References
