Object Follow A Path Using C# Scripts In Unity

Introduction

In this article, we discuss how to make an object follow a path using C# scripts in Unity.

Prerequisites

Unity Environment version 2017.4.39f1

Steps

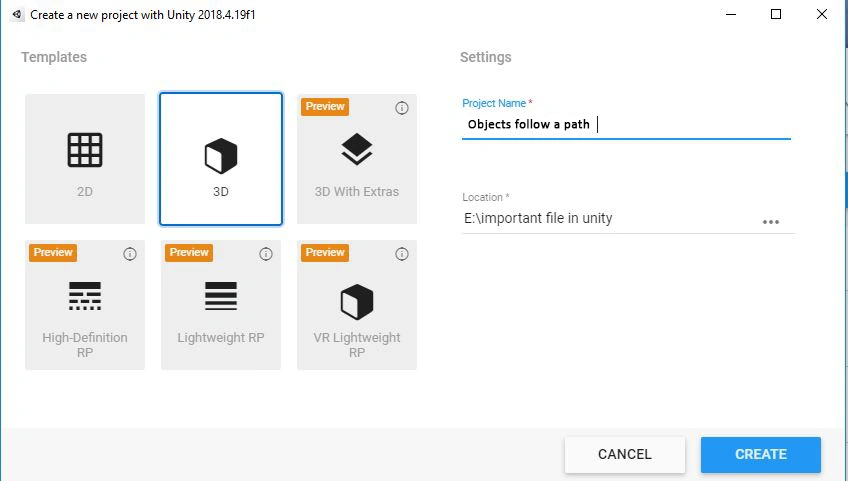

Create the project in Unity.

Object Follow A Path Using C# Scripts In Unity

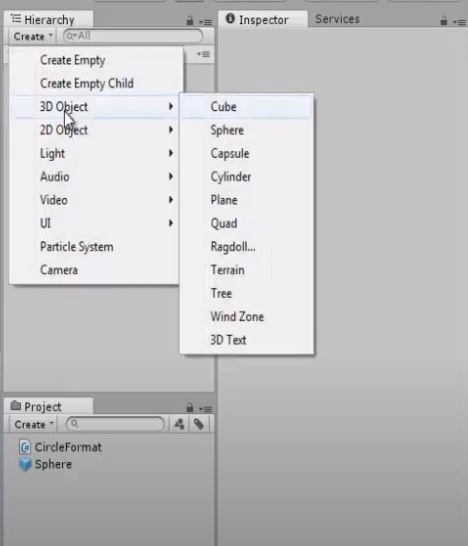

First, you have to open the Unity project. Create the cube.

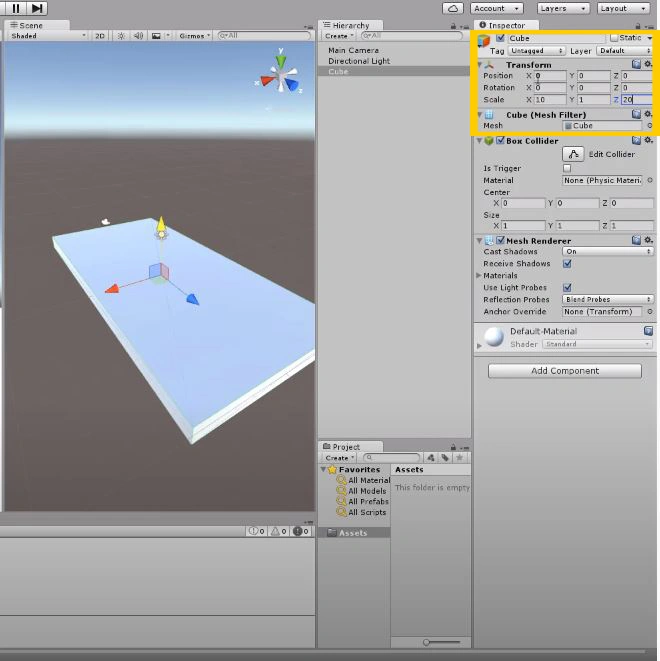

Rescale the size for the cube.

Rename the cube as floor.

Click on the "GameObject" menu in the menu bar. Select 3D objects and pick the "cube" option. The cube will be added to the scene View.

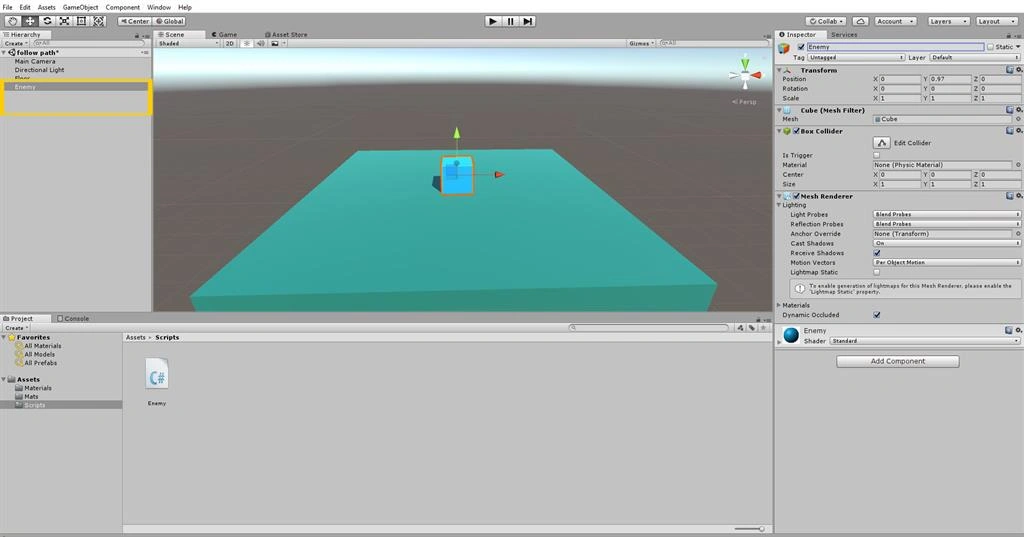

Rename the cube as enemy.

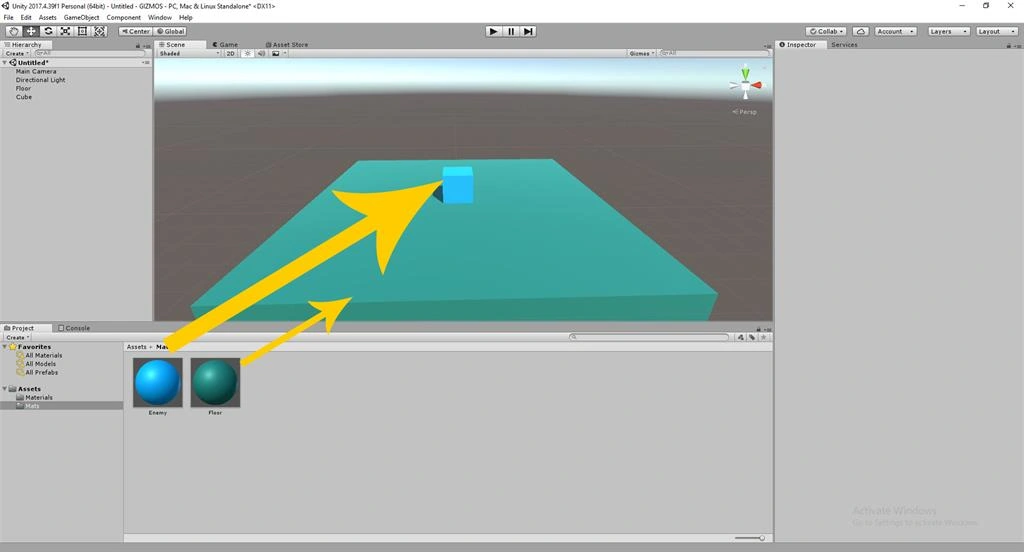

Drag and drop the blue and green material. The color of the cube will be changed into blue and green.

Create a C# Script

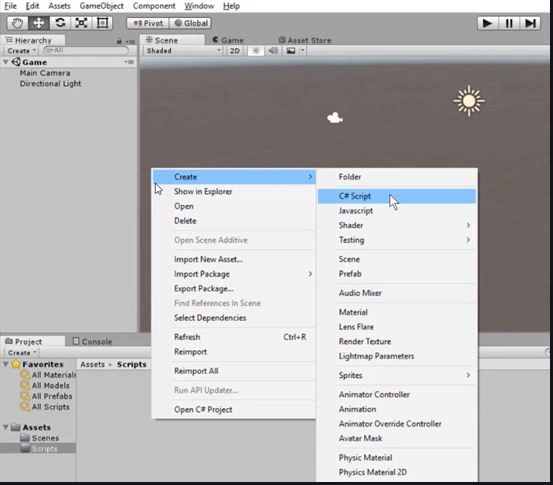

Right-click on Assets. Select Create >> C# script.

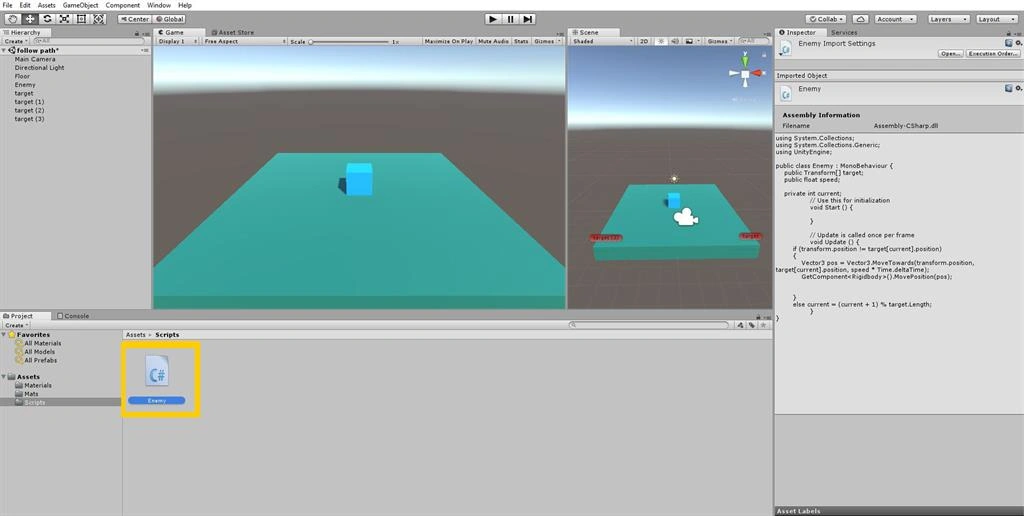

Rename the script as Enemy.

Double click on the enemy script. The MonoDevelop-Unity editor will open up.

Write the code as shown below:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
public class Enemy: MonoBehaviour {
public Transform[] target;
public float speed;
private int current;
// Use this for initialization
void Start() {}
// Update is called once per frame
void Update() {
if (transform.position != target[current].position) {
Vector3 pos = Vector3.MoveTowards(transform.position, target[current].position, speed * Time.deltaTime);
GetComponent < Rigidbody > ().MovePosition(pos);
} else current = (current + 1) % target.Length;
}
}

Save the program.

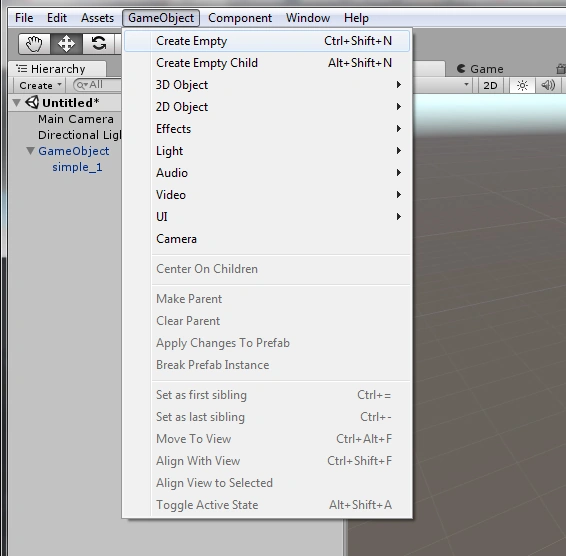

Click on the "GameObject" menu in the menu bar. Select 3D objects and pick the "create empty" option. The empty (Gameobject) will be added to the scene View.
