Unit of Work is the concept related to the effective implementation of the Repository Pattern. To understand this concept in better it is important to understand the concept of the Repository Pattern. We will not get into the details of the Repository Pattern in this discussion. But a small idea of this concept is necessary to proceed further.

The Repository Pattern


A repository is nothing but a class defined for an entity, with all the operations possible on that specific entity. For example, a repository for an entity Customer, will have basic CRUD operations and any other possible operations related to it. A Repository Pattern can be implemented in Following ways:

Unit of Work in the Repository Pattern

Unit of Work is referred to as a single transaction that involves multiple operations of insert/update/delete and so on kinds. To say it in simple words, it means that for a specific user action (say registration on a website), all the transactions like insert/update/delete and so on are done in one single transaction, rather then doing multiple database transactions. This means, one unit of work here involves insert/update/delete operations, all in one single transaction.

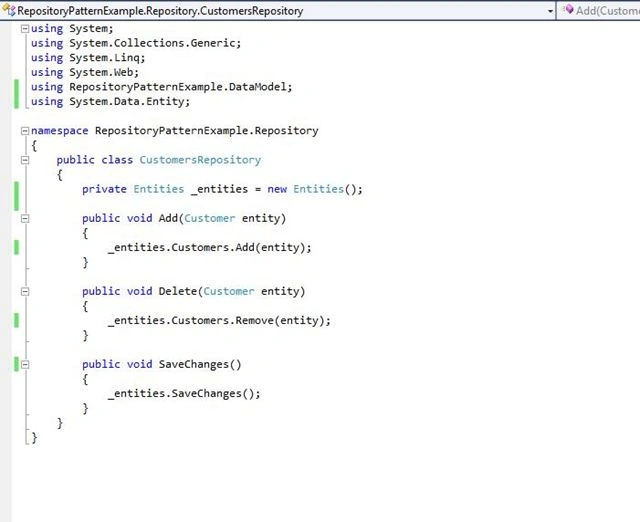

To understand this concept, consider the following implementation of the Repository Pattern using a non-generic repository, for a Customer entity.

Repository Pattern

The code above seems to be fine. The issue arises when we add a repository for another entity, say Order. In that case, both repositories will generate and maintain their own instance of the DbContext. This may lead to issues in the future, since each DbContext will have its own in-memory list of changes of the records, of the entities, that are being added/updated/modified, in a single transaction/operation. In such a case, if the SaveChanges of one of the repository fails and other one succeeds, it will result in database in-consistency. This is where the concept of UnitOfWork is relevant.

To avoid this, we will add another layer or intermediate between the controller and the Customer repository. This layer will act as a centralized store for all the repositories to receive the instance of the DbContext. This will ensure that, for a unit of transaction, that spans across multiple repositories, should either complete for all entities or should fail entirely, as all of them will share the same instance of the DbContext. In our above example, while adding data for the Order and Customer entities, in a single transaction, both will use the same DbContext instance. This situation, without and with Unit of work, can be represented as in the following :

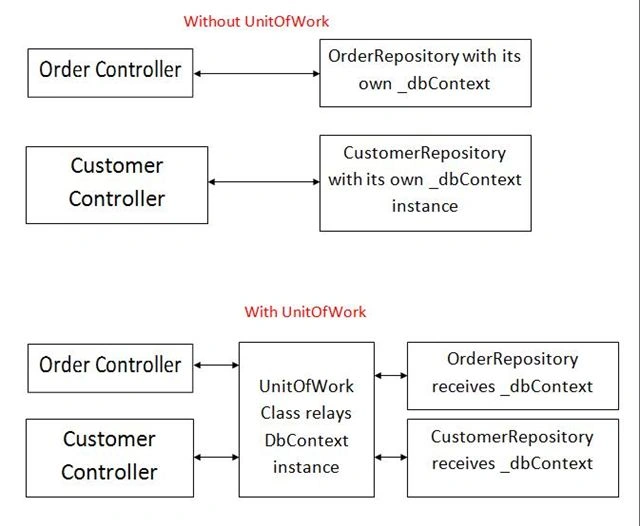

Unit of Work

In the above representation, during a single operation, that involves Customer and Order entities, both of them use the same DbContext instance. This will ensure that even if one of them breaks, the other one is also not saved, thus maintaining the database consistency. So when SaveChanges is executed, it will be done for both of the repositories.

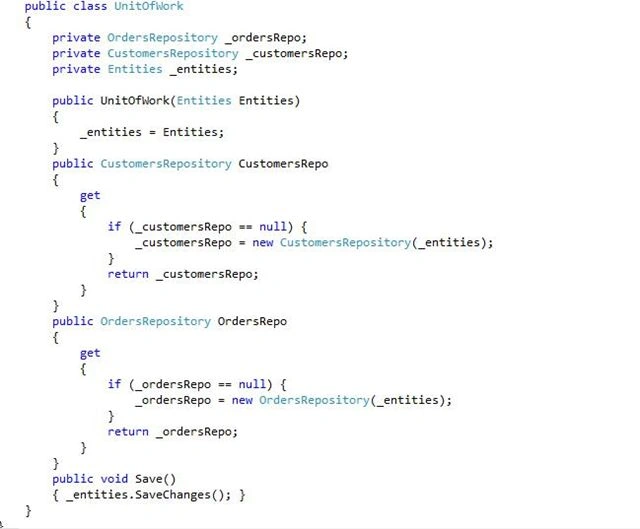

Let us implement this concept in our example. We add a new class called UnitOfWork and this class will receive the instance of the DbContext. The same class will further generate the required repository instances, in other words repository instances for Order and Customer and pass the same DbContext to both the repositories. So our UnitOfWork will be like the following:

UnitOfWork

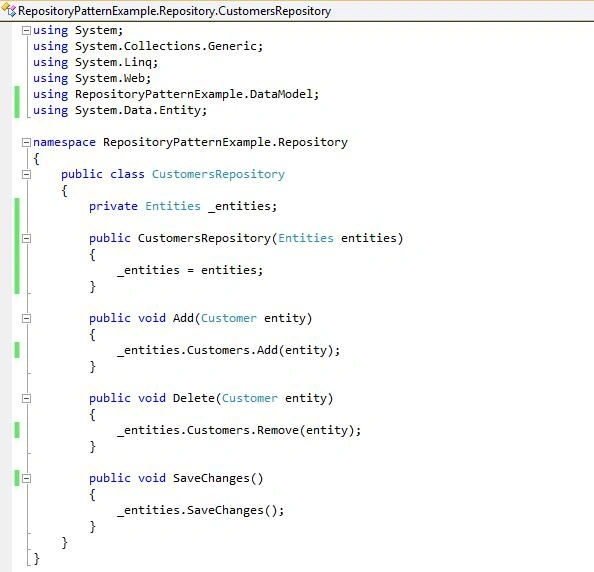

And, our Customer Repository will be changed, to receive the instance of DbContext from the unit of work class. See the code below:

Repository Pattern

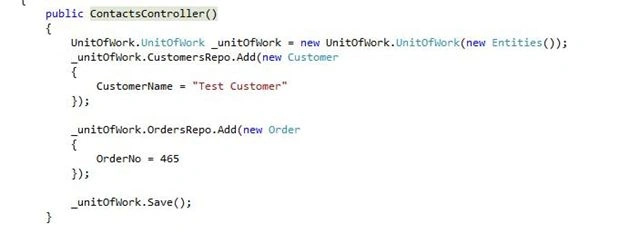

Similarly, we can have the code for the Order repository. Finally, our controller code will be like the following :



Here, both the Order and Customer repository use the same instance of DbContext and we are executing the save changes using the instance unit of work class. So the changes of a single transaction are either done for both or none. Run the code and see the results.

So this was about the concept of unit of work in the Repository Pattern. Any suggestions are welcome.
