Introduction

As we now all know how to declare a variable in Python, the different Tokens of Python as well as its Datatypes. Now, we will use them in some conditional statements and see how Python Programs are implemented with flowcharts and examples.

What are the Flow Control Statements?

A Flow Control Statement defines the flow of the execution of the Program.
There are 6 different types of flow control statements available in Python:
  1. if-else
  2. Nested if-else
  3. for
  4. while
  5. break
  6. Continue
Let’s learn about these all statements in detail.

if-else

If-else is used for decision making; when code statements satisfy the condition, then it will return non-zero values as true, or else zero or NONE value as false, by the Python interpreter.
Syntax
  1. if(<condition>):
  2. Statement 1
  3. ...
  4. else:
  5. Statement 2
  6. ...
Understand this statement with a flow chart.
Python Flow Control Statements
Example

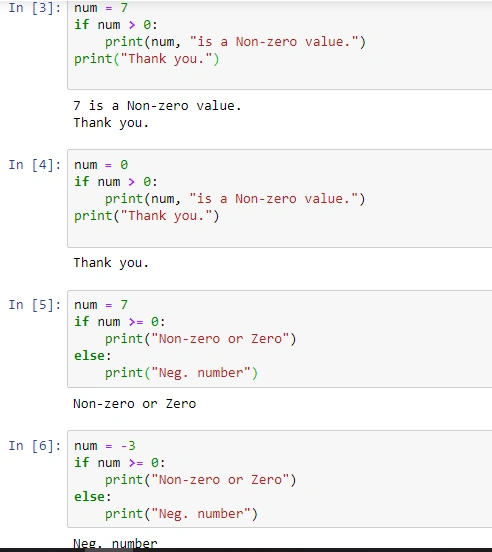

Check In[3] and In[4] and also In[5] and In[6].
Python Flow Control Statements

Nested if-else

With if...elif...else, elif is a shortened form of else if. It works the same as 'if' statements, where the if block condition is false then it checks to elif blocks. If all blocks are false, then it executes an else statement. There are multiple elif blocks possible for a Nested if...else.
Syntax
  1. if (<condition 1>):
  2. Statement 1
  3. ...
  4. elif (<condition 2>):
  5. Statement 2
  6. ...
  7. else
  8. Statement 3
  9. ...

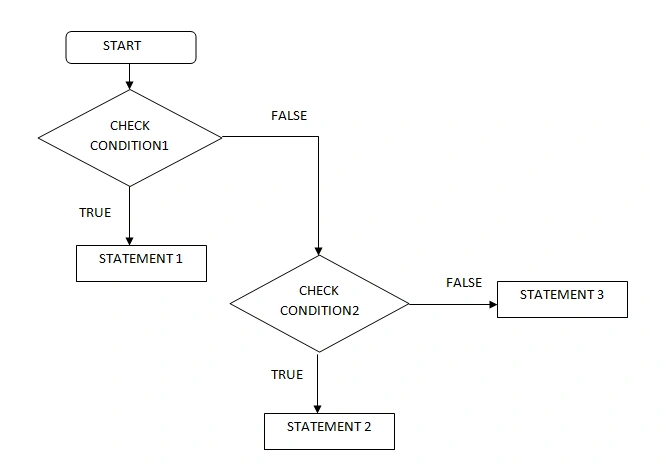

Flow chart of Nested-if else
Python Flow Control Statements
Remember there is no condition statement associated with else part of these flow control statements. It will execute ig statements only in the case that of all conditions are false.
Example

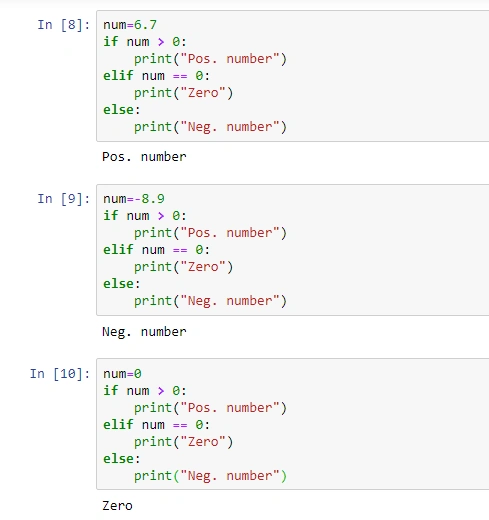

Check In[3] and In[8] and also In[9] and In[10].
Python Flow Control Statements

for Statement

The for loop statement has variable iteration in a sequence(list, tuple or string) and executes statements until the loop does not reach the false condition.
Syntax
  1. for value in sequence:
  2. ...body statement of for
Flow chart of for statement
Python Flow Control Statements
Example

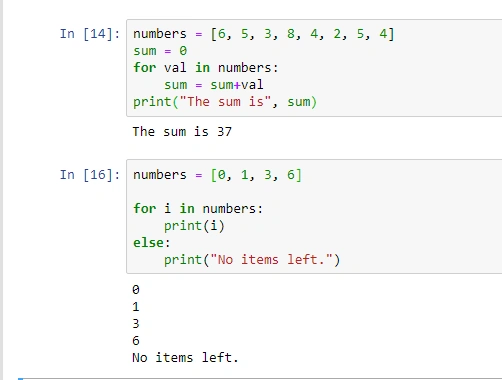

Check In[14] and In[16]. The continue statement is used to stop for loop, in case there is an else block missed.
Python Flow Control Statements

while loop

A while loop is used in python to iterate over the block of expression which matches to true. Non-zero values are True and zero and negative values are False, as interpreted in Python.
Syntax
  1. while(<condition>):
  2. statement 1..
Flow chart of while loop
Python Flow Control Statements
Example

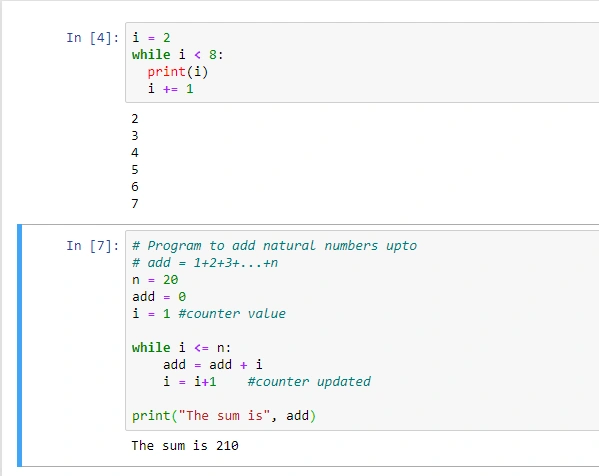

Check In[4] and In[7]. In[7]. If the user wants to add a number of his choice, then use: n = int(input("Enter number: ")) instead of n=20. Also, check-in In[3] for a while..else loop.
Python Flow Control Statements

Break statement

The Python Break statement is used to break a loop in a certain condition. It terminates the loop. Also, we can use it inside the loop then it will first terminate the innermost loop.
Syntax
I. break
II. with for loop
  1. for value in sequence:
  2. ...body statement of for
  3. if(<condition>):
  4. break
  5. ...body statement of for loop
  7. ...body statement outside of for loop
III. with a while loop
  1. while(<condition>):
  2. statement 1...
  3. if(<condition>):
  4. break
  5. ...Statement of while loop
  7. ....Statements outside while loop

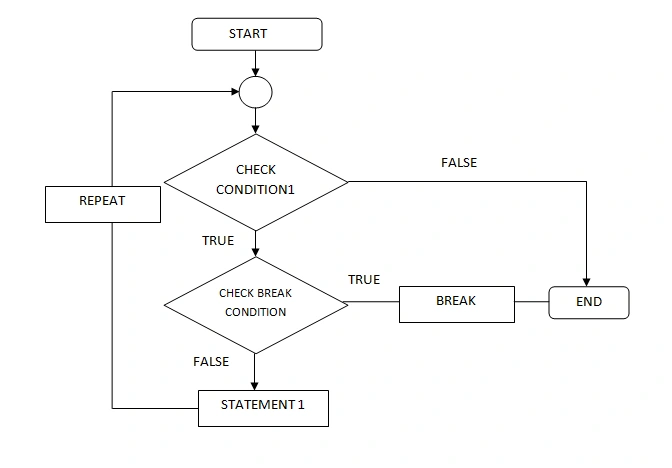

Break statement Flow Chart
Python Flow Control Statements
Example

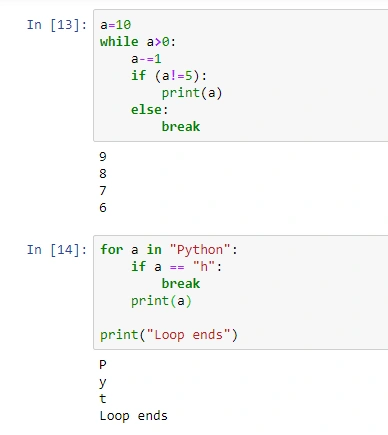

Check In[13] and In[14].
Python Flow Control Statements

Continue Statement

A continue statement won’t continue the loop, it executes statements until the condition matches True.
Syntax
I. continue
II. with for loop
  1. for value in sequence:
  2. ...body statement of for
  3. if(<condition>):
  4. continue
  5. ...body statement of for loop
  7. ...body statement outside of for loop
III. with the while loop
  1. while(<condition>):
  2. statement 1...
  3. if(<condition>):
  4. continue
  5. ...Statement of while loop
  7. ...Statements outside while loop

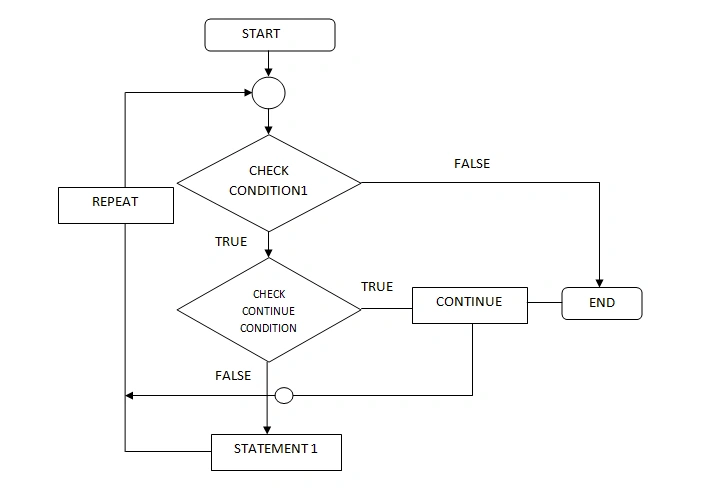

    Continue statement Flow Chart
    Python Flow Control Statements
    Example
    Check In[17] and In[19].
    Python Flow Control Statements
    Python Flow Control Statements
    One more additional Flow statement is PASS.

    PASS

    In Python, pass, and comment both are quite similar. The pass contains a Null value. The Python interpreter ignores the comment statement, but it’s not possible to ignore a pass statement. There is nothing is going to execute when a pass is used. It is used as a Place Holder in a loop or a function.
    Example
    Check below In[21].
    Python Flow Control Statements
    It executes nothing.

    Summary

    In this article, we learned all the flow control statements of Python, gaining a deep understanding of flowcharts and examples. Moreover, PASS is also introduced with an example, as it is a part of the flow control statements in Python.
