Searching The Index In Azure Portal And Implementation Using Visual Studio

In this article we will see how to do searching in Azure portal and search implementation through Visual Studio.

In my previous article I created Azure search service and an index on it using import data.

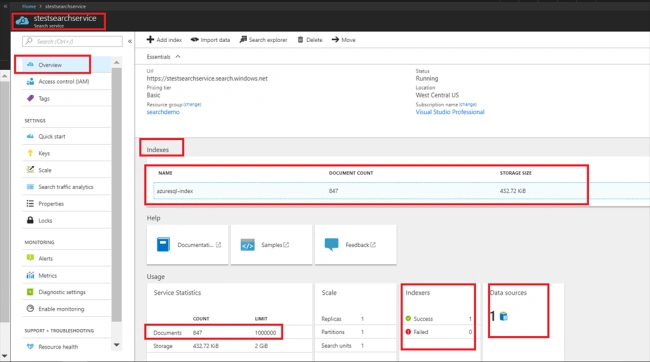

Go to Indexes

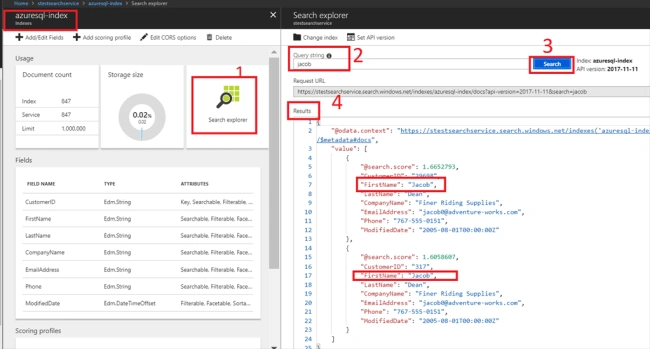

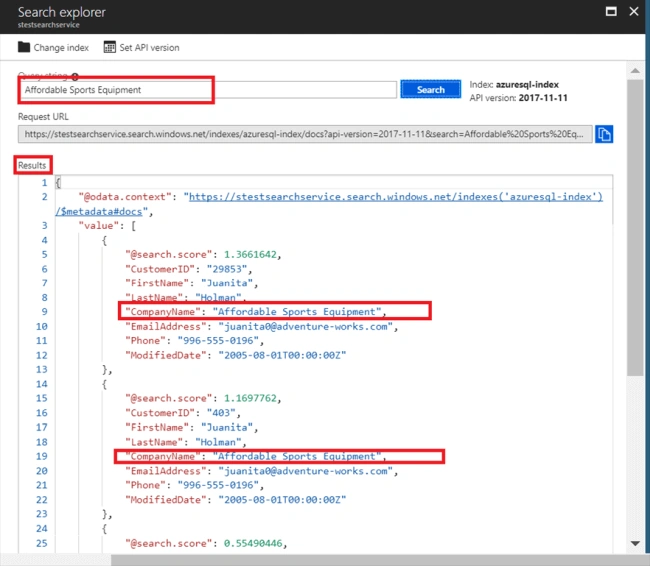

Search explorer -> enter query string to search -> Click Search -> Results shown below:

The text to search for All searchable fields are searched by default unless searchFields is specified.

To match any term, use * (this can be useful for Boolean filter queries). To read more about simple query syntax read msdn here

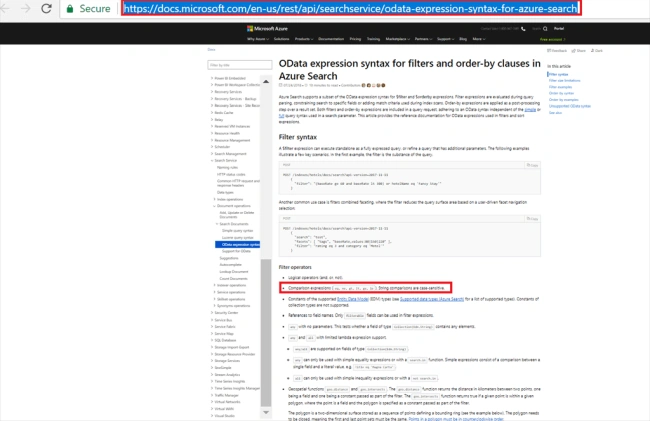

You can read more about filters using MSDN link here

NOTE
String comparisons are case sensitive [when you specify a filter]

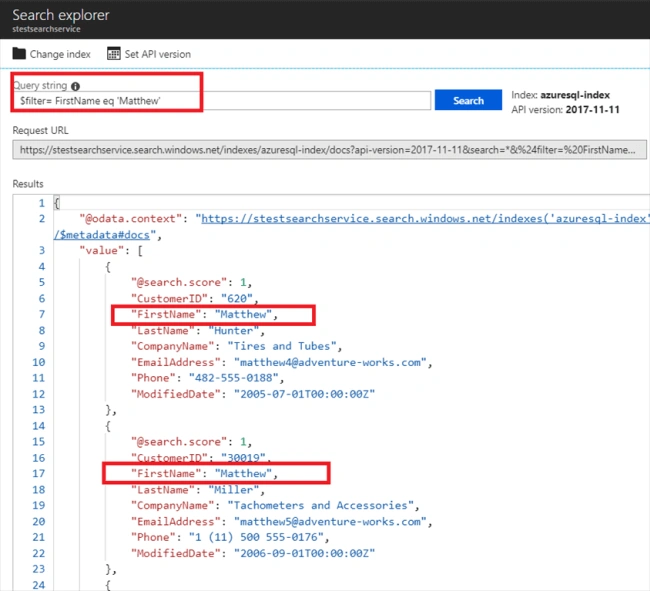

For example - when we use:

BUT,

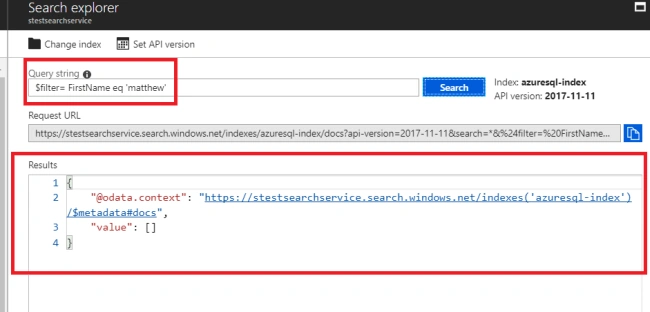

If we replace ‘Matthew’ with ‘matthew’ the result will be as shown:

So string comparisons are case sensitive. [when you specify a filter]

Open Visual studio

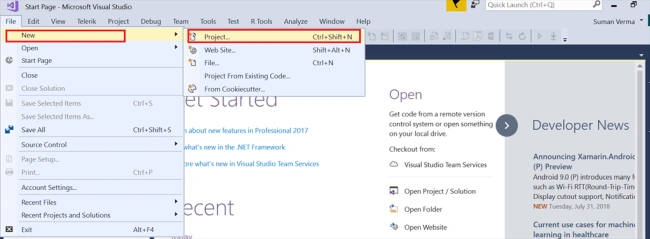

Click on File-> new-> Project

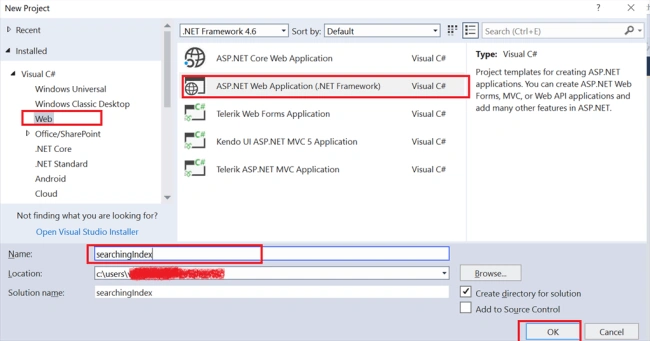

Select asp.net web application, enter project name as “searchingIndex” and click ok,

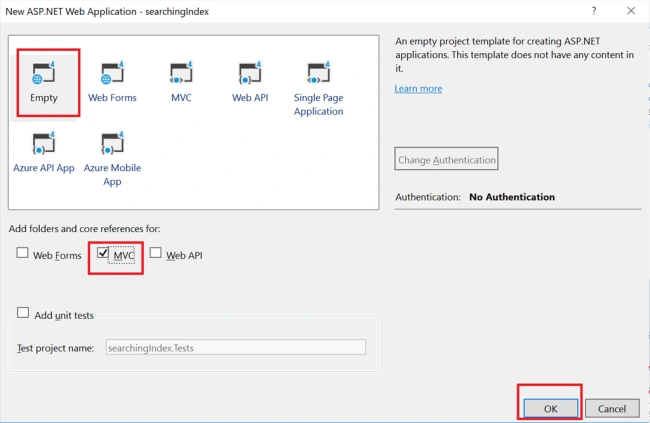

Choose empty MVC application and click ok:

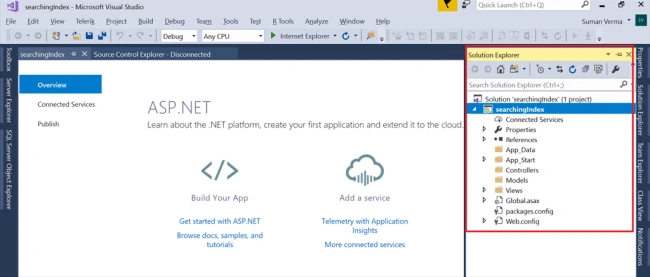

Empty MVC application is created.

STEP 2 - Install Microsoft.Azure.search using NuGet Package manager

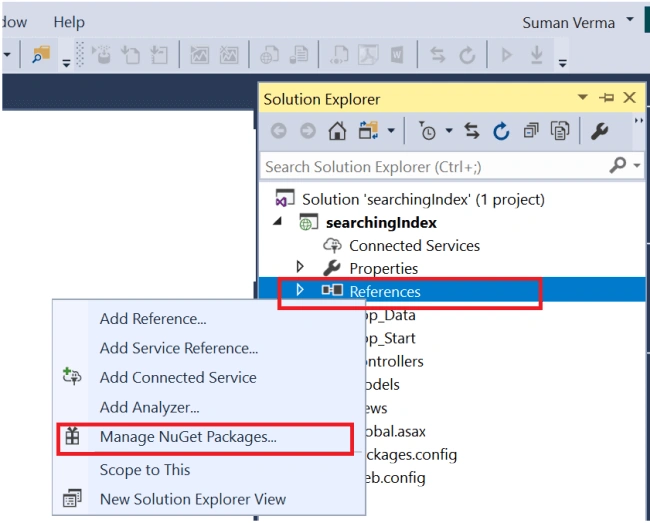

Right click on references and select Manage NuGet Pakages

OR,

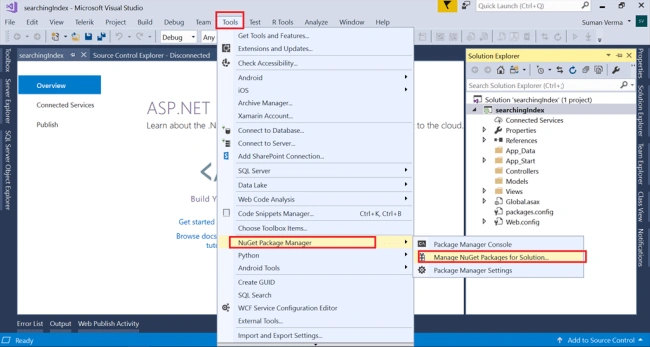

Go to Tools -> NuGet Pakage Manager -> Manage NuGet Package for Solution

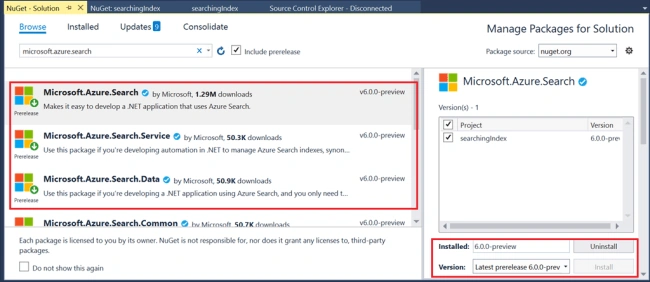

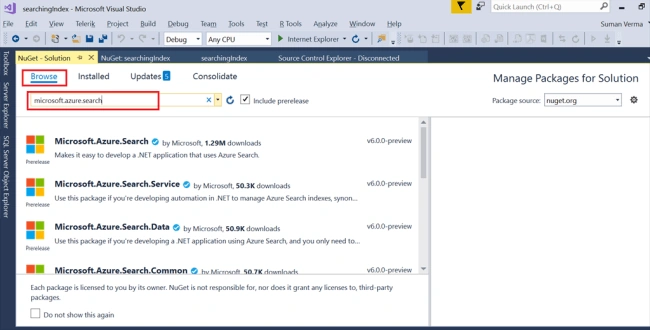

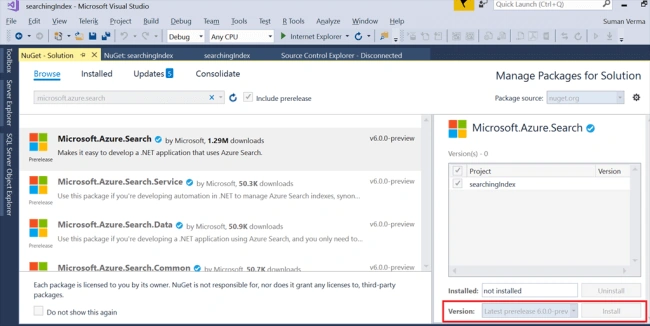

Search for Microsoft.azure.search

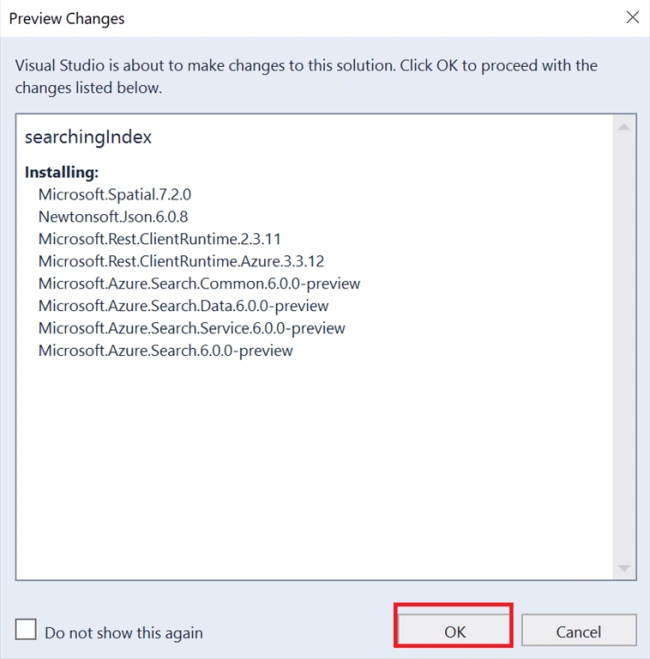

Click on Install,

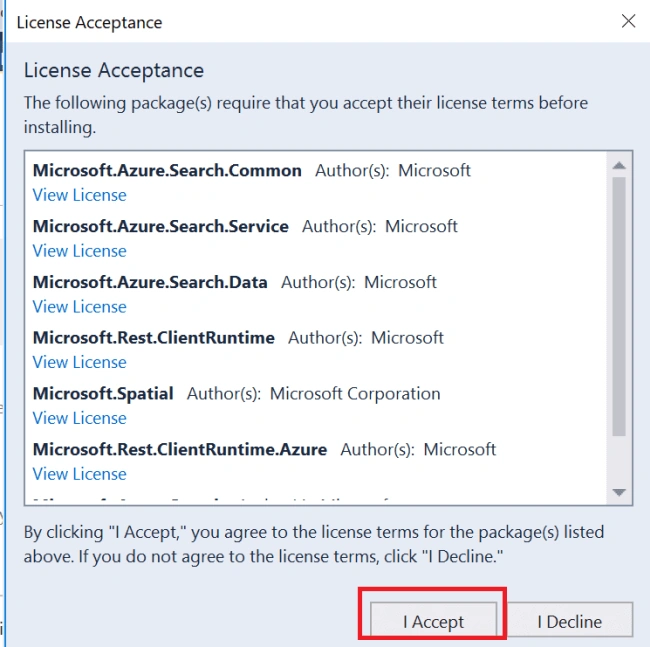

Click on Accept,

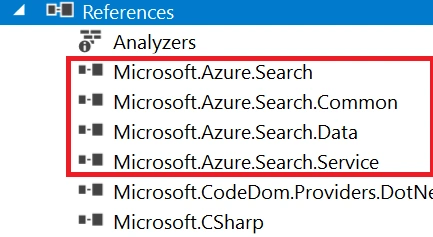

Microsoft.Azure.Search is installed successfully as shown.

STEP 3 - Add Reference for System.Net.Http

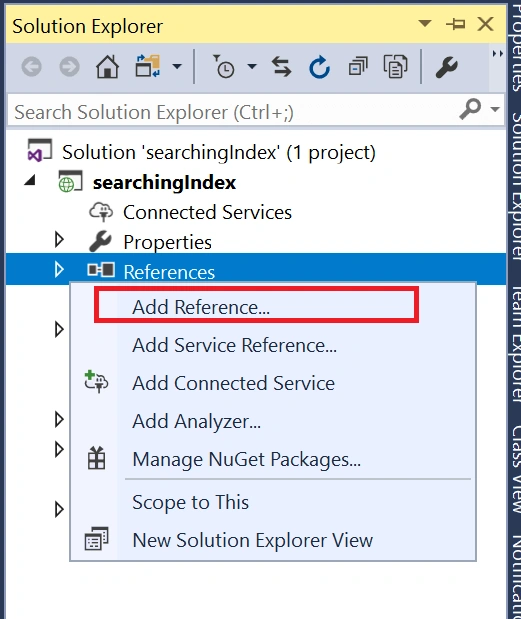

Right click on references -> add reference

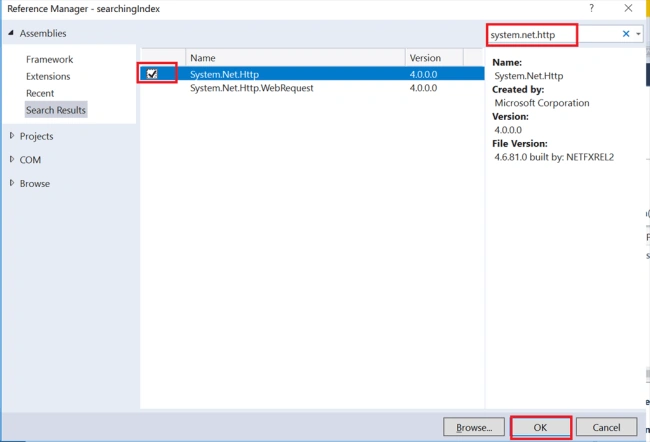

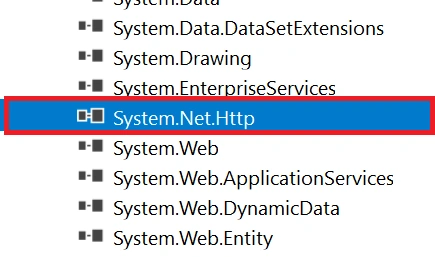

Search System.Net.Http and click ok

Reference added successfully in solution.

STEP 4 - Add a new empty controller

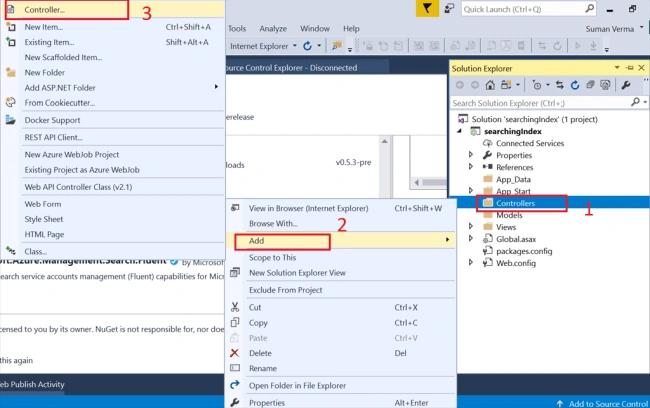

Right click on Controller folder -> click on Add -> Select Controller as shown.

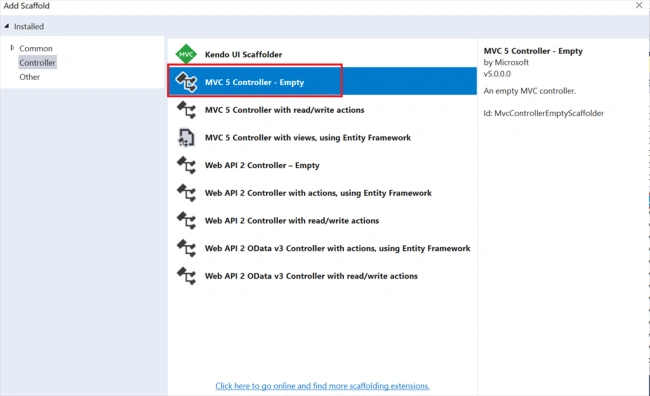

Select MVC 5 controller - Empty

Name the controller as “HomeController” and click on Add.

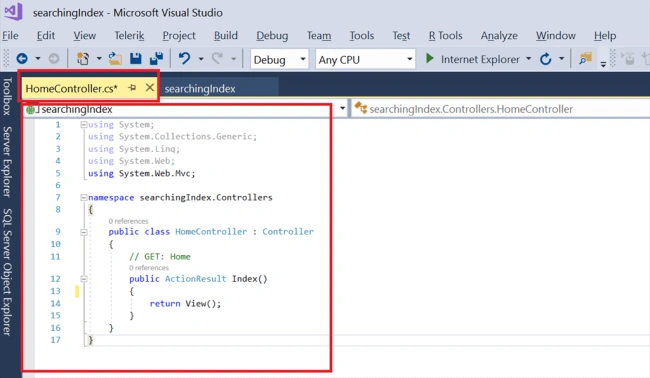

Controller created as shown

STEP 5 - Declare Service Name

Define a variable to hold service name as we created in the Azure portal.

1. //declare serch service name - host portion of search service URL in azure portal
2. var sSearchService = "stestsearchservice";

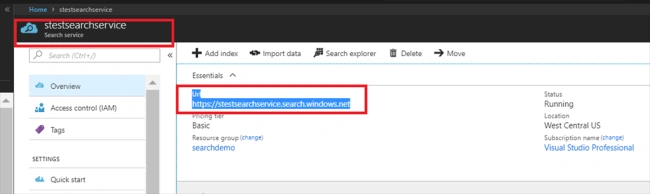

The service name is the host portion of search service URL in Azure portal

STEP 6 - Declare apiKey

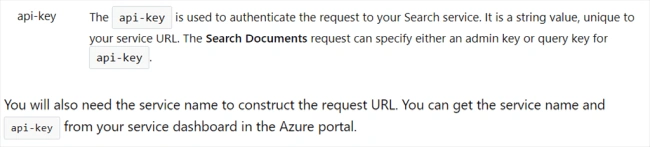

As specified on MSDN about api-Key

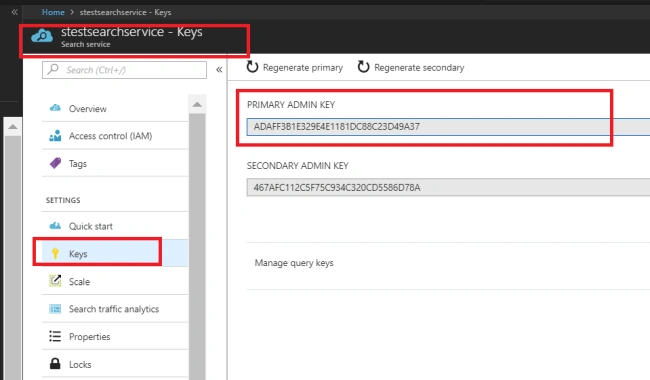

So under Azure search service -> click on keys – Copy Primary admin key

Use that apiKey here in the code.

1. public ActionResult Index() {
2. //declare serch service name - host portion of search service URL in azure portal
3. var sSearchService = "stestsearchservice";
4. // apiKey here
5. var sApiKey = "ADAFF3B1E329E4E1181DC88C23D49A37";
6. //search client
7. var sSearchClient = new SearchServiceClient(sSearchService, new SearchCredentials(sApiKey));
8. //index client
9. var sIndexClient = sSearchClient.Indexes.GetClient("azuresql-index");
10. //define serach parameters
11. SearchParameters sp = new SearchParameters() {
12. SearchMode = SearchMode.All
13. };
14. //Grab collection of documents
15. var sDocs = sIndexClient.Documents.Search("Affordable Sports Equipment", sp);
16. return Json(sDocs.Results, JsonRequestBehavior.AllowGet);
17. }

STEP 7 - Search Service Client

Define the Search client [ import Microsoft.Azure.Search namespace]

Pass the ‘searchServiceName’ and ‘searchCredentials’ to searchServiceClient class as shown.

1. public ActionResult Index() {
2. //declare serch service name - host portion of search service URL in azure portal
3. var sSearchService = "stestsearchservice";
4. // apiKey here
5. var sApiKey = "ADAFF3B1E329E4E1181DC88C23D49A37";
6. //search client
7. var sSearchClient = new SearchServiceClient(sSearchService, new SearchCredentials(sApiKey));
8. //index client
9. var sIndexClient = sSearchClient.Indexes.GetClient("azuresql-index");
10. //define serach parameters
11. SearchParameters sp = new SearchParameters() {
12. SearchMode = SearchMode.All
13. };
14. //Grab collection of documents
15. var sDocs = sIndexClient.Documents.Search("Affordable Sports Equipment", sp);
16. return Json(sDocs.Results, JsonRequestBehavior.AllowGet);
17. }

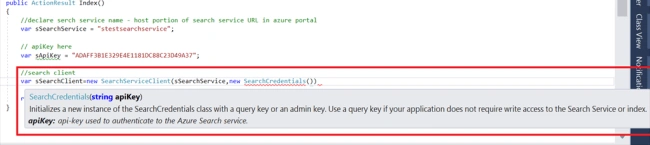

Inside SearchCredentials we need to specify apiKey which is used to authenticate Azure Search service,

STEP 8 - Index Client

Now we are going to get index using searchSearvieclient and the using that index we will get Index client.

Index client is used to manage documents and query inside a specified index.

1. public ActionResult Index() {
2. //declare serch service name - host portion of search service URL in azure portal
3. var sSearchService = "stestsearchservice";
4. // apiKey here
5. var sApiKey = "ADAFF3B1E329E4E1181DC88C23D49A37";
6. //search client
7. var sSearchClient = new SearchServiceClient(sSearchService, new SearchCredentials(sApiKey));
8. //index client
9. var sIndexClient = sSearchClient.Indexes.GetClient("azuresql-index");
10. //define serach parameters
11. SearchParameters sp = new SearchParameters() {
12. SearchMode = SearchMode.All
13. };
14. //Grab collection of documents
15. var sDocs = sIndexClient.Documents.Search("Affordable Sports Equipment", sp);
16. return Json(sDocs.Results, JsonRequestBehavior.AllowGet);
17. }

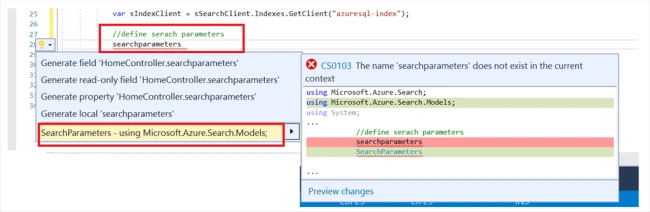

STEP 9 - Define Search Parameters

There are two types of search modes,

1. All
2. Any (Default)

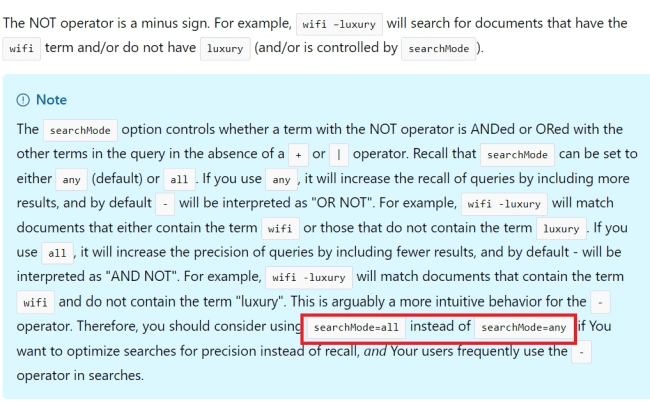

The following offers a good explanation:

To read more about operators in simple query syntax read here,

Specify the string you want to search

Instead of returning view, I’ll return Json:

1. public ActionResult Index() {
2. //declare serch service name - host portion of search service URL in azure portal
3. var sSearchService = "stestsearchservice";
4. // apiKey here
5. var sApiKey = "ADAFF3B1E329E4E1181DC88C23D49A37";
6. //search client
7. var sSearchClient = new SearchServiceClient(sSearchService, new SearchCredentials(sApiKey));
8. //index client
9. var sIndexClient = sSearchClient.Indexes.GetClient("azuresql-index");
10. //define serach parameters
11. SearchParameters sp = new SearchParameters() {
12. SearchMode = SearchMode.All
13. };
14. //Grab collection of documents
15. var sDocs = sIndexClient.Documents.Search("Affordable Sports Equipment", sp);
16. return Json(sDocs.Results, JsonRequestBehavior.AllowGet);
17. }

Run the solution, and we will get the search result in json as we saw in the portal.

Summary

In this article we saw,

• How to search in Azure portal using simple query string
• How to create a Visual Studio solution for searching

In the next article I’ll show you how to use $filter in searching the documents.

Keep reading!!!
