Offline + Sync System: Angular IndexedDB + ASP.NET Core Sync API

Introduction

In today’s connected world, users expect applications to work seamlessly even without the internet. Whether it's a field service app, warehouse system, or inspection tool — offline-first experiences are a must.

Most developers use cloud APIs that fail when there’s no internet. But what if you could still let users:

View and edit their data offline
Automatically sync changes when back online

That’s exactly what we’ll build using:
✅ IndexedDB on the Angular side for offline storage
✅ ASP.NET Core Sync API for synchronization when the network is available

This architecture combines the power of local browser storage with intelligent server sync, giving a smooth, reliable user experience.

1. The Problem

In traditional web apps:

All CRUD operations go to the server.
If the user loses the internet, everything breaks.
Data entry or updates are lost until reconnection.

This can be a huge problem for mobile and remote teams.

Goal:
Make the Angular app work offline and automatically sync when the user reconnects.

2. The Solution Architecture

We’ll use the following technologies:

Angular IndexedDB – to store local data (tables like customers, orders, etc.)
ASP.NET Core API – to store data on the server
Sync Logic – to detect changes and update both sides intelligently

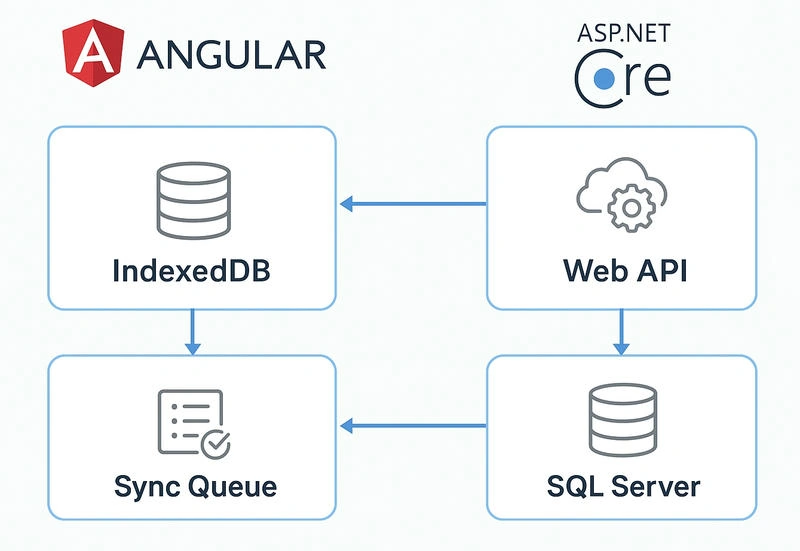

Architecture Flow

+---------------------------+                +-----------------------------+
| Angular Frontend (Browser)|                | ASP.NET Core Web API Server |
+---------------------------+                +-----------------------------+
| IndexedDB (Offline Store) | <--- Sync ---> | SQL Server (Central Store)  |
| - Orders                  |                | - Orders Table              |
| - Customers               |                | - Sync Logs Table           |
| - Changes Queue           |                | - Conflict Resolver         |
+---------------------------+                +-----------------------------+
        ^        |
        |        v
 Offline CRUD   Sync Trigger
 (user actions) (on reconnect)

3. How It Works (Step-by-Step Flow)

Step 1: User Works Offline

All user data (like creating orders, updating records) is stored in IndexedDB.
API calls are queued for later when internet returns.

Step 2: Connectivity Restored

The app detects network availability.
It sends pending changes to the ASP.NET Core Sync API.
The server processes and updates the main database.

Step 3: Sync Response

The API returns updated records (including IDs, timestamps).
The Angular app updates its local IndexedDB data accordingly.

4. Implementing IndexedDB in Angular

We can use ngx-indexed-db or the native IndexedDB API.

Installation

npm install ngx-indexed-db

Set up in app.module.ts

import { NgxIndexedDBModule, DBConfig } from 'ngx-indexed-db';

const dbConfig: DBConfig = {
  name: 'OfflineSyncDB',
  version: 1,
  objectStoresMeta: [
    {
      store: 'orders',
      storeConfig: { keyPath: 'id', autoIncrement: true },
      storeSchema: [
        { name: 'customerName', keypath: 'customerName', options: { unique: false } },
        { name: 'status', keypath: 'status', options: { unique: false } }
      ]
    },
    {
      store: 'syncQueue',
      storeConfig: { keyPath: 'id', autoIncrement: true },
      storeSchema: [
        { name: 'action', keypath: 'action', options: { unique: false } },
        { name: 'data', keypath: 'data', options: { unique: false } }
      ]
    }
  ]
};

@NgModule({
  imports: [
    NgxIndexedDBModule.forRoot(dbConfig)
  ]
})
export class AppModule { }

Adding Data Offline

this.dbService.add('orders', {
  customerName: 'John Doe',
  status: 'Pending'
}).subscribe(() => {
  console.log('Order saved offline');
});

Queue Changes When Offline

When the network is unavailable:

this.dbService.add('syncQueue', {
  action: 'ADD_ORDER',
  data: orderObject
});

When the app comes back online:

Read the syncQueue
Send items to the API
Clear successfully synced items

5. Sync API in ASP.NET Core

Step 1: Create Controller

[ApiController]
[Route("api/[controller]")]
public class SyncController : ControllerBase
{
    private readonly AppDbContext _context;

    public SyncController(AppDbContext context)
    {
        _context = context;
    }

    [HttpPost("sync-orders")]
    public async Task<IActionResult> SyncOrders([FromBody] List<OrderDto> orders)
    {
        foreach (var order in orders)
        {
            var existing = await _context.Orders
                .FirstOrDefaultAsync(o => o.LocalId == order.LocalId);

            if (existing == null)
            {
                _context.Orders.Add(new Order
                {
                    LocalId = order.LocalId,
                    CustomerName = order.CustomerName,
                    Status = order.Status,
                    LastModified = DateTime.UtcNow
                });
            }
            else
            {
                existing.Status = order.Status;
                existing.LastModified = DateTime.UtcNow;
            }
        }

        await _context.SaveChangesAsync();
        return Ok(new { message = "Sync complete" });
    }
}

Step 2: Sync Log Table (Optional)

CREATE TABLE SyncLogs (
    SyncId INT IDENTITY PRIMARY KEY,
    TableName NVARCHAR(100),
    SyncedAt DATETIME,
    RecordsSynced INT
)

This helps track how many records were synced and when.

6. Network Detection in Angular

Use window.navigator.onLine or RxJS fromEvent to detect network status.

fromEvent(window, 'online').subscribe(() => {
  this.syncPendingData();
});

fromEvent(window, 'offline').subscribe(() => {
  console.log('App is offline, storing data locally...');
});

7. Conflict Handling

Conflicts occur when:

The same record is modified both offline and online before sync.

You can handle this by comparing:

LastModified timestamp from client and server
If conflict → prefer latest update or ask the user

8. Real-World Use Cases

Industry	Example Use Case
Field Operations	Workers collect data in remote areas
Warehouse Apps	Barcode scanning when Wi-Fi drops
Medical	Recording patient data offline
Retail	Mobile billing in store basements
Inspection	Offline checklist with later sync

9. Advantages

Feature	Benefit
Works Offline	Full functionality without internet
Reliable Sync	Auto-updates when connected
Performance	Faster local operations
User Experience	No data loss or downtime
Scalable	Works for large data sets

10. Security Considerations

Always encrypt sensitive data in IndexedDB.
Use JWT Authentication during sync API calls.
Validate all incoming records on the server.

Conclusion

Offline-first architecture is no longer optional — it’s a necessity for modern web apps.

By using Angular’s IndexedDB and a smart ASP.NET Core Sync API, you can:

Allow users to work anytime, anywhere.
Ensure data consistency and reliability.
Create a seamless online-offline experience.

It’s lightweight, scalable, and production-ready — all with native web technologies.
