Pre-requisite to understand this

To fully understand mTLS in Azure, you should be familiar with:

Introduction

Mutual TLS (mTLS) is an authentication mechanism where both client and server authenticate each other using X.509 certificates.

In Azure, mTLS is commonly implemented using:

What problem can we solve with mTLS?

mTLS addresses several security challenges inherent in service-to-service communication. Traditional mechanisms such as API keys, shared secrets, or OAuth tokens can be leaked, replayed, or misused if compromised. IP whitelisting is inflexible and difficult to maintain in dynamic cloud environments. mTLS solves these problems by providing cryptographic proof of identity for both parties, eliminating shared secrets and significantly reducing the attack surface. It protects against man-in-the-middle attacks and ensures that only services with valid, trusted certificates can communicate.

Problems with traditional authentication:

mTLS solves:

Typical use cases in Azure:

In Azure, mTLS is widely used for securing internal microservice communication, especially in AKS-based architectures where services need strong identity verification without relying on external identity providers. It is also commonly adopted for B2B integrations, where partner systems authenticate using client certificates instead of credentials. Financial, healthcare, and regulated industries use mTLS to meet strict compliance requirements. Additionally, mTLS is often applied to protect internal APIs exposed through Azure API Management or Application Gateway, ensuring that only authorized workloads or applications can access sensitive endpoints.

How to implement this?

Certificate Authority Setup

Implementing mTLS in Azure starts with establishing a trusted Certificate Authority, which can be an internal enterprise CA, an external trusted CA, or certificates managed through Azure Key Vault. The CA issues server certificates for Azure gateways and client certificates for calling services. These certificates, along with their private keys, are securely stored in Azure Key Vault, which provides lifecycle management, rotation, and access control through Azure RBAC and Managed Identities. Azure Application Gateway, API Management, or Front Door is then configured to terminate TLS using the server certificate retrieved from Key Vault and to enforce client certificate authentication by trusting specific CA chains. When a client sends a request, it presents its certificate during the TLS handshake, which the gateway validates against the trusted CA. The request is then forwarded to the backend service, which can optionally perform additional validation such as checking the certificate thumbprint, issuer, or subject before processing the request.

Certificates involved:

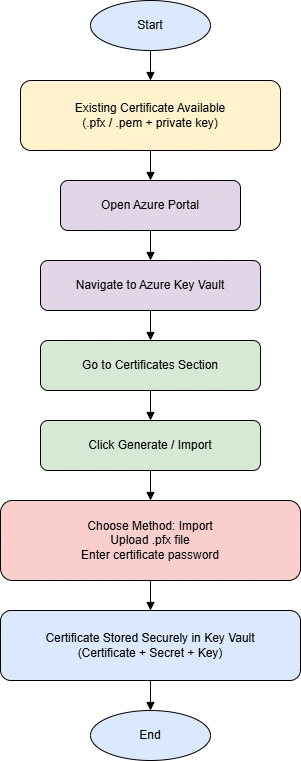

The flowchart shows how an existing TLS certificate (.pfx) is securely imported into Azure Key Vault and stored as a managed certificate with controlled access.

azureKeyValut

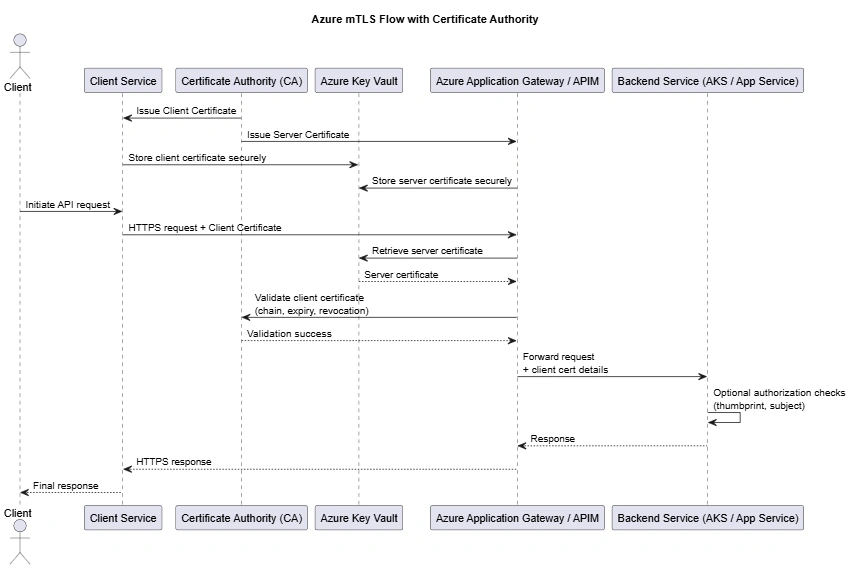

Azure mTLS flow with Certificate Authority


Advantages

Summary

Mutual TLS in Azure provides a robust and enterprise-grade approach to securing service-to-service communication by ensuring that both clients and servers authenticate each other using certificates. By leveraging a trusted Certificate Authority, Azure Key Vault for secure certificate management, and Azure gateways for TLS termination and enforcement, organizations can implement a scalable and highly secure architecture. mTLS reduces the risk of credential leakage, supports Zero Trust principles, and is particularly well-suited for microservices, B2B integrations, and regulated workloads running in Azure.

In short: Azure + mTLS = Secure, scalable, and enterprise-grade service-to-service authentication
