Here are the steps,

Step 1

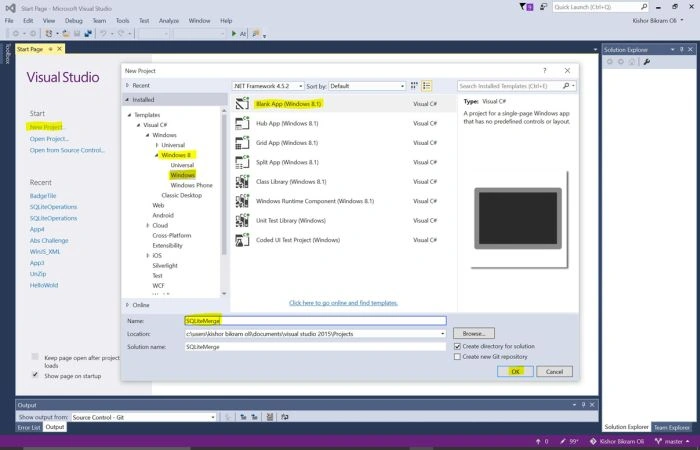

Firstly, Create a Blank Windows Project.



Step 2

Install ‘sqlite-net’ from the Package manager and also Add reference for ‘SQLite for Windows Runtime’.

In the MainPage.xaml, we add the following buttons with click events-

Complete XAML code

  1. <Page
  2. x:Class="SQLiteMerge.MainPage"
  3. xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
  4. xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
  5. xmlns:local="using:SQLiteMerge"
  6. xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
  7. xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
  8. mc:Ignorable="d">
  9. <Grid Background="#FF5A7FD6">
  10. <Button x:Name="btnCreateFirstDb" Content="Create First Database" HorizontalAlignment="Left" Margin="154,97,0,0" VerticalAlignment="Top" Width="440" Height="77" Click="btnCreateFirstDb_Click"/>
  11. <Button x:Name="btnCreateSecondDb" Content="Create Second Database" HorizontalAlignment="Left" Margin="148,206,0,0" VerticalAlignment="Top" Width="446" Height="77" Click="btnCreateSecondDb_Click"/>
  12. <Button x:Name="btnMerge" Content="Merge Two Database" HorizontalAlignment="Left" Margin="154,316,0,0" VerticalAlignment="Top" Width="446" Height="77" Click="btnMerge_Click"/>
  13. </Grid>
  14. </Page>
Step 3

In the code behind MainPage.xaml.cs, for each first two buttons we add the code for creating two Databases and a third button to merge values from second database to the first one.

Complete Code snippet
  1. using System;
  2. using System.Collections.Generic;
  3. using System.IO;
  4. using System.Linq;
  5. using System.Runtime.InteropServices.WindowsRuntime;
  6. using Windows.Foundation;
  7. using Windows.Foundation.Collections;
  8. using Windows.UI.Xaml;
  9. using Windows.UI.Xaml.Controls;
  10. using Windows.UI.Xaml.Controls.Primitives;
  11. using Windows.UI.Xaml.Data;
  12. using Windows.UI.Xaml.Input;
  13. using Windows.UI.Xaml.Media;
  14. using Windows.UI.Xaml.Navigation;
  15. using SQLite;
  16. using Windows.Storage;
  17. using System.Diagnostics;
  19. namespace SQLiteMerge
  20. {
  22. public sealed partial class MainPage : Page
  23. {
  24. private SQLiteAsyncConnection dbCon;
  26. public MainPage()
  27. {
  28. this.InitializeComponent();
  30. }
  32. [Table("Students")]
  33. public sealed class Student
  34. {
  35. public string Name { get; set; }
  36. public int RollNo { get; set; }
  37. public string Faculty { get; set; }
  38. }
  40. //Creates First Database
  41. private async void btnCreateFirstDb_Click(object sender, RoutedEventArgs e)
  42. {
  43. try
  44. {
  45. dbCon = new SQLiteAsyncConnection(ApplicationData.Current.LocalFolder.Path + "\\FirstDatabase.sqlite");
  46. await dbCon.CreateTableAsync<Student>();
  48. var student = new Student
  49. {
  50. Name = "Ram",
  51. RollNo = 1,
  52. Faculty = "Physics"
  53. };
  54. await dbCon.InsertAsync(student);
  55. }
  56. catch (Exception ex)
  57. {
  58. Debug.WriteLine(ex.ToString());
  59. }
  60. }
  62. //Creates Second Database
  63. private async void btnCreateSecondDb_Click(object sender, RoutedEventArgs e)
  64. {
  65. try
  66. {
  67. SQLiteAsyncConnection dbCon = new SQLiteAsyncConnection(ApplicationData.Current.LocalFolder.Path + "\\SecondDatabase.sqlite");
  68. await dbCon.CreateTableAsync<Student>();
  70. var student = new Student
  71. {
  72. Name = "Shyam",
  73. RollNo = 2,
  74. Faculty = "Biology"
  75. };
  76. await dbCon.InsertAsync(student);
  77. }
  78. catch (Exception ex)
  79. {
  80. Debug.WriteLine(ex.ToString());
  81. }
  82. }
  84. //Merging two databases. Inserts values from Second database to First Database
  85. private async void btnMerge_Click(object sender, RoutedEventArgs e)
  86. {
  87. try
  88. {
  89. string firstDbPath = ApplicationData.Current.LocalFolder.Path + "\\FirstDatabase.sqlite";
  90. string secondDbPath = ApplicationData.Current.LocalFolder.Path + "\\SecondDatabase.sqlite";
  91. await dbCon.ExecuteAsync("ATTACH DATABASE '" + firstDbPath + "' AS firstDB;");
  92. await dbCon.ExecuteAsync("ATTACH DATABASE '" + secondDbPath + "' AS secondDB");
  94. string query = "INSERT OR REPLACE INTO firstDB.Students ("
  95. + "Name, RollNo, Faculty) "
  96. + "SELECT Name, RollNo, Faculty "
  97. + "FROM secondDB.Students";
  98. await dbCon.ExecuteAsync(query);
  99. }
  100. catch (Exception ex)
  101. {
  102. Debug.WriteLine(ex.ToString());
  103. }
  104. }
  105. }
  106. }
Step 4

Run the application.

Click on Create First Database button. You will see the first SQLite database created in local folder. (This PC > C > Users > [Your User Name] > AppData > Local > Packages > [App package name] > LocalState)




Click on Create Second Database button. You will see the second SQLite database created in local folder. (This PC > C > Users > [Your User Name] > AppData > Local > Packages > [App package name] > LocalState)



Finally Click on Merge two databases button, you will see the values from second database merged into first database.



You can get the complete project from GitHub https://github.com/olikishor/SQLiteMerge
