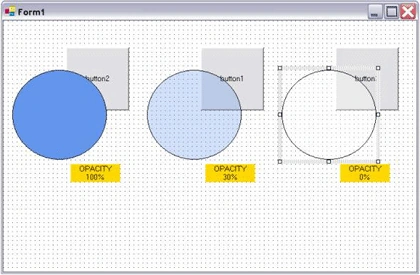

This article provides an approach to a Transparent Control that draws an ellipse with real transparent background and a brush that supports transparent colors.
Below sample project is included in the ZIP file. In addition, you will find a file that contains the control TranspControl.ddl. It was made and based on technique presented in this article.
To make a transparent control you may create a default control and proceed with the following steps:
1. Add the transparent style to the control window.
Protected override CreateParams CreateParams
{
get
{
CreateParams cp = base.CreateParams;
cp.ExStyle |= 0x20;
return cp;
}
}
Protected override void OnPaintBackground(PaintEventArgs e)
{
// do nothing
}
Protected override void OnMove(EventArgs e)
{
RecriateHandle();
}
HerbPosted Jul 1, 2013, 3:39 PM
First: No Source-Code, Second: WTF ? If u hover the Buttons transparency is over ... useless
Matthew MorrowPosted Feb 11, 2010, 6:07 PM
where is the code to the dll?
marwijn hesselPosted Nov 30, 2008, 7:56 AM
namespace Sample_Project { using System; using System.Drawing; using System.Windows.Forms; public class TranspControl : Control { // Fields private Color brushColor = Color.Transparent; private Timer delay = new Timer(); private int opacity = 100; // Methods public TranspControl() { this.delay.Tick += new EventHandler(this.TimerOnTick); this.delay.Enabled = true; this.delay.Interval = 50; } protected override void OnMove(EventArgs e) { base.RecreateHandle(); } protected override void OnPaint(PaintEventArgs e) { int num; Graphics graphics = e.Graphics; Rectangle rect = new Rectangle(0, 0, base.Width - 1, base.Height - 1); Color brushColor = this.brushColor; if (brushColor == Color.Transparent) { num = 0; } else { num = (this.opacity * 0xff) / 100; } Pen pen = new Pen(Color.Black); SolidBrush brush = new SolidBrush(Color.FromArgb(num, brushColor)); graphics.FillEllipse(brush, rect); graphics.DrawEllipse(pen, rect); pen.Dispose(); brush.Dispose(); graphics.Dispose(); } protected override void OnPaintBackground(PaintEventArgs e) { } private void TimerOnTick(object source, EventArgs e) { base.RecreateHandle(); this.delay.Stop(); } // Properties public Color BrushColor { get { return this.brushColor; } set { this.brushColor = value; base.RecreateHandle(); } } protected override CreateParams CreateParams { get { CreateParams createParams = base.CreateParams; createParams.ExStyle |= 0x20; return createParams; } } public int Opacity { get { if (this.opacity > 100) { this.opacity = 100; } else if (this.opacity < 0) { this.opacity = 0; } return this.opacity; } set { this.opacity = value; base.RecreateHandle(); } } } }
JonPosted Jun 14, 2007, 11:33 AM
The zip file doesn't include the source code for the control! Worthless...
