ProgressBar control

ProgressBar indicates that some operation is going on in the background. Just update the graphical indication in the GUI, ex: Copy one folder to another folder. Windows OS shows in one popup window what’s going on.

In this article, I am going to explain how to implement ProgressBar control in Modern C++/WinRT.

ProgressBar has divided into two types.

  1. Repeating Style(Pattern)
  2. ProgressBar fill based on the value;

ProgressBar Repeating Style

To implement the repeating style, set IsIndeterminate value as true. That’s it. It will display the indication like below.

  1. ProgressBar pBar;
  2. pBar.IsIndeterminate(true);
  3. pBar.Foreground(SolidColorBrush(Colors::Red()));

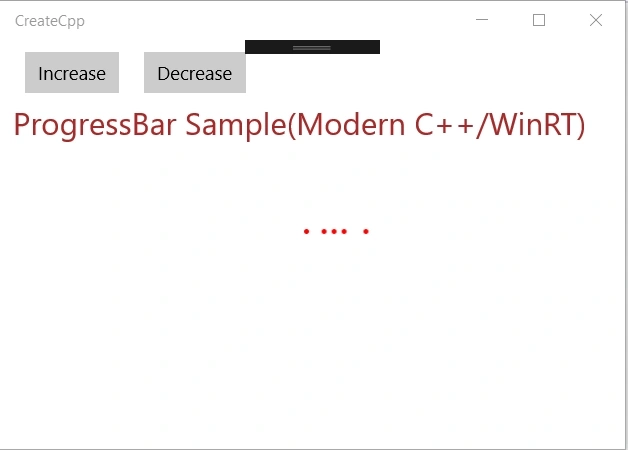

Output

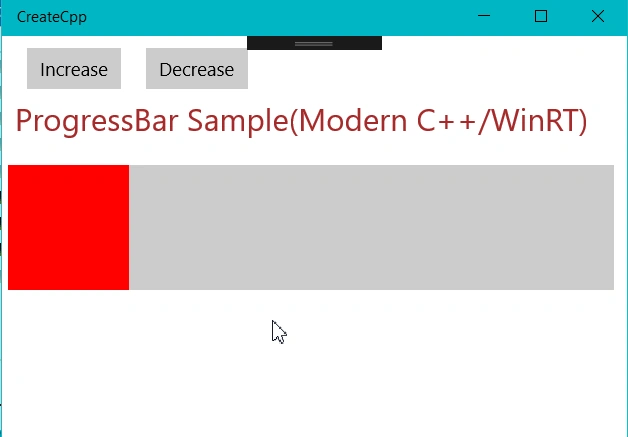

ProgressBar is filled based on the value

This feature shows the percentage as a status (Fill the value) based on the value. To use this feature, we have to set the three important properties as given below.

Properties

  • Minimum - Minimum value for Bar value
  • Maximum - Maximum value for Bar.
  • Value - Value is indicated current fill value (how many percents it has completed)

Note - Value property should be within Minimum and Maximum range.

  1. ProgressBar pBar;
  2. pBar.Minimum(0);
  3. pBar.Maximum(100);
  4. pBar.Value(value);

Let's see one simple example

Concept: If the background work ( Background: Click the button ) is completed 40%, then show percentage as RedColor. If 80% is completed, show it in yellow color, and if it is 100% completed, show the green color in the ProgressBar control.

  1. #include "pch.h"
  3. using namespace winrt;
  4. using namespace Windows::ApplicationModel;
  5. using namespace Windows::ApplicationModel::Activation;
  6. using namespace Windows::Foundation;
  7. using namespace Windows::UI;
  8. using namespace Windows::UI::Xaml;
  9. using namespace Windows::UI::Xaml::Controls;
  10. using namespace Windows::UI::Xaml::Controls::Primitives;
  11. using namespace Windows::UI::Xaml::Interop;
  12. using namespace Windows::UI::Xaml::Navigation;
  13. using namespace Windows::UI::Xaml::Media;
  14. using namespace Windows::Media;
  15. using namespace Windows::Media::Core;
  16. using namespace Windows::Storage;
  17. using namespace Windows::Storage::Pickers;
  20. struct App :ApplicationT<App>
  21. {
  22. TextBlock txtStatus;
  23. ProgressBar pBar;
  24. int value = 20;
  26. IInspectable CreateInspectable(hstring strCaption)
  27. {
  28. return PropertyValue::CreateString(strCaption);
  29. }
  31. void BtnClick(IInspectable const & sender, const RoutedEventArgs &args)
  32. {
  34. Button btnTag = sender.as<Button>();
  36. pBar.ShowError(false);
  38. auto demo = btnTag.Tag();
  40. IPropertyValue tagId = btnTag.Tag().as<IPropertyValue>();
  42. if(tagId.GetInt16() == 1)
  43. {
  44. value += 10;
  45. if (value > 100)
  46. value = 0;
  47. }
  48. else if (tagId.GetInt16() == 2)
  49. {
  50. value -= 10;
  51. if (value < 0)
  52. value = 0;
  53. }
  54. else if (tagId.GetInt16() == 3)
  55. {
  56. pBar.ShowError(true);
  57. }
  59. if (value <= 40)
  60. pBar.Foreground(SolidColorBrush(Colors::Red()));
  62. else if (value <= 80)
  63. pBar.Foreground(SolidColorBrush(Colors::Yellow()));
  64. else if (value <= 100)
  65. pBar.Foreground(SolidColorBrush(Colors::Green()));
  66. pBar.Value(value);
  67. }
  69. TextBlock CreateTextBlock(hstring text)
  70. {
  71. TextBlock txtBlock;
  72. txtBlock.Text(text);
  73. txtBlock.FontFamily(FontFamily(L"Segoe UI Semibold"));
  74. txtBlock.TextAlignment(TextAlignment::Left);
  75. txtBlock.FontSize(35);
  76. txtBlock.Foreground(SolidColorBrush(Colors::Brown()));
  77. txtBlock.Margin(CreateThickness(10, 10, 0, 0));
  78. return txtBlock;
  79. }
  81. Thickness CreateThickness(int left, int top, int right, int bottom)
  82. {
  83. Thickness thick;
  84. thick.Left = left;
  85. thick.Top = top;
  86. thick.Right = right;
  87. thick.Bottom = bottom;
  88. return thick;
  89. }
  92. void OnLaunched(LaunchActivatedEventArgs const&)
  93. {
  95. Button BtnIncrease,BtnDecrease,BtnError;
  96. auto captionText = PropertyValue::CreateString(L"Increase");
  97. BtnIncrease.Content(captionText);
  98. BtnIncrease.Click({ this,&App::BtnClick });
  99. BtnIncrease.Margin(CreateThickness(20, 10, 0, 0));
  100. BtnIncrease.Tag(PropertyValue::CreateInt32(1));
  102. captionText = PropertyValue::CreateString(L"Decrease");
  103. BtnDecrease.Content(captionText);
  104. BtnDecrease.Click({ this,&App::BtnClick });
  105. BtnDecrease.Margin(CreateThickness(20, 10, 0, 0));
  106. BtnDecrease.Tag(PropertyValue::CreateInt32(2));
  108. auto txtheader = CreateTextBlock(L"ProgressBar Sample(Modern C++/WinRT)");
  109. txtheader.FontSize(25);
  111. StackPanel btnPanel;
  112. btnPanel.Orientation(Orientation::Horizontal);
  113. btnPanel.Children().Append(BtnIncrease);
  114. btnPanel.Children().Append(BtnDecrease);
  117. StackPanel sContentPanel;
  118. //sContentPanel.Children().Append(txtarticleheader);
  119. sContentPanel.Children().Append(btnPanel);
  120. sContentPanel.Orientation(Orientation::Vertical);
  121. sContentPanel.VerticalAlignment(VerticalAlignment::Top);
  124. pBar.Minimum(0);
  125. pBar.Maximum(100);
  126. pBar.Value(value);
  127. pBar.Height(100);
  128. pBar.Margin(CreateThickness(5, 20, 10, 0));
  129. pBar.IsIndeterminate(false);
  130. pBar.Foreground(SolidColorBrush(Colors::Red()));
  132. StackPanel mainPanel;
  133. mainPanel.Children().Append(sContentPanel);
  134. mainPanel.Children().Append(txtheader);
  135. mainPanel.Children().Append(pBar);
  139. Window window = Window::Current();
  140. window.Content(mainPanel);
  141. window.Activate();
  146. }
  147. };
  149. int __stdcall wWinMain(HINSTANCE, HINSTANCE, PWSTR, int)
  150. {
  151. Application::Start([](auto &&) {make<App>(); });
  152. return 0;
  153. }

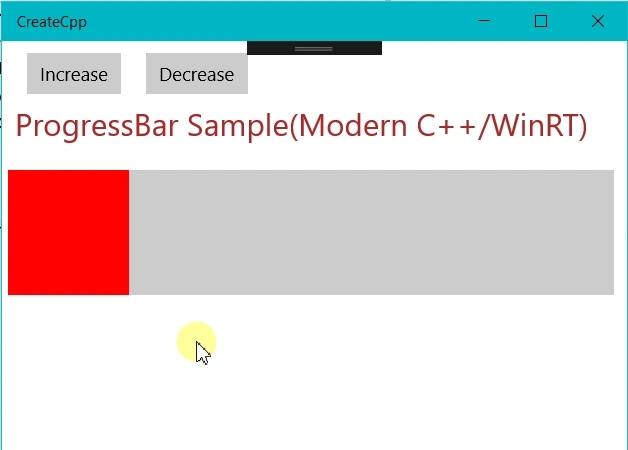

Output
The sample code is given here.

Conclusion

I hope, you understood how to use ProgressBar control.
