Learn About Views In SQL Server

In this article you will come to know about the followings things,

What is Views?
Why we should use Views?
What is System Views?
What is User Defined Views?
Syntax of User Views
Step by Step View Creation & Execution.

Single Table View

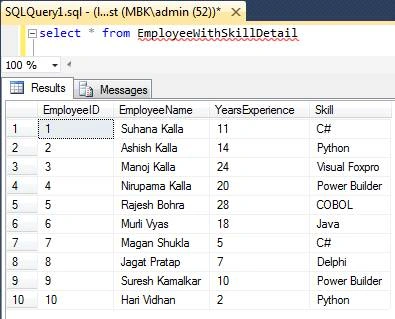

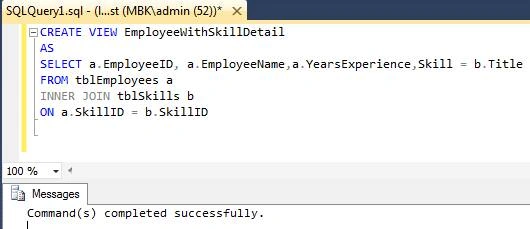

Multiple Table View

What is Views?

As the name implies, VIEWS. SQL SELECT query is created only for viewing/display purposes. Views is a virtual table only used for viewing purpose. Views is created with the help of individual table or joining of tables. In short, in view we can join the fields from one or more database tables.

You can create multiple views of one table and one view with multiple tables.

View gives you the power to decide what column(s) / fields(s) display or not. We can easily maintain and display the column(s) as per privileges of user.

Why should we use views?

Views allow administrator and user to only view the records of tables. Insert, Update and Delete functionality restriction can be implemented with views very easily; that's why we should use VIEW.

By the way Single Table View can be used to Insert, Update and Delete the records. But multiple table VIEW cannot Update, Insert and Delete the records.

What is System Views?

Those views attached with system database and provide a detailed view of System Database called System Views.

Two types of System Views,

Information Schema
Catalog View

What is User Defined Views?

The View created by a user for specific tasksare called User Defined Views.

Mostly user defined views are created on user defined database not on system database.

Syntax of User Views

Single Table View

CREATE VIEW <view_name> AS
SELECT <column1>, <column2>. . .
FROM <table>
WHERE conditions;

MultiTable View

CREATE VIEW <view_name> AS
SELECT <column1>, <column2>. . .
FROM <table> Join <Table>
WHERE conditions;

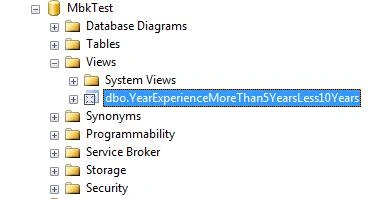

Step by Step View Creation

Create Table

---tblEmployees Create Script
USE [MbkTest]
GO
/****** Object: Table [dbo].[tblEmployees] Script Date: 26-Dec-19 12:07:27 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
SET ANSI_PADDING ON
GO
CREATE TABLE [dbo].[tblEmployees](
[EmployeeID] [int] IDENTITY(1,1) NOT NULL,
[PhoneNumber] [varchar](50) NULL,
[SkillID] [int] NULL,
[YearsExperience] [int] NULL,
[EmployeeName] [nvarchar](50) NULL,
PRIMARY KEY CLUSTERED
(
[EmployeeID] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]
GO
SET ANSI_PADDING OFF
GO
----tblSkills Create script
/****** Object: Table [dbo].[tblSkills] Script Date: 26-Dec-19 3:54:52 PM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
SET ANSI_PADDING ON
GO
CREATE TABLE [dbo].[tblSkills](
[SkillID] [int] IDENTITY(1,1) NOT NULL,
[Title] [varchar](50) NULL,
PRIMARY KEY CLUSTERED
(
[SkillID] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]
GO
SET ANSI_PADDING OFF
GO

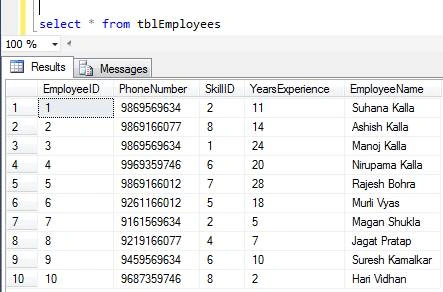

Sample Datas

---tblEmployees Sample Records
GO
SET IDENTITY_INSERT [dbo].[tblEmployees] ON
INSERT [dbo].[tblEmployees] ([EmployeeID], [PhoneNumber], [SkillID], [YearsExperience], [EmployeeName]) VALUES (1, N'9869569634', 2, 11, N'Suhana Kalla')
INSERT [dbo].[tblEmployees] ([EmployeeID], [PhoneNumber], [SkillID], [YearsExperience], [EmployeeName]) VALUES (2, N'9869166077', 8, 14, N'Ashish Kalla')
INSERT [dbo].[tblEmployees] ([EmployeeID], [PhoneNumber], [SkillID], [YearsExperience], [EmployeeName]) VALUES (3, N'9869569634', 1, 24, N'Manoj Kalla')
INSERT [dbo].[tblEmployees] ([EmployeeID], [PhoneNumber], [SkillID], [YearsExperience], [EmployeeName]) VALUES (4, N'9969359746', 6, 20, N'Nirupama Kalla')
INSERT [dbo].[tblEmployees] ([EmployeeID], [PhoneNumber], [SkillID], [YearsExperience], [EmployeeName]) VALUES (5, N'9869166012', 7, 28, N'Rajesh Bohra')
INSERT [dbo].[tblEmployees] ([EmployeeID], [PhoneNumber], [SkillID], [YearsExperience], [EmployeeName]) VALUES (6, N'9261166012', 5, 18, N'Murli Vyas')
INSERT [dbo].[tblEmployees] ([EmployeeID], [PhoneNumber], [SkillID], [YearsExperience], [EmployeeName]) VALUES (7, N'9161569634', 2, 5, N'Magan Shukla')
INSERT [dbo].[tblEmployees] ([EmployeeID], [PhoneNumber], [SkillID], [YearsExperience], [EmployeeName]) VALUES (8, N'9219166077', 4, 7, N'Jagat Pratap')
INSERT [dbo].[tblEmployees] ([EmployeeID], [PhoneNumber], [SkillID], [YearsExperience], [EmployeeName]) VALUES (9, N'9459569634', 6, 10, N'Suresh Kamalkar')
INSERT [dbo].[tblEmployees] ([EmployeeID], [PhoneNumber], [SkillID], [YearsExperience], [EmployeeName]) VALUES (10, N'9687359746', 8, 2, N'Hari Vidhan')
SET IDENTITY_INSERT [dbo].[tblEmployees] OFF
---tblSkills Sample Records
SET IDENTITY_INSERT [dbo].[tblSkills] ON
INSERT [dbo].[tblSkills] ([SkillID], [Title]) VALUES (1, N'Visual Foxpro')
INSERT [dbo].[tblSkills] ([SkillID], [Title]) VALUES (2, N'C#')
INSERT [dbo].[tblSkills] ([SkillID], [Title]) VALUES (3, N'VB.NET')
INSERT [dbo].[tblSkills] ([SkillID], [Title]) VALUES (4, N'Delphi')
INSERT [dbo].[tblSkills] ([SkillID], [Title]) VALUES (5, N'Java')
INSERT [dbo].[tblSkills] ([SkillID], [Title]) VALUES (6, N'Power Builder')
INSERT [dbo].[tblSkills] ([SkillID], [Title]) VALUES (7, N'COBOL')
INSERT [dbo].[tblSkills] ([SkillID], [Title]) VALUES (8, N'Python')
SET IDENTITY_INSERT [dbo].[tblSkills] OFF

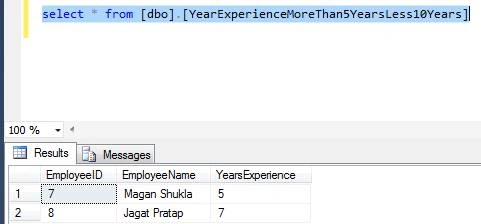

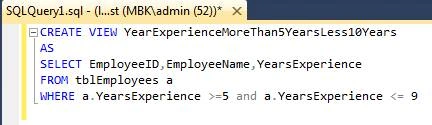

Creating Single Table View

You can see in view we had used a single table called tblEmployees and only three columns are shown in output. Columns are EmployeeID, EmployeeName, and YearsExperience.

VIEW COMMAND
