Introduction

This article shows how to add several features on a frame using Java. The example in this article opens multiple frames from a single frame using menu items. Let's proceed to explore the Frame features of Java.

Frame in Java

First of all one should know what exactly a Frame is. Frame is a class of the java.awt package. A Frame is a resizable and movable window with a title bar and maximize, minimize and close buttons. A Frame is a container that can have MenuBars, MenuItems and some other components like label, button, textfield, radio button and so on. A Frame is the most important component of the Abstract Window Toolkit (AWT) that is treated as a complete window for specific software.

How to Create a Frame in Java

A Frame can be created in one of two ways. By adapting any of the following two ways, we will be able to get a Frame. The two ways are:
  1. By following the simple concept of inheritance i.e., by extending the Frame class. We will be considering this method in the article for demonstration purposes and will get a brief idea of it.
  2. By creating an object of the Frame class, in other words using association.
If the second way is adapted then the following concepts are to be considered.
Constructor of Frame class
Methods of the Frame class
Frame Application
In this application, there is a Frame whose menu retrieves two other Frames with different Fields inside it. These Frames contain different Labels and TextFields to collect the individual's information. The source code is as follows:
Source Code
  1. import java.awt.*;
  2. import java.awt.event.*;
  3. class prg1 extends Frame implements ActionListener
  4. {
  5. MenuBar mb;
  6. MenuItem mi1, mi2;
  7. Menu m1;
  8. Label l1, l2;
  9. public prg1()
  10. {
  11. setLayout(new FlowLayout());
  12. mb = new MenuBar();
  13. m1 = new Menu("Frame");
  14. mb.add(m1);
  15. mi1 = new MenuItem("Frame1");
  16. m1.add(mi1);
  17. mi2 = new MenuItem("Frame2");
  18. m1.add(mi2);
  19. l1 = new Label("To Fill personal perticulars go to Frame1");
  20. l2 = new Label("To fill general perticulars go to Frame2");
  21. add(l1);
  22. add(l2);
  23. mi1.addActionListener(this);
  24. mi2.addActionListener(this);
  25. setMenuBar(mb);
  26. }
  27. public void actionPerformed(ActionEvent e)
  28. {
  29. if (e.getSource() == mi1)
  30. {
  31. prg2 p = new prg2();
  32. p.setSize(300, 300);
  33. p.setVisible(true);
  34. }
  35. if (e.getSource() == mi2)
  36. {
  37. prg3 p1 = new prg3();
  38. p1.setSize(300, 300);
  39. p1.setVisible(true);
  40. }
  41. }
  42. }
  43. class prg2 extends Frame implements WindowListener
  44. {
  45. Label l, b1, b2, b3, b4, b5;
  46. TextField t1, t2, t3, t4, t5;
  47. public prg2()
  48. {
  49. setLayout(new FlowLayout());
  50. l = new Label("this is frame 1");
  51. b1 = new Label("First Name");
  52. b2 = new Label("Last Name");
  53. b3 = new Label("Father's Name");
  54. b4 = new Label("Date of Birth");
  55. b5 = new Label("Qualification");
  56. t1 = new TextField(20);
  57. t2 = new TextField(20);
  58. t3 = new TextField(20);
  59. t4 = new TextField(20);
  60. t5 = new TextField(20);
  61. add(l);
  62. add(b1);
  63. add(t1);
  64. add(b2);
  65. add(t2);
  66. add(b3);
  67. add(t3);
  68. add(b4);
  69. add(t4);
  70. add(b5);
  71. add(t5);
  72. addWindowListener(this);
  73. }
  74. public void windowActivated(WindowEvent e)
  75. {
  76. }
  77. public void windowDeactivated(WindowEvent e)
  78. {
  79. }
  80. public void windowOpened(WindowEvent e)
  81. {
  82. }
  83. public void windowClosed(WindowEvent e)
  84. {
  85. }
  86. public void windowClosing(WindowEvent e)
  87. {
  88. setVisible(false);
  89. }
  90. public void windowIconified(WindowEvent e)
  91. {
  92. }
  93. public void windowDeiconified(WindowEvent e)
  94. {
  95. }
  96. }
  97. class prg3 extends Frame implements WindowListener
  98. {
  99. Label l, b1, b2, b3, b4;
  100. TextField t1, t2, t3, t4;
  101. public prg3()
  102. {
  103. setLayout(new FlowLayout());
  104. l = new Label("this is frame 2");
  105. b1 = new Label("Sports");
  106. b2 = new Label("Hobbies");
  107. b3 = new Label("Arts");
  108. b4 = new Label("Other Intrests");
  109. t1 = new TextField(20);
  110. t2 = new TextField(20);
  111. t3 = new TextField(20);
  112. t4 = new TextField(20);
  113. add(l);
  114. add(b1);
  115. add(t1);
  116. add(b2);
  117. add(t2);
  118. add(b3);
  119. add(t3);
  120. add(b4);
  121. add(t4);
  122. addWindowListener(this);
  123. }
  124. public void windowActivated(WindowEvent e)
  125. {
  126. }
  127. public void windowDeactivated(WindowEvent e)
  128. {
  129. }
  130. public void windowOpened(WindowEvent e)
  131. {
  132. }
  133. public void windowClosed(WindowEvent e)
  134. {
  135. }
  136. public void windowClosing(WindowEvent e)
  137. {
  138. setVisible(false);
  139. }
  140. public void windowIconified(WindowEvent e)
  141. {
  142. }
  143. public void windowDeiconified(WindowEvent e)
  144. {
  145. }
  146. }
  147. class callFrm
  148. {
  149. public static void main(String arg[])
  150. {
  151. prg1 p = new prg1();
  152. p.setSize(300, 300);
  153. p.setVisible(true);
  154. }
  155. }

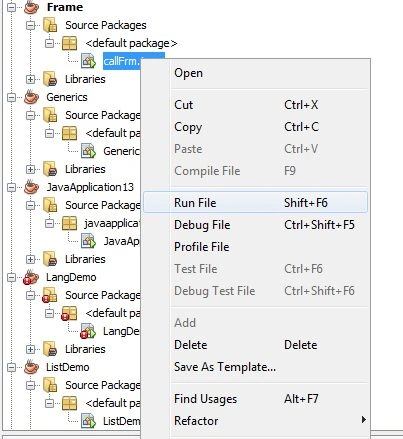

Run the Code
Output
If frame1 is selected then the following frame will appear:
If Frame2 is selected then the following Frame will appear:
