Introduction

This short material will guide on the following integration points.

Connecting to the SAP system via SAP .NET Connector (also called sapnco libraries)
Access an RFC function from the SAP System and get the data.
Exception handling.

For this Tech Tip will create a console application using C#.

SAP .Net connector

SAP .NET Connector 3.0 is the current version of SAP's development environment for communication between the Microsoft .NET platform and SAP systems. This connector supports RFCs and Web services. It allows developers to write different applications such as Webform, Windows form, or console applications in Microsoft Visual Studio.Net. With the SAP .NET Connector, a developer can use all common programming languages, such as Visual Basic. NET, C#, or Managed C++.

Step 1. Download the Sapnco libraries from the SAP official site and reference the Visual Studio project as shown below.

sapnco.dll
sapnco_utils.dll

Spanco Library's details are as follows.

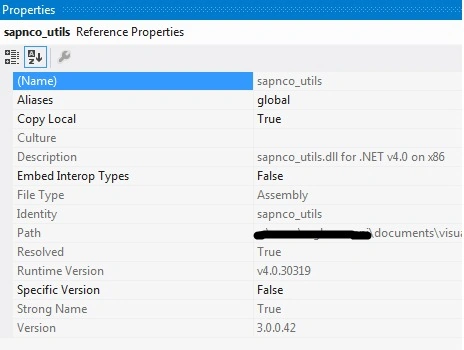

Properties

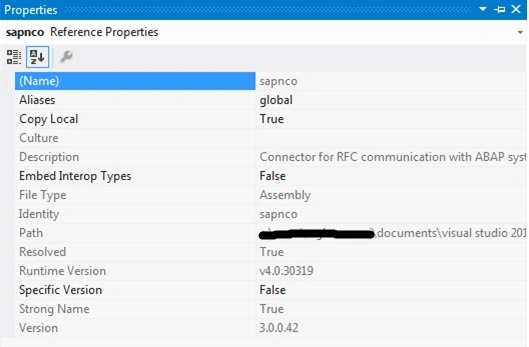

Reference property

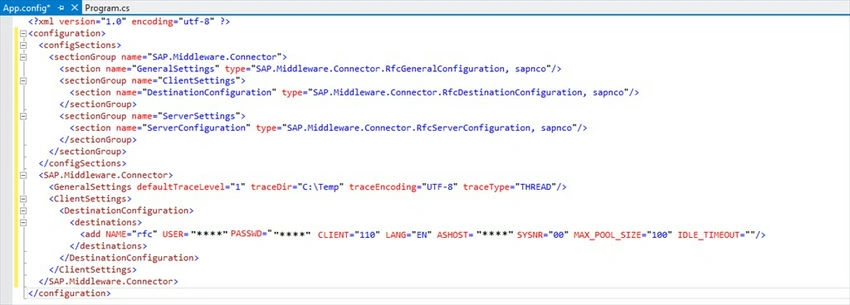

Step 2. Append the following to the app.Config.

Note. Provide the required IP and Credentials to connect to the target SAP System as received from the SAP team.

Credentials

Step 3. This example will show how the program is accessed in getting the invoice details from the SAP system

The below methods will help to connect to the SAP System and access the RFC function by passing the necessary input and output parameters.

Note. In RFC Terms the input parameters are called import and output as export parameters.

Do request the SAP team to provide the RFC function name and its import, and export parameters which will help build the logic.

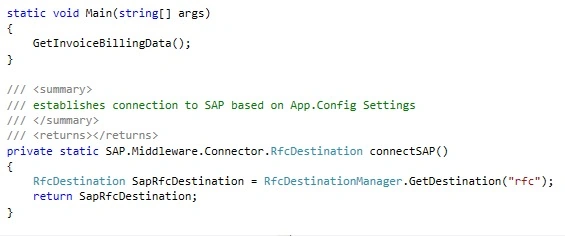

RFC function

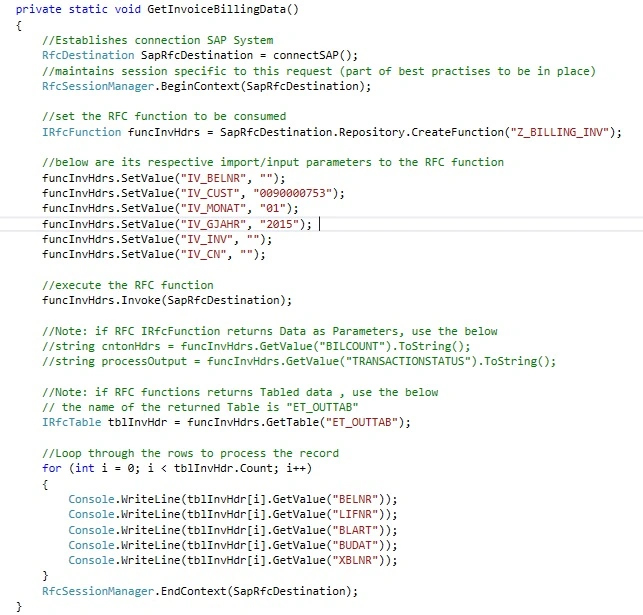

Connection sap system

Step 4

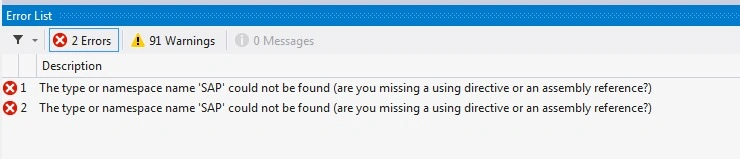

Build the solution and the following errors will hit.
Solution: as the Sapnco libraries support .Net 4.0, set the console application to Target Framework to 4.0.

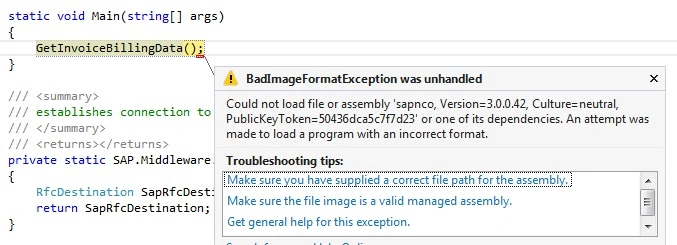

Again build the solution, it will be a successful one. On execution, another error will shoot up as below,
Solution: sapnco libraries are available for (x86) and (x64) platforms. Here I have used a 32-bit library of sapnco whereas my laptop is x64.

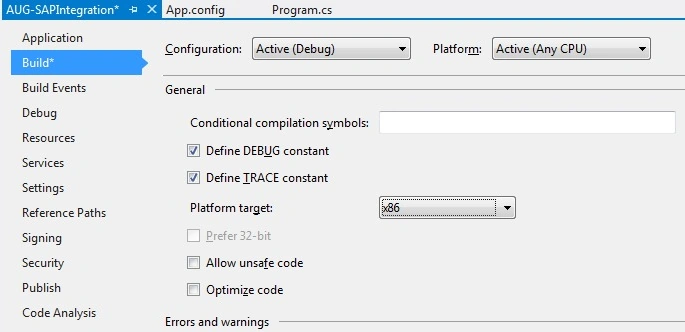

Set the following in project properties where the Platform target is x86. Now Execution will be successful.

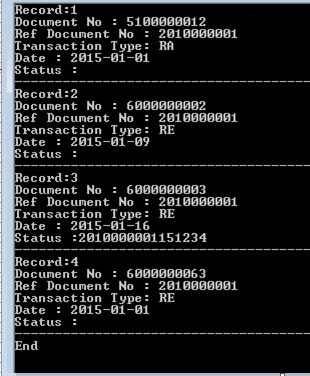

Step 5. Program Output.

Program output

Step 6. Exception handling.

Apply the below try-catch blocks as below to handle exceptions.

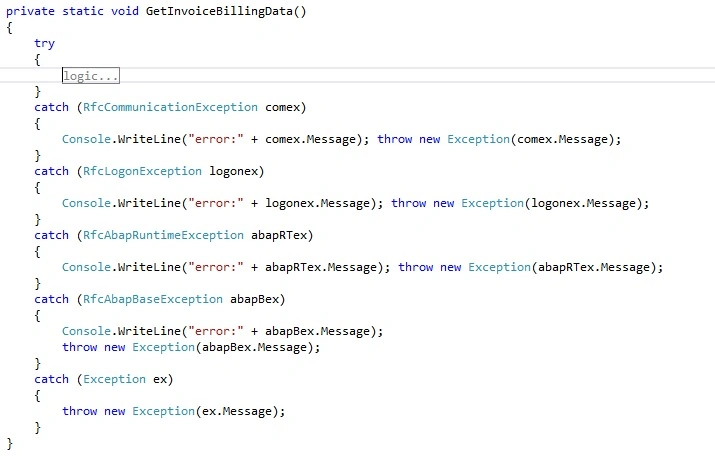

Exception handling

Add On

Consider the WCF service instead of a console application for the above example.
The Web Service will be deployed in IIS.
The following points to be kept in mind during configuration.

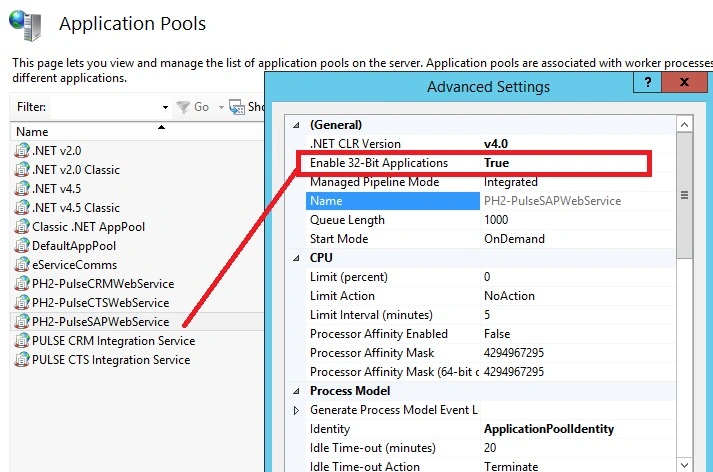

Since we used x86(32-bit) sapnco libraries, and servers in general x64 (64-bit) the following need to be applied to the application pool of the Web Application,

Enable 32-Bit Application – Set to True (by default the value is false),
Sapnco libraries require “Microsoft Visual C++ 2010 x86 Redistributable Setup”, do install this setup if Web Service throws issues.
