Introduction

In this post, we will see how we can import and export Excel data in ASP.NET Core. We are using EPPlus.Core library which helps us to perform import and export operations. I hope you will like it.

Prerequisites

Make sure you have installed Visual Studio 2017 (.Net Framework 4.6.1) and SQL Server.

In this post, we are going to -

SQL Database part

Here, you can find the script to create a database and its tables.

Create Database

  1. USE [master]
  2. GO
  4. /****** Object: Database [DbCustomers] Script Date: 2/18/2018 2:19:48 AM ******/
  5. CREATE DATABASE [DbCustomers]
  6. CONTAINMENT = NONE
  7. ON PRIMARY
  8. ( NAME = N'DbCustomers', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\DbCustomers.mdf' , SIZE = 4096KB , MAXSIZE = UNLIMITED, FILEGROWTH = 1024KB )
  9. LOG ON
  10. ( NAME = N'DbCustomers_log', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\DbCustomers_log.ldf' , SIZE = 1024KB , MAXSIZE = 2048GB , FILEGROWTH = 10%)
  11. GO
  13. ALTER DATABASE [DbCustomers] SET COMPATIBILITY_LEVEL = 110
  14. GO
  16. IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))
  17. begin
  18. EXEC [DbCustomers].[dbo].[sp_fulltext_database] @action = 'enable'
  19. end
  20. GO
  22. ALTER DATABASE [DbCustomers] SET ANSI_NULL_DEFAULT OFF
  23. GO
  25. ALTER DATABASE [DbCustomers] SET ANSI_NULLS OFF
  26. GO
  28. ALTER DATABASE [DbCustomers] SET ANSI_PADDING OFF
  29. GO
  31. ALTER DATABASE [DbCustomers] SET ANSI_WARNINGS OFF
  32. GO
  34. ALTER DATABASE [DbCustomers] SET ARITHABORT OFF
  35. GO
  37. ALTER DATABASE [DbCustomers] SET AUTO_CLOSE OFF
  38. GO
  40. ALTER DATABASE [DbCustomers] SET AUTO_CREATE_STATISTICS ON
  41. GO
  43. ALTER DATABASE [DbCustomers] SET AUTO_SHRINK OFF
  44. GO
  46. ALTER DATABASE [DbCustomers] SET AUTO_UPDATE_STATISTICS ON
  47. GO
  49. ALTER DATABASE [DbCustomers] SET CURSOR_CLOSE_ON_COMMIT OFF
  50. GO
  52. ALTER DATABASE [DbCustomers] SET CURSOR_DEFAULT GLOBAL
  53. GO
  55. ALTER DATABASE [DbCustomers] SET CONCAT_NULL_YIELDS_NULL OFF
  56. GO
  58. ALTER DATABASE [DbCustomers] SET NUMERIC_ROUNDABORT OFF
  59. GO
  61. ALTER DATABASE [DbCustomers] SET QUOTED_IDENTIFIER OFF
  62. GO
  64. ALTER DATABASE [DbCustomers] SET RECURSIVE_TRIGGERS OFF
  65. GO
  67. ALTER DATABASE [DbCustomers] SET DISABLE_BROKER
  68. GO
  70. ALTER DATABASE [DbCustomers] SET AUTO_UPDATE_STATISTICS_ASYNC OFF
  71. GO
  73. ALTER DATABASE [DbCustomers] SET DATE_CORRELATION_OPTIMIZATION OFF
  74. GO
  76. ALTER DATABASE [DbCustomers] SET TRUSTWORTHY OFF
  77. GO
  79. ALTER DATABASE [DbCustomers] SET ALLOW_SNAPSHOT_ISOLATION OFF
  80. GO
  82. ALTER DATABASE [DbCustomers] SET PARAMETERIZATION SIMPLE
  83. GO
  85. ALTER DATABASE [DbCustomers] SET READ_COMMITTED_SNAPSHOT OFF
  86. GO
  88. ALTER DATABASE [DbCustomers] SET HONOR_BROKER_PRIORITY OFF
  89. GO
  91. ALTER DATABASE [DbCustomers] SET RECOVERY SIMPLE
  92. GO
  94. ALTER DATABASE [DbCustomers] SET MULTI_USER
  95. GO
  97. ALTER DATABASE [DbCustomers] SET PAGE_VERIFY CHECKSUM
  98. GO
  100. ALTER DATABASE [DbCustomers] SET DB_CHAINING OFF
  101. GO
  103. ALTER DATABASE [DbCustomers] SET FILESTREAM( NON_TRANSACTED_ACCESS = OFF )
  104. GO
  106. ALTER DATABASE [DbCustomers] SET TARGET_RECOVERY_TIME = 0 SECONDS
  107. GO
  109. ALTER DATABASE [DbCustomers] SET READ_WRITE
  110. GO

Create Table

After creating the database, we will move to create the "Customers" table.

Customers Table

  1. USE [DbCustomers]
  2. GO
  4. /****** Object: Table [dbo].[Customers] Script Date: 2/18/2018 2:20:40 AM ******/
  5. SET ANSI_NULLS ON
  6. GO
  8. SET QUOTED_IDENTIFIER ON
  9. GO
  11. SET ANSI_PADDING ON
  12. GO
  14. CREATE TABLE [dbo].[Customers](
  15. [CustomerID] [int] IDENTITY(1,1) NOT NULL,
  16. [CustomerName] [varchar](50) NULL,
  17. [CustomerEmail] [varchar](50) NULL,
  18. [CustomerCountry] [varchar](50) NULL,
  19. CONSTRAINT [PK_Customers] PRIMARY KEY CLUSTERED
  20. (
  21. [CustomerID] ASC
  22. )WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
  23. ) ON [PRIMARY]
  25. GO
  27. SET ANSI_PADDING OFF
  28. GO

Create your MVC application

Open Visual Studio and select File >> New Project.

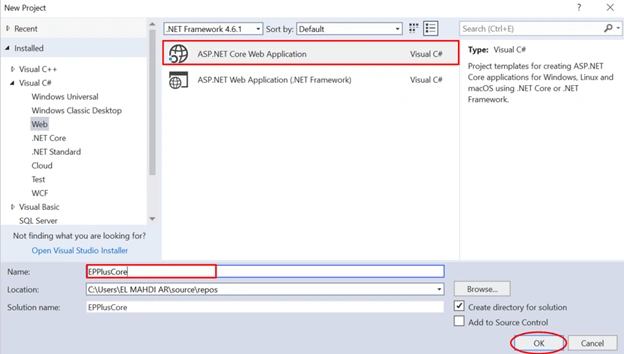

The "New Project" window will pop up. Select ASP.NET Core Web Application, name your project, and click OK.

ASP.NET Core

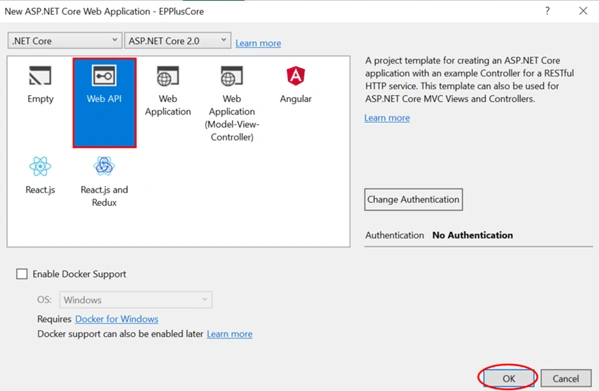

Next, a new dialog will pop up for selecting the template. We are going to choose Web API template and click OK.

ASP.NET Core

Once our project is created, we will add EPPlus.Core library.

Installing EPPlus.Core library

In Package Manager console, run the following command.

Install-Package EPPlus.Core

ASP.NET Core

Adding Entity Framework Core database first approach.

Here, we need to create the EF model based on the existing database.

Tools => NuGet Package Manager => Package Manager Console.

In the package manager console, let’s run the following command:

ASP.NET Core

Scaffold-DbContext " Server =.; Initial Catalog = DbCustomers; Integrated Security = True;" Microsoft.EntityFrameworkCore.SqlServer -OutputDir Models/DBF

As you can see, the command above will generate a model from the existing database within Models/DBF folder.

ASP.NET Core

Customers.cs

  1. using System;
  2. using System.Collections.Generic;
  4. namespace EPPlusCore.Models.DBF
  5. {
  6. public partial class Customers
  7. {
  8. public int CustomerId { get; set; }
  9. public string CustomerName { get; set; }
  10. public string CustomerEmail { get; set; }
  11. public string CustomerCountry { get; set; }
  12. }
  13. }

DbCustomersContext.cs

  1. using System;
  2. using Microsoft.EntityFrameworkCore;
  3. using Microsoft.EntityFrameworkCore.Metadata;
  5. namespace EPPlusCore.Models.DBF
  6. {
  7. public partial class DbCustomersContext : DbContext
  8. {
  9. public virtual DbSet<Customers> Customers { get; set; }
  11. public DbCustomersContext(DbContextOptions<DbCustomersContext> options) : base(options)
  12. {
  14. }
  16. protected override void OnModelCreating(ModelBuilder modelBuilder)
  17. {
  18. modelBuilder.Entity<Customers>(entity =>
  19. {
  20. entity.HasKey(e => e.CustomerId);
  22. entity.Property(e => e.CustomerId).HasColumnName("CustomerID");
  24. entity.Property(e => e.CustomerCountry)
  25. .HasMaxLength(50)
  26. .IsUnicode(false);
  28. entity.Property(e => e.CustomerEmail)
  29. .HasMaxLength(50)
  30. .IsUnicode(false);
  32. entity.Property(e => e.CustomerName)
  33. .HasMaxLength(50)
  34. .IsUnicode(false);
  35. });
  36. }
  37. }
  38. }

Startup.cs

Now, we are opening Startup.cs and we need to add the following lines of code within ConfigureServices() method.

  1. string connection = "Server =.; Initial Catalog = DbCustomers; Integrated Security = True";
  2. services.AddDbContext<DbCustomersContext>(options => options.UseSqlServer(connection));

Create a Controller

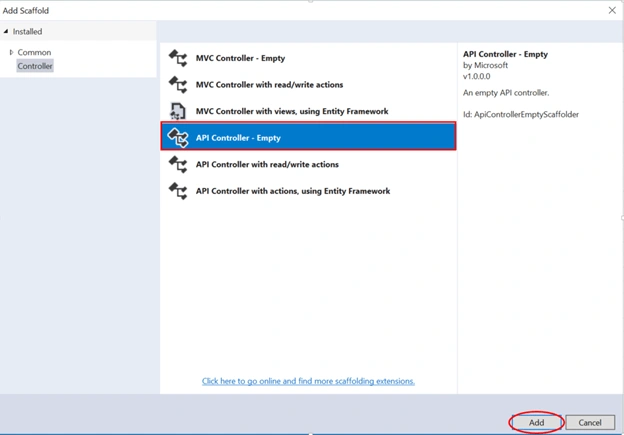

Now, we are going to create a Controller. Right-click on the Controllers folder> > Add >> Controller>> selecting API Controller – Empty >> click Add. In the next dialog, name the controller as CustomerController and then click Add.

ASP.NET Core

ASP.NET Core

CustomerController.cs

  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Threading.Tasks;
  5. using Microsoft.AspNetCore.Http;
  6. using Microsoft.AspNetCore.Mvc;
  7. using Microsoft.AspNetCore.Hosting;
  8. using System.IO;
  9. using OfficeOpenXml;
  10. using System.Text;
  11. using EPPlusCore.Models.DBF;
  13. namespace EPPlusCore.Controllers
  14. {
  15. [Produces("application/json")]
  16. [Route("api/Customer")]
  17. public class CustomerController : Controller
  18. {
  19. private readonly IHostingEnvironment _hostingEnvironment;
  20. private readonly DbCustomersContext _db;
  22. public CustomerController(IHostingEnvironment hostingEnvironment, DbCustomersContext db)
  23. {
  24. _hostingEnvironment = hostingEnvironment;
  25. _db = db;
  26. }
  29. [HttpGet]
  30. [Route("ImportCustomer")]
  31. public IList<Customers> ImportCustomer()
  32. {
  35. string rootFolder = _hostingEnvironment.WebRootPath;
  36. string fileName = @"ImportCustomers.xlsx";
  37. FileInfo file = new FileInfo(Path.Combine(rootFolder, fileName));
  39. using (ExcelPackage package = new ExcelPackage(file))
  40. {
  41. ExcelWorksheet workSheet = package.Workbook.Worksheets["Customer"];
  42. int totalRows = workSheet.Dimension.Rows;
  44. List<Customers> customerList = new List<Customers>();
  46. for (int i = 2; i <= totalRows; i++)
  47. {
  48. customerList.Add(new Customers
  49. {
  50. CustomerName = workSheet.Cells[i, 1].Value.ToString(),
  51. CustomerEmail = workSheet.Cells[i, 2].Value.ToString(),
  52. CustomerCountry = workSheet.Cells[i, 3].Value.ToString()
  53. });
  54. }
  56. _db.Customers.AddRange(customerList);
  57. _db.SaveChanges();
  59. return customerList;
  60. }
  61. }
  63. [HttpGet]
  64. [Route("ExportCustomer")]
  65. public string ExportCustomer()
  66. {
  67. string rootFolder = _hostingEnvironment.WebRootPath;
  68. string fileName = @"ExportCustomers.xlsx";
  70. FileInfo file = new FileInfo(Path.Combine(rootFolder, fileName));
  72. using (ExcelPackage package = new ExcelPackage(file))
  73. {
  75. IList<Customers> customerList = _db.Customers.ToList();
  77. ExcelWorksheet worksheet = package.Workbook.Worksheets.Add("Customer");
  78. int totalRows = customerList.Count();
  80. worksheet.Cells[1, 1].Value = "Customer ID";
  81. worksheet.Cells[1, 2].Value = "Customer Name";
  82. worksheet.Cells[1, 3].Value = "Customer Email";
  83. worksheet.Cells[1, 4].Value = "customer Country";
  84. int i = 0;
  85. for (int row = 2; row <= totalRows + 1; row++)
  86. {
  87. worksheet.Cells[row, 1].Value = customerList[i].CustomerId;
  88. worksheet.Cells[row, 2].Value = customerList[i].CustomerName;
  89. worksheet.Cells[row, 3].Value = customerList[i].CustomerEmail;
  90. worksheet.Cells[row, 4].Value = customerList[i].CustomerCountry;
  91. i++;
  92. }
  94. package.Save();
  96. }
  98. return " Customer list has been exported successfully";
  99. }
  102. }
  103. }

As you can see, we have two methods which will be used to perform the import and export operations.

So, let’s begin with ImportCustomer() method which is responsible to import data from excel file to customers table.

Note, in solution explorer, precisely in wwwroot folder, I added ImportCustomers.xlsx with data rows that are used to import data. To get path of the Excel file, we used the following lines of code

  1. string rootFolder = _hostingEnvironment.WebRootPath;
  2. string fileName = @"ImportCustomers.xlsx";
  3. FileInfo file = new FileInfo(Path.Combine(rootFolder, fileName));

Then, we have an ExportCustomer() method which is used to export the data from customers table to ExportCustomer.xlsx file.

ASP.NET Core

Demo

Import Customers

Now, let’s run the application and call the following URI YourLocalHost/api/Customer/ImportCustomer.

Once finished, open Customers table and you will see that the data rows have been added successfully.

ImportCustomers.xlsx

ASP.NET Core

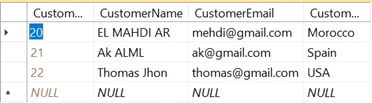

Customers table

ASP.NET Core

Export Customers

Now, we will call the following URI for exporting data rows from Customers table to ExportCustomers.xlsx.

YourLocalHost/api/Customer/ExportCustomer
Once finished, open ExportCustomers.xlsx file and you will see that the data rows have been exported successfully.

ExportCustomers.xlsx

ASP.NET Core

That’s all. Please send your feedback and queries in the comments box.
