How To Access Microsoft Graph API In Console Application

• Graph
• Graph.Beta
• Graph.Core
• Graph.Auth

Auth Provider Instance

List Groups Graph API - Get all the groups using Graph API

• Permission Type – Application
• Permissions - Group.Read.All, Directory.Read.All, Group.ReadWrite.All, Directory.ReadWrite.All

• Register an Application in Azure - Register an app in Azure AD and add the required permissions to access the Graph API
• Create and run the console application

Register an application in Azure

1. Navigate to Azure portal.
2. Search for App Registrations. Click App Registrations as show below.




3. Click New Registration.

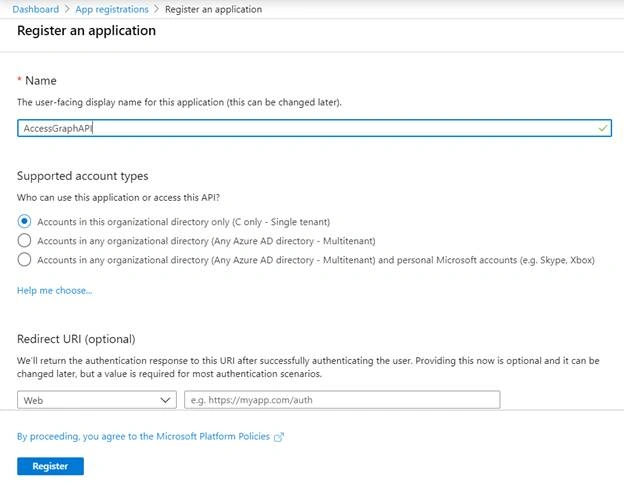

4. Enter the Name and click Register.

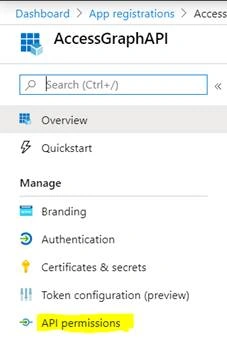

5. App registered successfully. In the left navigation, click API Permissions.

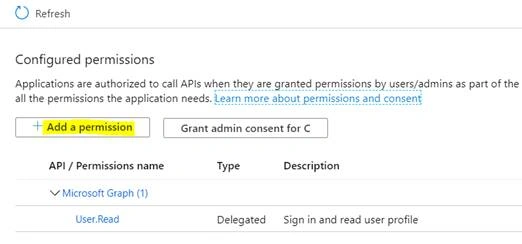

6. Click Add a permission.

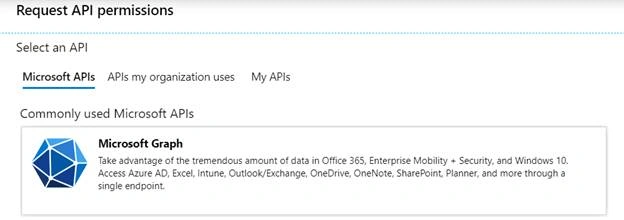

7. Select Microsoft Graph API as shown below.

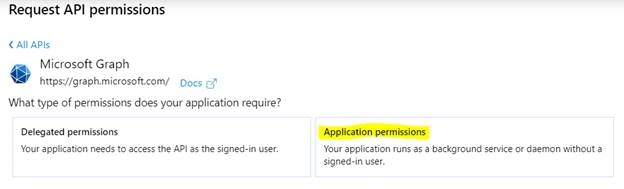

8. Click Application Permissions.

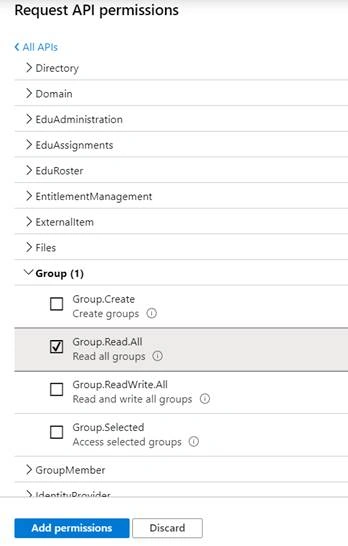

9. SelectRead.All, Directory.Read.All, Group.ReadWrite.All, Directory.ReadWrite.All permission and click Add permissions.

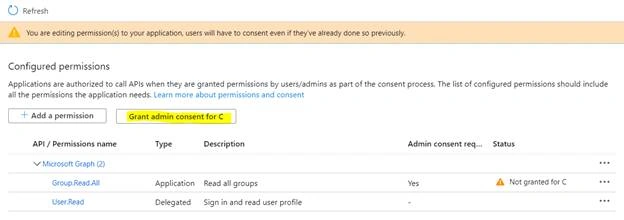

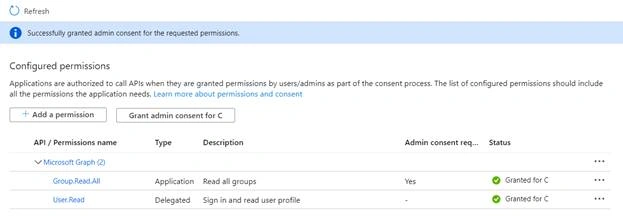

10. Click Grant admin consent.

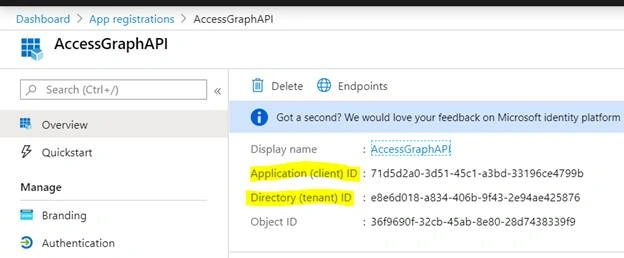

11. In the left navigation, click Overview. Copy the Application (client) ID and Directory (tenant) ID values. These values will be used in the console application for authentication.

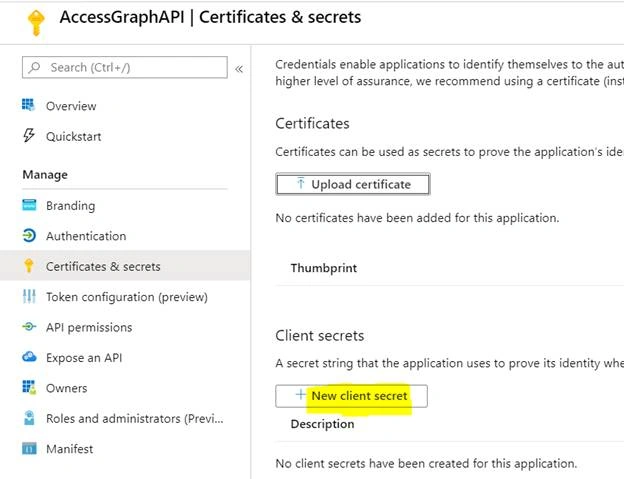

12. In the left navigation, click Certificates & secrets. Click New client secret.




13. Enter the description and click Add.




14. Copy the secret value which will be used in console application for authentication.




Create and run the Console Application

1. Open Visual Studio 2019 and create a Console Application (.Net Framework).
2. Install the following NuGet Packages either using Package Manager UI in Visual Studio or the Package Manager Console.

   1. Install-Package Microsoft.Graph
   2. Install-Package Microsoft.Graph.Auth -IncludePrerelease

3. Open Program.cs and add the following code.

   1. using Microsoft.Graph;
   2. using Microsoft.Graph.Auth;
   3. using Microsoft.Identity.Client;
   4. using System;
   5. using System.Collections.Generic;
   6. using System.Linq;
   7. using System.Text;
   8. using System.Threading.Tasks;
   10. namespace GraphAPIConsole
   11. {
   12. class Program
   13. {
   14. static void Main(string[] args)
   15. {
   16. try
   17. {
   18. getUsersAsync().GetAwaiter().GetResult();
   19. }
   20. catch (Exception ex)
   21. {
   22. Console.WriteLine(ex.Message);
   23. }
   24. Console.ReadLine();
   25. }
   27. public async static Task getUsersAsync()
   28. {
   29. var clientId = "7b1ce1ad-af15-4e5f-9ae4-aaf0a68a7ab4";
   30. var tenantId = "e8e6d018-a834-406b-9f43-2e94ae425876";
   31. var clientSecret = "2G_tDd4AM92Jv4j_a2hSa0mu05V5ddDr..";
   32. IConfidentialClientApplication confidentialClientApplication = ConfidentialClientApplicationBuilder
   33. .Create(clientId)
   34. .WithTenantId(tenantId)
   35. .WithClientSecret(clientSecret)
   36. .Build();
   38. ClientCredentialProvider authProvider = new ClientCredentialProvider(confidentialClientApplication);
   39. GraphServiceClient graphClient = new GraphServiceClient(authProvider);
   41. var groups = await graphClient.Groups.Request().Select(x => new { x.Id, x.DisplayName }).GetAsync();
   42. foreach (var group in groups)
   43. {
   44. Console.WriteLine($"{group.DisplayName}, {group.Id}");
   45. }
   46. }
   47. }
   48. }

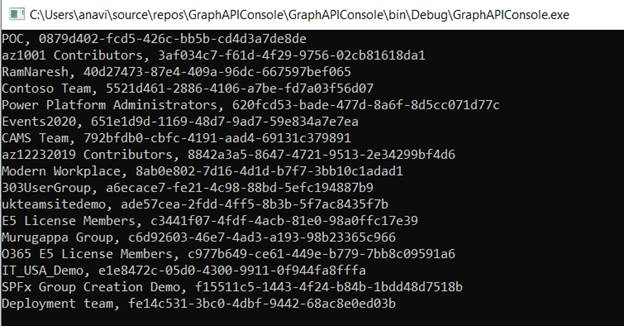

4. Hit F5.
