Grid With Paging Using KnockoutJS

Introduction

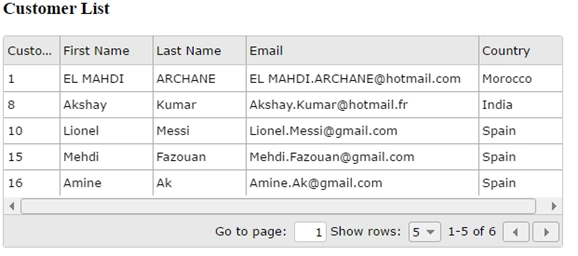

In this article, we will learn how to display data into Grid using JQWidget library. In this demo, we are going to create a database and a table called customer which contains data. We will use Web API 2 and Entity Framework ORM in order to create Service. Finally, for client side, we are using knockout.js library. I hope you will like this.

Let’s start.

Note

You can download zip file from JQWidget

Prerequisites

As I said before, we are going to use Web API 2 and Entity Framework. For this, you must have Visual Studio 2015 (.Net Framework 4.5.2) and SQL Server.

In this post, we are going to -

Create Database and table.
Create Web API application.
Configuring Entity Framework ORM.
Implementing the needed http service.
Using jqxWidget and knockout.js libraries.

SQL Database part

Here, you find the scripts to create database and table.

Create Database

USE [master]
GO
/****** Object: Database [DBCustomer] Script Date: 3/12/2017 4:38:33 AM ******/
CREATE DATABASE [DBCustomer]
CONTAINMENT = NONE
ON PRIMARY
( NAME = N'DBCustomer', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\DBCustomer.mdf' , SIZE = 3072KB , MAXSIZE = UNLIMITED, FILEGROWTH = 1024KB )
LOG ON
( NAME = N'DBCustomer_log', FILENAME = N'c:\Program Files (x86)\Microsoft SQL Server\MSSQL11.MSSQLSERVER\MSSQL\DATA\DBCustomer_log.ldf' , SIZE = 1024KB , MAXSIZE = 2048GB , FILEGROWTH = 10%)
GO
ALTER DATABASE [DBCustomer] SET COMPATIBILITY_LEVEL = 110
GO
IF (1 = FULLTEXTSERVICEPROPERTY('IsFullTextInstalled'))
begin
EXEC [DBCustomer].[dbo].[sp_fulltext_database] @action = 'enable'
end
GO
ALTER DATABASE [DBCustomer] SET ANSI_NULL_DEFAULT OFF
GO
ALTER DATABASE [DBCustomer] SET ANSI_NULLS OFF
GO
ALTER DATABASE [DBCustomer] SET ANSI_PADDING OFF
GO
ALTER DATABASE [DBCustomer] SET ANSI_WARNINGS OFF
GO
ALTER DATABASE [DBCustomer] SET ARITHABORT OFF
GO
ALTER DATABASE [DBCustomer] SET AUTO_CLOSE OFF
GO
ALTER DATABASE [DBCustomer] SET AUTO_CREATE_STATISTICS ON
GO
ALTER DATABASE [DBCustomer] SET AUTO_SHRINK OFF
GO
ALTER DATABASE [DBCustomer] SET AUTO_UPDATE_STATISTICS ON
GO
ALTER DATABASE [DBCustomer] SET CURSOR_CLOSE_ON_COMMIT OFF
GO
ALTER DATABASE [DBCustomer] SET CURSOR_DEFAULT GLOBAL
GO
ALTER DATABASE [DBCustomer] SET CONCAT_NULL_YIELDS_NULL OFF
GO
ALTER DATABASE [DBCustomer] SET NUMERIC_ROUNDABORT OFF
GO
ALTER DATABASE [DBCustomer] SET QUOTED_IDENTIFIER OFF
GO
ALTER DATABASE [DBCustomer] SET RECURSIVE_TRIGGERS OFF
GO
ALTER DATABASE [DBCustomer] SET DISABLE_BROKER
GO
ALTER DATABASE [DBCustomer] SET AUTO_UPDATE_STATISTICS_ASYNC OFF
GO
ALTER DATABASE [DBCustomer] SET DATE_CORRELATION_OPTIMIZATION OFF
GO
ALTER DATABASE [DBCustomer] SET TRUSTWORTHY OFF
GO
ALTER DATABASE [DBCustomer] SET ALLOW_SNAPSHOT_ISOLATION OFF
GO
ALTER DATABASE [DBCustomer] SET PARAMETERIZATION SIMPLE
GO
ALTER DATABASE [DBCustomer] SET READ_COMMITTED_SNAPSHOT OFF
GO
ALTER DATABASE [DBCustomer] SET HONOR_BROKER_PRIORITY OFF
GO
ALTER DATABASE [DBCustomer] SET RECOVERY SIMPLE
GO
ALTER DATABASE [DBCustomer] SET MULTI_USER
GO
ALTER DATABASE [DBCustomer] SET PAGE_VERIFY CHECKSUM
GO
ALTER DATABASE [DBCustomer] SET DB_CHAINING OFF
GO
ALTER DATABASE [DBCustomer] SET FILESTREAM( NON_TRANSACTED_ACCESS = OFF )
GO
ALTER DATABASE [DBCustomer] SET TARGET_RECOVERY_TIME = 0 SECONDS
GO
ALTER DATABASE [DBCustomer] SET READ_WRITE
GO

Create Table

USE [DBCustomer]
GO
/****** Object: Table [dbo].[Customer] Script Date: 3/12/2017 4:38:53 AM ******/
SET ANSI_NULLS ON
GO
SET QUOTED_IDENTIFIER ON
GO
SET ANSI_PADDING ON
GO
CREATE TABLE [dbo].[Customer](
[CustID] [int] IDENTITY(1,1) NOT NULL,
[FirstName] [varchar](50) NULL,
[LastName] [varchar](50) NULL,
[Email] [varchar](50) NULL,
[Country] [varchar](50) NULL,
CONSTRAINT [PK_Customer] PRIMARY KEY CLUSTERED
(
[CustID] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
) ON [PRIMARY]
GO
SET ANSI_PADDING OFF
GO

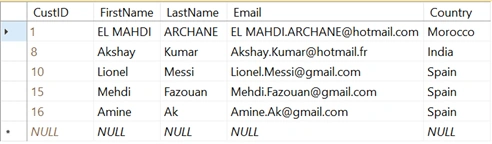

After creating the table, you can add some records as shown below.

Create your MVC application

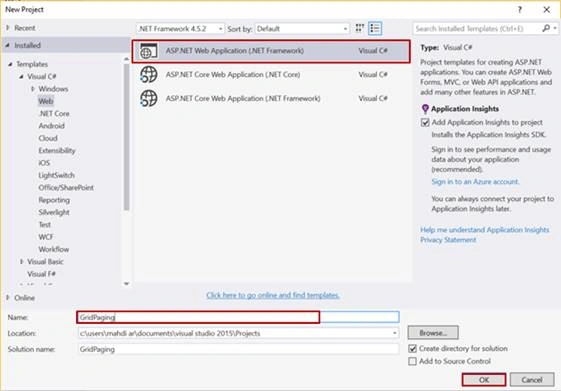

Open Visual Studio and select File >> New Project.

The "New Project" window will pop up. Select ASP.NET Web Application (.NET Framework), name your project, and click OK.

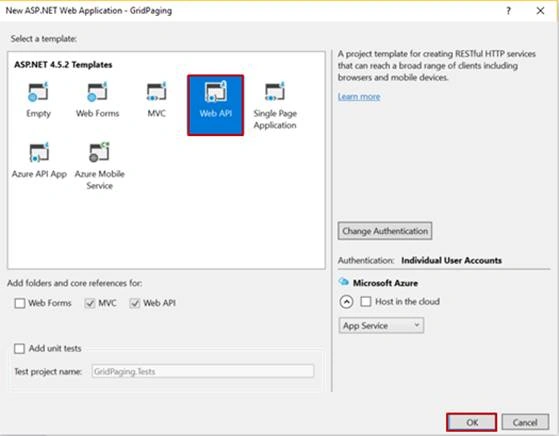

Next, new dialog will pop up for selecting the template. We are going choose Web API and click Ok.

After creating our project, we are going to add ADO.NET Entity Data Model.

Adding ADO.NET Entity Data Model

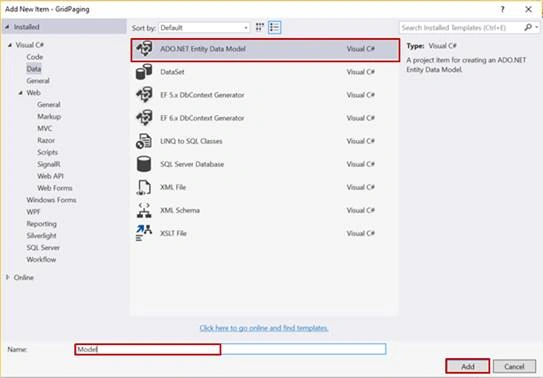

In order to ADO.NET Entity Data Model, right click on the project name, click Add > Add New Item. Dialog box will pop up, inside Visual C# select Data then ADO.NET Entity Data Model, and enter name for your Dbcontext model as Model, finally click Add.

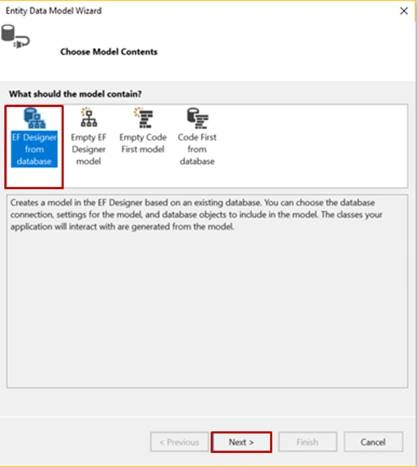

In this level, we are going to choose EF Designer from database as show below.

Next step, we need to choose a data connection which should be used to connect to the database. If the connection doesn’t exist, I will invite you to click on new connection button for creating the new one.

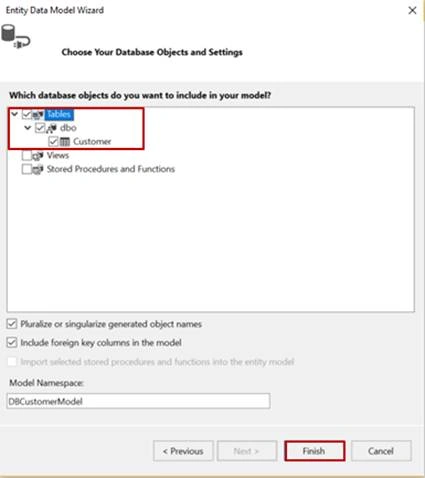

After clicking on next button, the dialog Entity Data Model Wizard will pop up for choosing the object which we want to use. In this demo we are going to choose customer table and click Finish button. Finally we see that EDMX model generates customer entity.

Create a Controller

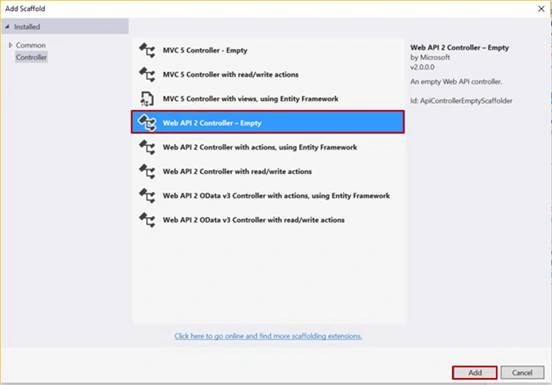

Now, we are going to create a Controller. Right click on the Controllers folder > Add > Controller> selecting Web API 2 Controller – Empty > click Add.
