This article explains how to export ASP.Net grid data to a PDF with custom width using iTextSharp.

What ITextSharp is: iTextSharp is a free and open source assembly that helps to convert page output or HTML content in PDF file.

You can download it from here:

http://sourceforge.net/projects/itextsharp/

Now add that DLL to the application.

Getting Started

Start Visual Studio and create a new website in ASP.Net and add these 2 DLLs to the solution:

Now add these namespaces:

  1. using iTextSharp.text;
  2. using iTextSharp.text.pdf;
  3. using iTextSharp.text.html;
  4. using iTextSharp.text.html.simpleparser;

This is my GridView HTML:

  1. <div>
  2. <asp:gridview id="gvEmployees" runat="server" emptydatatext="No data found" autogeneratecolumns="False"
  3. datakeynames="EmployeeID" datasourceid="SqlDataSource1" allowpaging="False" backcolor="White"
  4. bordercolor="#DEDFDE" borderstyle="None" borderwidth="1px" cellpadding="4" forecolor="Black"
  5. gridlines="Vertical" height="165px" width="678px">
  6. <AlternatingRowStyle BackColor="White" />
  7. <Columns>
  8. <asp:BoundField DataField="EmployeeID" HeaderText="EmployeeID" InsertVisible="False" ReadOnly="True" SortExpression="EmployeeID" />
  9. <asp:BoundField DataField="LastName" HeaderText="LastName" SortExpression="LastName" />
  10. <asp:BoundField DataField="FirstName" HeaderText="FirstName" SortExpression="FirstName" />
  11. <asp:BoundField DataField="City" HeaderText="City" SortExpression="City" />
  12. <asp:BoundField DataField="Region" HeaderText="Region" SortExpression="Region" />
  13. <asp:BoundField DataField="PostalCode" HeaderText="PostalCode" SortExpression="PostalCode" />
  14. <asp:BoundField DataField="Country" HeaderText="Country" SortExpression="Country" />
  15. </Columns>
  16. <FooterStyle BackColor="#CCCC99" />
  17. <HeaderStyle BackColor="#6B696B" Font-Bold="True" ForeColor="White" />
  18. <PagerStyle BackColor="#F7F7DE" ForeColor="Black" HorizontalAlign="Right" />
  19. <RowStyle BackColor="#F7F7DE" />
  20. <SelectedRowStyle BackColor="#CE5D5A" Font-Bold="True" ForeColor="White" />
  21. <SortedAscendingCellStyle BackColor="#FBFBF2" />
  22. <SortedAscendingHeaderStyle BackColor="#848384" />
  23. <SortedDescendingCellStyle BackColor="#EAEAD3" />
  24. <SortedDescendingHeaderStyle BackColor="#575357" />
  25. </asp:gridview>
  26. </div>
  27. <asp:sqldatasource id="SqlDataSource1" runat="server" connectionstring="<%$ ConnectionStrings:NorthwindConnectionString %>"
  28. selectcommand="SELECT [EmployeeID], [LastName], [FirstName], [Title], [BirthDate], [City], [Region], [PostalCode], [Country] FROM [Employees]"></asp:sqldatasource>
  29. <asp:button id="btnExport" runat="server" text="Export To PDF" onclick="btnExport_Click" />

Now let's work on the code behind part.

  1. protected void btnExport_Click(object sender, EventArgs e)
  2. {
  3. Response.ContentType = "application/pdf";
  4. Response.AddHeader("content-disposition", "attachment;filename=EmployeeList.pdf");
  5. Response.Cache.SetCacheability(HttpCacheability.NoCache);
  6. StringWriter stringWriter = new StringWriter();
  7. HtmlTextWriter htmlTextWriter = new HtmlTextWriter(stringWriter);
  8. gvEmployees.DataBind();
  9. gvEmployees.RenderControl(htmlTextWriter);
  10. gvEmployees.HeaderRow.Style.Add("width", "10%");
  11. gvEmployees.HeaderRow.Style.Add("font-size", "15px");
  12. gvEmployees.Style.Add("text-decoration", "none");
  13. gvEmployees.Style.Add("font-family", "Arial, Helvetica, sans-serif;");
  14. gvEmployees.Style.Add("font-size", "8px");
  15. StringReader sr = new StringReader(stringWriter.ToString());
  16. Document doc = new Document(PageSize.A2, 7f, 7f, 7f, 0f);
  17. HTMLWorker htmlparser = new HTMLWorker(doc);
  18. PdfWriter.GetInstance(doc, Response.OutputStream);
  19. doc.Open();
  20. htmlparser.Parse(sr);
  21. doc.Close();
  22. Response.Write(doc);
  23. Response.End();
  24. }
  25. public override void VerifyRenderingInServerForm(Control control)
  26. {
  27. }

Now run the application. When the button is clicked the PDF will show in the grid view data like this:

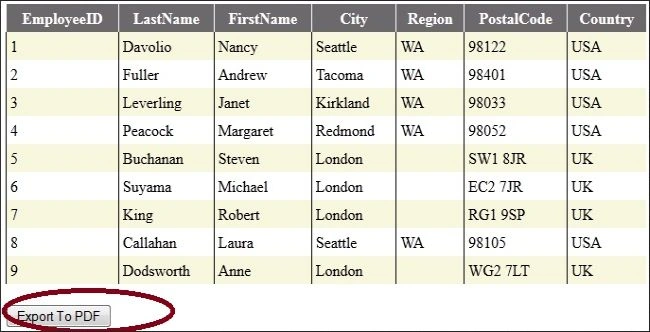

Image 1.

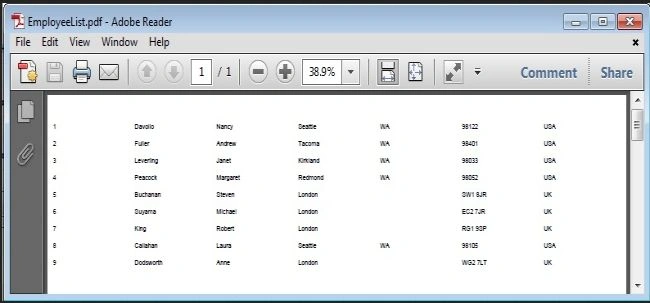

Image 2.

For more help, download the attached sample application.
