Introduction

This article demonstrates an interesting and very useful concept in Entity Framework.

Question: What is entity data source?

In simple terms "It is a data source that performs CRUD, filtering, querying and so on, all based on a data model. This reduces the development effort by performing various operations in an easy and manageable manner".

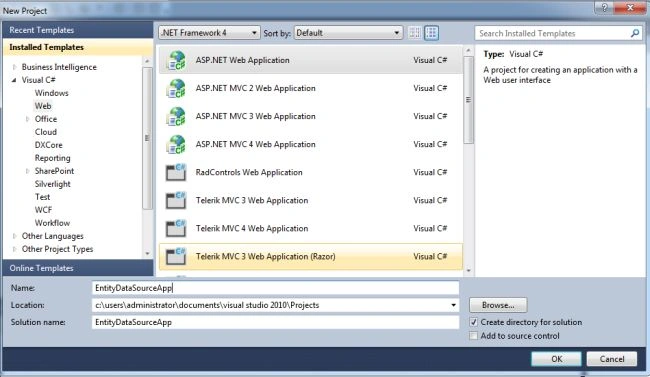

Step 1: Create a new web application

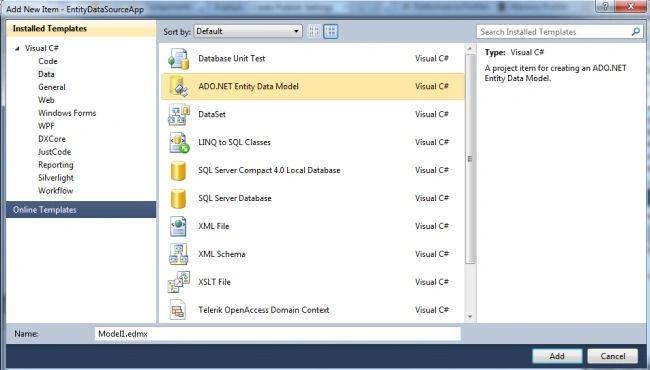

Step 2: Add a new Entity Framework model

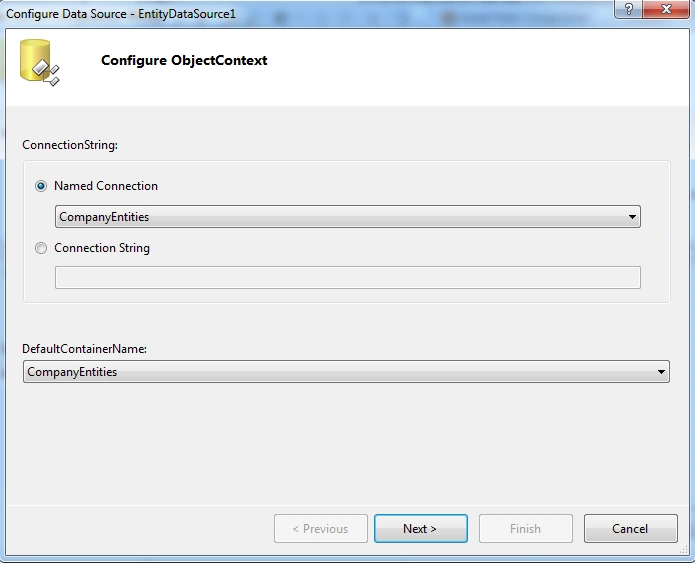

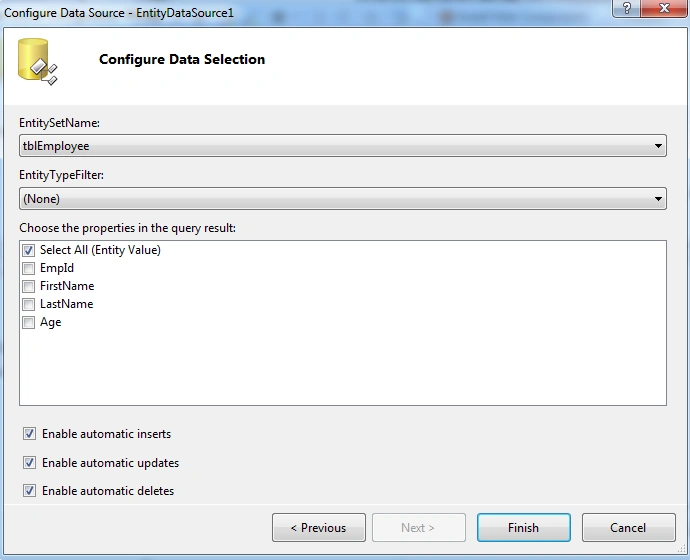

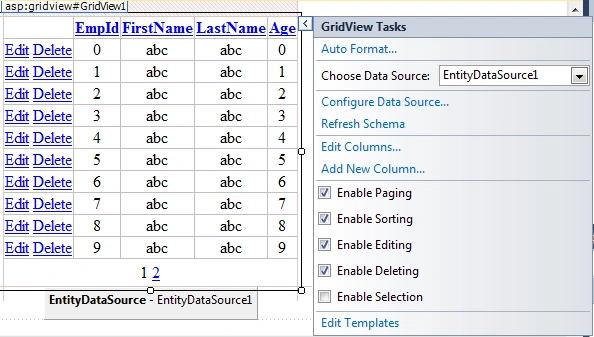

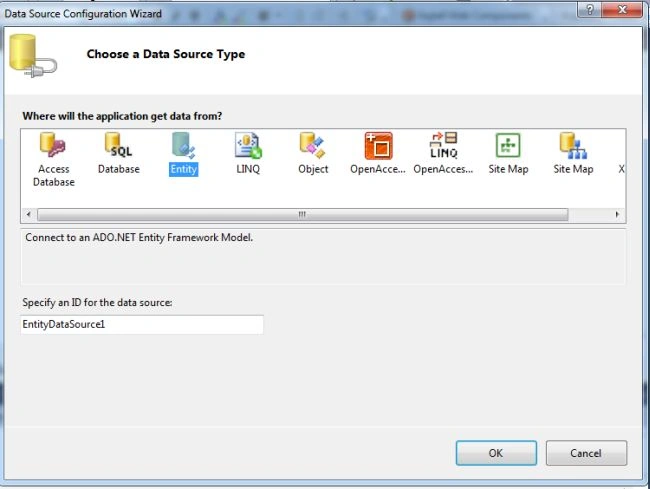

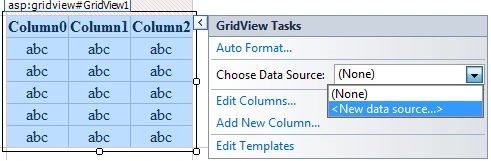

Step 3: Adding a new grid view and choosing data source






Step 4: The complete code of WebForm1.aspx is as in the following:

  1. <%@ Page Language="C#" AutoEventWireup="true" CodeBehind="WebForm1.aspx.cs" Inherits="EntityDataSourceApp.WebForm1" %>
  2. <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
  3. <html xmlns="http://www.w3.org/1999/xhtml">
  4. <head id="Head1" runat="server">
  5. <title></title>
  6. </head>
  7. <body>
  8. <form id="form1" runat="server">
  9. <center>
  10. <div>
  11. <asp:GridView ID="GridView1" runat="server" AllowPaging="True" AllowSorting="True"
  12. AutoGenerateColumns="False" BackColor="LightGoldenrodYellow" BorderColor="Tan"
  13. BorderWidth="1px" CellPadding="2" DataKeyNames="EmpId" DataSourceID="EntityDataSource1"
  14. ForeColor="Black" GridLines="None">
  15. <AlternatingRowStyle BackColor="PaleGoldenrod" />
  16. <Columns>
  17. <asp:CommandField ShowDeleteButton="True" ShowEditButton="True" />
  18. <asp:BoundField DataField="EmpId" HeaderText="EmpId" ReadOnly="True" SortExpression="EmpId" />
  19. <asp:BoundField DataField="FirstName" HeaderText="FirstName" SortExpression="FirstName" />
  20. <asp:BoundField DataField="LastName" HeaderText="LastName" SortExpression="LastName" />
  21. <asp:BoundField DataField="Age" HeaderText="Age" SortExpression="Age" />
  22. </Columns>
  23. <FooterStyle BackColor="Tan" />
  24. <HeaderStyle BackColor="Tan" Font-Bold="True" />
  25. <PagerStyle BackColor="PaleGoldenrod" ForeColor="DarkSlateBlue" HorizontalAlign="Center" />
  26. <SelectedRowStyle BackColor="DarkSlateBlue" ForeColor="GhostWhite" />
  27. <SortedAscendingCellStyle BackColor="#FAFAE7" />
  28. <SortedAscendingHeaderStyle BackColor="#DAC09E" />
  29. <SortedDescendingCellStyle BackColor="#E1DB9C" />
  30. <SortedDescendingHeaderStyle BackColor="#C2A47B" />
  31. </asp:GridView>
  32. <asp:EntityDataSource ID="EntityDataSource1" runat="server" ConnectionString="name=CompanyEntities"
  33. DefaultContainerName="CompanyEntities" EnableDelete="True" EnableFlattening="False"
  34. EnableInsert="True" EnableUpdate="True" EntitySetName="tblEmployee">
  35. </asp:EntityDataSource>
  36. </div>
  37. </center>
  38. </form>
  39. </body>
  40. </html>
Step 5: The complete code of WebForm1.aspx.cs is as in the following:
  1. using System;
  2. using System.Collections.Generic;
  3. using System.Linq;
  4. using System.Web;
  5. using System.Web.UI;
  6. using System.Web.UI.WebControls;
  7. namespace EntityDataSourceApp
  8. {
  9. public partial class WebForm1 : System.Web.UI.Page
  10. {
  11. protected void Page_Load(object sender, EventArgs e)
  12. {
  13. }
  14. }
  15. }

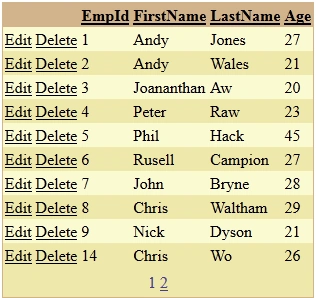

Step 6: The output of the application is as in the following:


I hope this article was useful for you.
