Enable CORS In ASP.NET WebAPI 2

Introduction

Nowadays, ASP.NET WebAPI is a trending technology. Everyone is trying to access the service through AJAX requests or the server side. The problem is when a WebAPI is hosted and the other application (different domain) tries to access the WebAPI through an AJAX request. Here, enabling CORS plays a vital role in WebAPI.

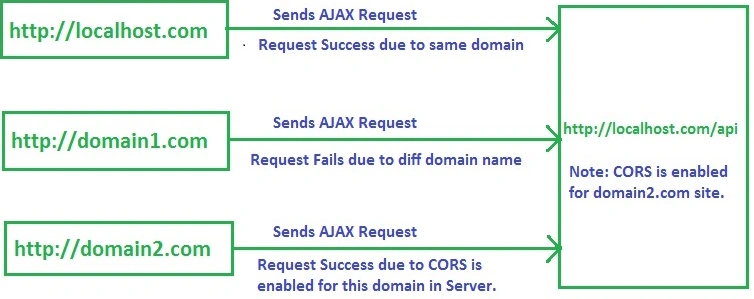

Figure 1: Understanding of CORS

In the below figure, we have hosted one WebService at localhost.com. We are sending 3 AJAX requests to get the response from WebService:

same domain, other domain(domain1.com), other domain(domain2.com) with CORS enabled.

When the Request comes from the same domain, it works perfectly.

When the Request comes from some other domain(domain1.com), it throws an error. It means the browser has a property called Access-Control-Allow-Origin which restricts the requests from different domains for security purposes. So, we need to enable CORS to accomplish the request.

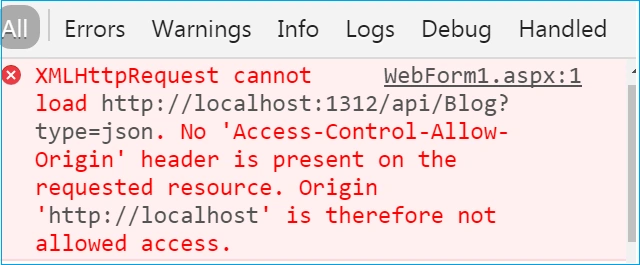

Figure 2: CORS error in the browser

From the above discussion, we need to enable CORS in Server-to-Server requests. Request comes from the other domain, it works perfectly because CORS is enabled.

Before starting the discussion, here are some terminologies and their definition.

What is WebAPI?

ASP.NET Web API is a framework that is used to make it easy to build HTTP services that reach a broad range of clients, including browsers and mobile devices. ASP.NET Web API is an ideal platform for building RESTful applications on the .NET framework. Moreover, Web API is open source and an ideal platform for building RESTful services over the .NET framework. It uses HTTP methods mainly GET, POST, PUT, and DELETE to communicate with clients. For more on WebAPI, visit here.

What is CORS?

CORS stands for Cross-Origin Resource Sharing. It is a mechanism that allows restricted resources on a web page to be requested from another domain, outside the domain from which the resource originated. A web page may freely embed images, stylesheets, scripts, iframes, and videos.

For security reasons, browsers restrict cross-origin HTTP requests initiated from within scripts. For example, XMLHttpRequest follows the same-origin policy. So, a web application using XMLHttpRequest could only make HTTP requests to its own domain. To improve web applications, developers asked browser vendors to allow XMLHttpRequest to make cross-domain requests.

What is the same origin policy?

Browsers allow a web page to make AJAX requests only within the same domain. Browser security prevents a web page from making AJAX requests to another domain. This is called the origin policy.

We can enable CORS in WebAPI,

1. Using JSONP
2. Using Microsoft.AspNet.WebApi.Cors

Using JSONP(JSON with Padding) formatter.

What is JSONP?

JSONP stands for JSON with Padding. It helps to implement cross-domain requests by the browser's same-origin policy. It wraps up a JSON response into a JavaScript function (callback function) and sends that back as a Script to the browser. This allows you to bypass the same origin policy and load JSON from an external server into the JavaScript on your webpage.

{
   "name": "manas",
   "age": 23,
   "temper": "moody"
}

With JSONP, when the server receives the "callback" parameter, it wraps up the result a little differently, and returns like this.

// JSONP:
newPerson({
  'name': 'manas',
  'age': 23,
  'temper': 'moody'
});

First, we need to enable CORS in WebAPI, then we call the service from another application AJAX request. In order to enable CORS, we need to install the JSONP package from NuGet (see Figure 3).

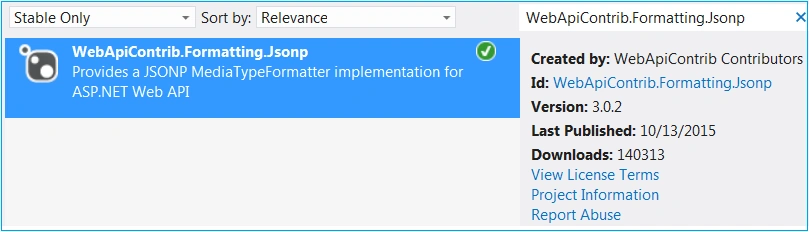

Figure 3: Adding Jsonp package from NuGet

After adding the Jsonp package, we need to add the following code snippet in the App_Start\WebApiConfig.cs file. It creates an instance of the JsonpMediaTypeFormatter class and adds it to the config formatted object.

var jsonpFormatter = new JsonpMediaTypeFormatter(config.Formatters.JsonFormatter);
config.Formatters.Add(jsonpFormatter);

Now, we are ready with CORS enabled in the Server and the other application needs to send AJAX requests that are hosted on another domain. In the below code snippet, it sends the datatype as JSONP which works for cross-domain requests.

<script src="http://ajax.aspnetcdn.com/ajax/jQuery/jquery-2.0.3.min.js"></script>
<script>
    $(document).ready(function () {
        $.ajax({
            type: 'POST',
            url: 'http://localhost:1312/api/Blog',
            cache: true,
            dataType: 'jsonp',
            success: function (json) {
                var htmlContent = "";
                $.each(json, function (key, item) {
                    htmlContent += "<tr><td>" + item.Id + "</td><td>" + item.Name + "</td><td>" + item.Url + "</td></tr>";
                });
                $('#blogs').append(htmlContent);
            },
            error: function (parsedjson, textStatus, errorThrown) {
                $('body').append(
                    "parsedJson status: " + parsedjson.status + '</br>' +
                    "errorStatus: " + textStatus + '</br>' +
                    "errorThrown: " + errorThrown);
            }
        });
    });
</script>

Disadvantages

• Incompatible in old browser
• Security issues that can steal your cookies(leads to a whole bunch of potential problems).

Using Microsoft.AspNet.WebApi.Cors

To use the Microsoft CORS package, you need to install it from the NuGet package.

Go to Tools Menu-> Library Package Manager -> Package Manager Console -> execute the below command.

Install-Package Microsoft.AspNet.WebApi.Cors

To register/enable CORS we are going to use the EnableCorsAttribute class and it takes four params(4th one is optional).

1. Origins: Here, we need to set Origins which means from which domain the requests will be accepted. If you have more than one domain, then you can set it as comma-separated. Additionally, if you want any domain request to be accepted then use the wild card as,
2. Request Headers: The Request header parameter specifies which Request headers are allowed. To allow any header set value to "*"
3. HTTP Methods: The methods parameter specifies which HTTP methods are allowed to access the resource. Use comma-separated values when you have multiple HTTP methods like "get, put, post". To allow all HTTP methods, use the wildcard value "*".
4. exposedHeaders: By default, the browser does not expose all of the response headers to the application. The response headers that are available by default are Cache-Control, Content-Language, Content-Type, Expires, Last-Modified, and Pragma.

To make other headers available in the browser you need to use exposed headers. You can set custom headers like below code snippet.

[EnableCors(origins: "*", headers: "*", methods: "*", exposedHeaders: "X-My-Header")]
public class TestController : ApiController
{
}

You can configure CORS support for Web API at three levels.

• Global level
• Controller level
• Action Level

Global level

Here, we are going to enable CORS at a Global level, which means it is applicable to all controllers and their actions. You need to add below code snippet below in the App_Start/WebApiConfig.cs file. It creates an instance of the EnableCorsAttribute class by passing the required parameters.

• "http://localhost:80/DemoApp/WebForm1.aspx": The server enables CORS for this domain.
• "*": STAR means it accepts all request headers.
• "GET, POST": It indicates it accepts only GET, POST HTTP verbs. If any request comes to a server other than "GET, POST" it throws an exception.

public static void Register(HttpConfiguration config)
{
    EnableCorsAttribute cors = new EnableCorsAttribute("http://localhost:80/DemoApp/WebForm1.aspx", "*", "GET,POST");
    config.EnableCors(cors);
}

Controller level

We can enable CORS at the Controller level which means all the actions present inside are ready to serve requests from cross-domain. Here we need to add the EnableCors attribute on the top of the controller by passing the required parameter(same as discussed above).

[EnableCors(origins: "http://localhost:5901/DemoApp/WebForm1.aspx", headers: "*", methods: "*")]
public class ValuesController : ApiController
{
}

Action Level

Likewise, at the controller level, we can enable CORS at the Action level which means CORS is enabled for particular actions and is ready to serve requests from cross-domain. Here, we need to add the EnableCors attribute on the top of the action by passing the required parameter (same as discussed above).

public class ValuesController : ApiController
{
    [EnableCors(origins: "http://localhost:5901", headers: "*", methods: "*")]
    // GET api/values
    public IEnumerable<string> Get()
    {
        return new string[] { "value1", "value2" };
    }
}

Enable CORS in WebAPI 1.0

If you are working in WebAPI 1.0 then you need to add the following code in the Global.asax file. Here we enabled CORS in the Application_BeginRequest() event which checks the origin name and then adds headers to the response object.

protected void Application_BeginRequest()
{
    string[] allowedOrigin = new string[] { "http://localhost:2051", "http://localhost:2052" };
    var origin = HttpContext.Current.Request.Headers["Origin"];
    if (origin != null && allowedOrigin.Contains(origin))
    {
        HttpContext.Current.Response.AddHeader("Access-Control-Allow-Origin", origin);
        HttpContext.Current.Response.AddHeader("Access-Control-Allow-Methods", "GET,POST");
    }
}

Disable CORS

Suppose you enabled CORS in Global or Controller level then all actions are enabled for CORS. However, if you want CORS to not be enabled for a couple of actions due to some security reason, the DisableCors attribute plays a vital role in Disable CORS which means other domains can't call the action.

[DisableCors()]
// GET api/values/5
public string Get(int id)
{
    return "value";
}

CORS is mostly server-side technology that works tightly with a browser. So CORS in browser support is also necessary. See what browsers are supported by CORS: http://enable-cors.org/client.html

Note. If you encounter the above exception, you have to install the package: Install-Package Microsoft.AspNet.WebApi –IncludePrerelease.

or install Microsoft ASP.NET Web API 2.2.

{
    "Attempt by method 'System.Web.Http.GlobalConfiguration..cctor()' to
    access field 'System.Web.Http.GlobalConfiguration.CS$<>9__CachedAnonymousMethodDelegate2' failed."
}

Conclusion

CORS is Cross Origin Request Sharing which enables you to call the methods of one domain from an external domain. We discussed enabling CORS in two ways: JSONP and Microsoft Cors package. Due to security reasons, browser incompatibility of Microsoft Cors wins over JSONP.

Hope this helps!
