Cropping and Saving Image to Web Page Programmatically Using System.Drawing

In this article we are going to see how to crop and save the image to the web programmatically.

Saving Mechanism:

Step 1: The namespaces used:

using System.Drawing;
using System.Drawing.Imaging;
using System.Web;

Step 2: Usage:

protected void Page_Load(object sender, EventArgs e)
{
SaveImageTOBrowser();
}

Step 3: Saving image to browser:

public void SaveImageTOBrowser()
{
//Set the Local image
Bitmap bitmap = new Bitmap(Server.MapPath("scenary.jpg"));

//Get the current response
HttpResponse response = GetHttpResponse();

//Set the ContentType
response.ContentType = "image/jpeg";

//Saving Bitmap Image to
bitmap.Save(response.OutputStream, ImageFormat.Jpeg);
}

Step 4: Getting current response:

public static HttpResponse GetHttpResponse()
{
return HttpContext.Current.Response;
}

Step 5: Full Code Snippet:

using System;
using System.Drawing;
using System.Drawing.Imaging;
using System.Web;

namespace SampleApplication
{
public partial class DrawingManupulation : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
SaveImageTOBrowser();
}
//Save Image to Browser
public void SaveImageTOBrowser()
{
//Set the Local image
Bitmap bitmap = new Bitmap(Server.MapPath("scenary.jpg"));

//Get the current response
HttpResponse response = GetHttpResponse();

//Set the ContentType
response.ContentType = "image/jpeg";

//Saving Bitmap Image to
bitmap.Save(response.OutputStream, ImageFormat.Jpeg);
}
//USed to get the current response.
public static HttpResponse GetHttpResponse()
{
return HttpContext.Current.Response;
}
}
}

Output:

Cropping and Saving Mechanism

Step 1: The namespaces used:

using System.Drawing;
using System.Drawing.Imaging;
using System.Web;

Step 2: Usage:

protected void Page_Load(object sender, EventArgs e)
{
SaveCroppedImageTOBrowser();
}

Step 3: Saving image to browser:

//CROP Image to Browser
public void SaveCroppedImageTOBrowser()
{
//Set the Local image
Bitmap bitmap = new Bitmap(Server.MapPath("scenary.jpg"));
Bitmap croppedBitmap = CropBitmap(bitmap, 0, 0, 300, 200);
//Get the current response
HttpResponse response = GetHttpResponse();

//Set the ContentType
response.ContentType = "image/jpeg";

//Saving Bitmap Image to
croppedBitmap.Save(response.OutputStream, ImageFormat.Jpeg);
}

Step 4: Getting current response:

public static HttpResponse GetHttpResponse()
{
return HttpContext.Current.Response;
}

Step 5: Full Code Snippet:

using System;
using System.Drawing;
using System.Drawing.Imaging;
using System.Web;

namespace SampleApplication
{
public partial class DrawingManupulation : System.Web.UI.Page
{
protected void Page_Load(object sender, EventArgs e)
{
SaveCroppedImageTOBrowser();
}

//CROP Image to Browser
public void SaveCroppedImageTOBrowser()
{
//Set the Local image
Bitmap bitmap = new Bitmap(Server.MapPath("scenary.jpg"));
Bitmap croppedBitmap = CropBitmap(bitmap, 0, 0, 300, 200);

//Get the current response
HttpResponse response = GetHttpResponse();

//Set the ContentType
response.ContentType = "image/jpeg";

//Saving Bitmap Image to
croppedBitmap.Save(response.OutputStream, ImageFormat.Jpeg);
}

//USed to get the current response.
public static HttpResponse GetHttpResponse()
{
return HttpContext.Current.Response;
}
public Bitmap CropBitmap(Bitmap bitmap, int cropX, int cropY, int cropWidth, int cropHeight)
{
Rectangle rect = new Rectangle(cropX, cropY, cropWidth, cropHeight);
Bitmap cropped = bitmap.Clone(rect, bitmap.PixelFormat);
return cropped;
}
}
}

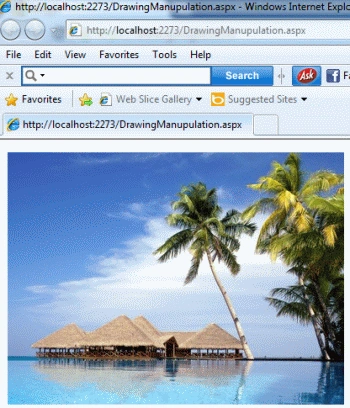

Original Image:

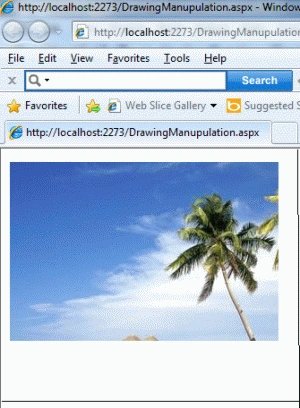

Cropped Image:

Thanks for reading this article. Have a nice day.
