CKEditor is a WYSIWYG-rich text editor that enables writing content directly inside of web pages or online applications. Its core code is written in JavaScript and it is developed by CKSource. CKEditor is available under open-source and commercial licenses.

What is a MathType tool?

MathType is an online equation editor that provides perfect-quality math formulas. No matter which environment you are using it in, your documents will always look professional and of a high quality.

Integration source code (index.html)

<html lang="en">
<head>
    <meta charset="utf-8">
    <meta name="robots" content="noindex, nofollow">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <title>Creating mathematical and chemical formulas with MathType</title>
    <link href="https://cdn.jsdelivr.net/npm/[email protected]/dist/css/bootstrap.min.css" rel="stylesheet">
</head>
<body>
    <h1>MATH TOOL</h1>
    <textarea cols="10" id="editor1" name="editor1" rows="10" data-sample-short>
        <p><math xmlns="http://www.w3.org/1998/Math/MathML"><mfrac><mn>2</mn><mn>5</mn></mfrac><mo>+</mo><mfrac><mn>3</mn><mn>5</mn></mfrac><mo>=</mo><mn>16</mn></math></p>
        <p><math xmlns="http://www.w3.org/1998/Math/MathML" class="wrs_chemistry"><msub><mi mathvariant="normal">H</mi><mn>2</mn></msub><msub><mi>SO</mi><mn>4</mn></msub></math></p>
    </textarea>
    <script src="https://cdn.ckeditor.com/4.14.0/standard-all/ckeditor.js"></script>
    <script src="https://cdn.jsdelivr.net/npm/[email protected]/dist/js/bootstrap.bundle.min.js"></script>
    <script>
        (function() {
            var mathElements = [
                'math',
                'maction',
                'maligngroup',
                'malignmark',
                'menclose',
                'merror',
                'mfenced',
                'mfrac',
                'mglyph',
                'mi',
                'mlabeledtr',
                'mlongdiv',
                'mmultiscripts',
                'mn',
                'mo',
                'mover',
                'mpadded',
                'mphantom',
                'mroot',
                'mrow',
                'ms',
                'mscarries',
                'mscarry',
                'msgroup',
                'msline',
                'mspace',
                'msqrt',
                'msrow',
                'mstack',
                'mstyle',
                'msub',
                'msup',
                'msubsup',
                'mtable',
                'mtd',
                'mtext',
                'mtr',
                'munder',
                'munderover',
                'semantics',
                'annotation',
                'annotation-xml'
            ];
            CKEDITOR.plugins.addExternal('ckeditor_wiris', 'https://ckeditor.com/docs/ckeditor4/4.14.0/examples/assets/plugins/ckeditor_wiris/', 'plugin.js');
            CKEDITOR.replace('editor1', {
                extraPlugins: 'ckeditor_wiris,print,format,font,colorbutton,justify,uploadimage,find,magicline,bidi,easyimage,image2,colordialog,tableresize',
                mathJaxLib: 'https://cdnjs.cloudflare.com/ajax/libs/mathjax/2.7.4/MathJax.js?config=TeX-AMS_HTML',
                format_tags: 'p;h1;h2;h3;h4;h5;h6;pre;address;div',
                contentsLangDirection: 'ltr',
                removeButtons: 'ExportPdf,Form,Checkbox,Radio,TextField,Select,Textarea,Button,ImageButton,HiddenField,NewPage,CreateDiv,Flash,Iframe,About,ShowBlocks,Maximize',
                toolbarGroups: [{
                        name: 'clipboard',
                        groups: ['clipboard', 'undo']
                    },
                    {
                        name: 'editing',
                        groups: ['find', 'selection', 'spellchecker']
                    },
                    {
                        name: 'links'
                    },
                    {
                        name: 'insert'
                    },
                    {
                        name: 'forms'
                    },
                    {
                        name: 'tools'
                    },
                    {
                        name: 'document',
                        groups: ['mode', 'document', 'doctools']
                    },
                    {
                        name: 'colors'
                    },
                    {
                        name: 'others'
                    },
                    {
                        name: 'about'
                    },
                    '/',
                    {
                        name: 'basicstyles',
                        groups: ['basicstyles', 'cleanup']
                    },
                    {
                        name: 'paragraph',
                        groups: ['list', 'indent', 'blocks', 'align', 'bidi']
                    },
                    {
                        name: 'styles'
                    }
                ],
                removePlugins: 'uploadimage,uploadwidget,uploadfile,filetools,filebrowser',
                removeDialogTabs: 'image:advanced;link:advanced',
                height: 320,
                extraAllowedContent: mathElements.join(' ') + '(*)[*]{*};img[data-mathml,data-custom-editor,role](Wirisformula);h3{clear};h2{line-height};h2 h3{margin-left,margin-top}; div{border,background,text-align}'
            });
        }());
    </script>
</body>
</html>

Math tooll

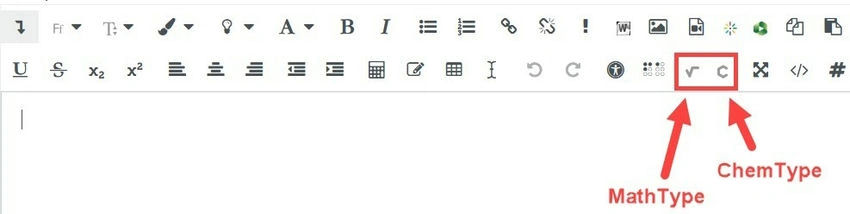

Math type

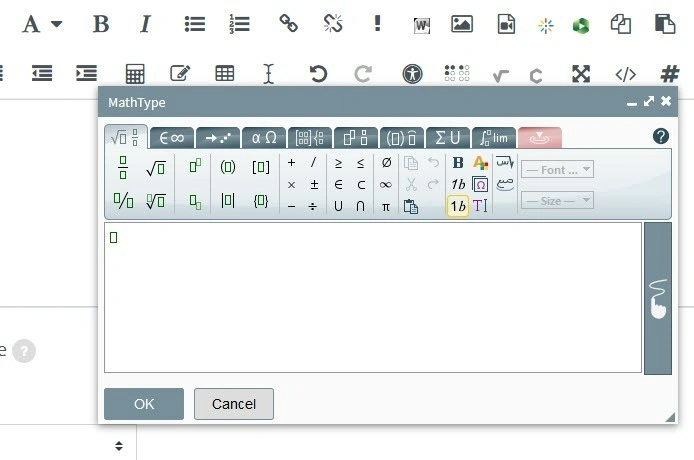

OK
