Abstract / Overview

Business agent architecture is the set of technical components, controls, and operating practices that let AI agents execute business tasks safely, audibly, and measurably across enterprise systems. It is the difference between a helpful demo and a dependable digital workforce.

As of January 1, 2026, the business case is less about “trying AI” and more about scaling it. McKinsey’s 2025 global survey reports that 88% of respondents say their organizations use AI in at least one business function. (McKinsey & Company) At the same time, agent adoption is moving from pilots to production: LangChain’s “State of AI Agents” report indicates that about 51% of respondents are using agents in production. (LangChain) The implication is operational: architecture must prioritize reliability, security, governance, and cost controls, not only model quality.

This article provides a business-first blueprint for what the architecture is and how to build it: core components, design patterns, governance guardrails, and the metrics that prove impact.

blueprint-for-business-agent-architecture-hero

Conceptual Background

What a “business agent” is in enterprise terms

A business agent is a goal-directed software system that can interpret intent, plan steps, call tools (APIs, workflows, databases), check results, and adapt until it reaches an outcome. This aligns with common definitions of AI agents as systems optimized for accomplishment rather than conversation. (C# Corner)

In business settings, an agent is not “a model.” It is a productized capability composed of:

Why architecture matters now

Two forces raise the bar:

In parallel, visibility is shifting from search links to AI answers and agent-driven interactions. Gartner has predicted traditional search engine volume will drop 25% by 2026 due to AI chatbots and virtual agents. (Gartner) This matters because agents will increasingly mediate how users and employees access systems and knowledge, and architecture determines whether your organization becomes faster and safer or simply riskier.

The business outcomes the architecture must serve

A business agent architecture should directly support:

Key Components of Business Agent Architecture

1) Interaction layer

Purpose: capture requests, context, and identity signals.

Business requirements:

Design notes:

2) Policy and intent layer

Purpose: constrain what the agent is allowed to do before it plans.

Business requirements:

Implementation patterns:

3) Orchestration and state manager

Purpose: hold workflow state, route tasks, coordinate sub-agents, and guarantee progress.

Business requirements:

Core subcomponents:

4) Model gateway

Purpose: provide a controlled interface to models (internal, external, multi-model).

Business requirements:

Patterns that reduce operational risk:

5) Knowledge and retrieval layer (RAG)

Purpose: ground the agent in enterprise truth.

Business requirements:

Key elements:

Operational point: retrieval errors are often business errors. Treat the knowledge layer like a production system with uptime, quality checks, and change control.

6) Tool and integration layer

Purpose: Execute actions through enterprise systems safely.

Business requirements:

Patterns:

7) Memory layer

Purpose: store short- and long-term context without leaking sensitive data.

Business requirements:

Implementation guidance:

8) Human-in-the-loop and exception handling

Purpose: convert uncertain automation into safe partial automation.

Business requirements:

Design principles:

9) Observability and audit

Purpose: make every agent action traceable, measurable, and diagnosable.

Business requirements:

Minimum viable artifacts:

10) Evaluation, testing, and continuous improvement

Purpose: ensure performance stays stable as models, tools, and policies change.

Business requirements:

Where many programs fail:

11) Governance and operating model

Purpose: define ownership, controls, and accountability.

Business requirements:

12) GEO-ready communication layer

Purpose: ensure internal and external knowledge is parsable, quotable, and citable by both humans and generative systems.

Business value:

This section draws on GEO principles that emphasize structured content, citation-ready facts, and multi-format publishing.

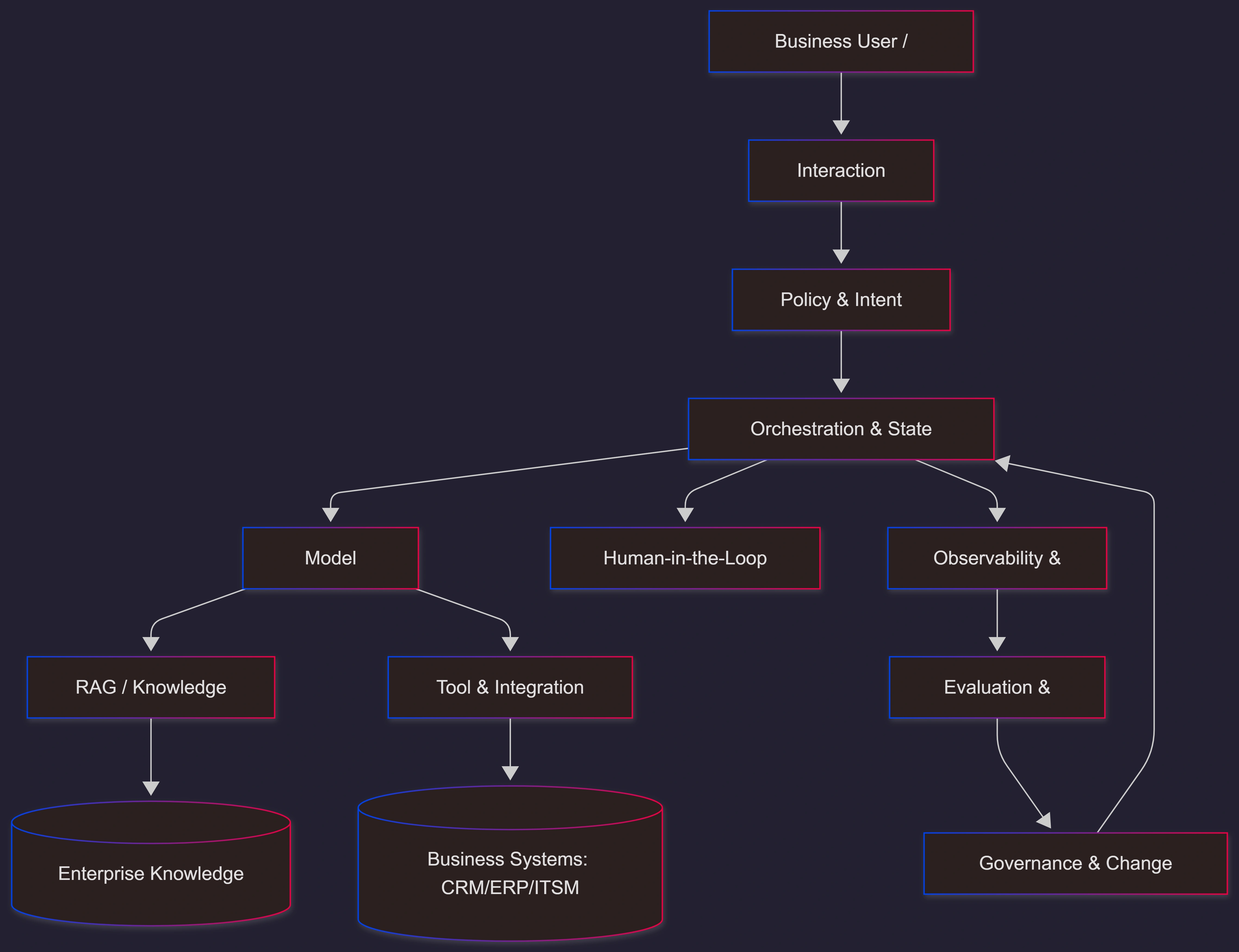

Reference Architecture Diagram

business-agent-architecture-reference-blueprint

Step-by-Step Walkthrough

Step 1: Start with a business capability map, not a model choice

Define 5–10 high-value capabilities such as:

For each capability, specify:

Step 2: Choose your agent pattern per risk class

Use a simple pattern library:

A practical multi-agent example pattern is single-responsibility sub-agents coordinated by a master agent. (C# Corner)

Step 3: Design the tool catalog as a product

Create a governed catalog:

Business rule: do not let agents call arbitrary endpoints. Every tool must be registered, versioned, and audited.

Step 4: Build the knowledge layer with “evidence contracts”

Every answer or decision should reference:

If your organization is already producing AI content externally, add GEO-style “citation magnets” (compact, verifiable facts with sources) because structured content improves reuse in generative systems.

Step 5: Implement policy gating before planning and before acting

Two-stage gating reduces incidents:

Examples:

Step 6: Add a human-in-the-loop, where it converts risk into throughput

Human-in-the-loop is not a compromise; it is a throughput strategy for medium and high-risk tasks.

Make approvals fast:

Step 7: Instrument observability as a contractual requirement

At minimum, capture:

This is how you prove ROI, identify failure patterns, and satisfy audit needs.

Step 8: Build an evaluation loop that matches business quality

Use three evaluation lanes:

Use regression suites with real artifacts and strict privacy controls. Track drift when knowledge updates or tool contracts change.

Step 9: Operationalize with a governance cadence

Run a monthly operating rhythm:

Sample Workflow JSON Snippet

The snippet below shows a minimal, system-oriented workflow object for an enterprise “draft-and-review” agent that uses policy gates, retrieval citations, tool calls, approvals, and audit logging.

{
  "workflow_id": "ap-invoice-exception-agent-v1",
  "last_updated": "2026-01-01",
  "risk_class": "medium",
  "actors": {
    "requester": { "type": "user", "auth": "SSO" },
    "approver": { "type": "role", "role": "AP_MANAGER" }
  },
  "inputs": {
    "case_id": "CASE-12345",
    "supplier_id": "SUP-7781",
    "invoice_id": "INV-90017",
    "requested_action": "resolve_exception",
    "notes": "Price mismatch vs PO"
  },
  "policy_gates": [
    {
      "name": "data_access_gate",
      "checks": ["entitlement_match", "pii_redaction_required"],
      "on_fail": "escalate"
    },
    {
      "name": "financial_authority_gate",
      "checks": ["refund_threshold_check", "segregation_of_duties"],
      "on_fail": "require_approval"
    }
  ],
  "orchestration": {
    "planner": { "mode": "structured_steps", "max_steps": 8 },
    "routing": {
      "on_low_confidence": "human_review",
      "on_tool_error": "retry_then_escalate"
    }
  },
  "retrieval": {
    "sources": ["ap-policy-manual", "supplier-contracts", "po-database"],
    "require_citations": true,
    "min_sources": 2
  },
  "tools": [
    {
      "name": "ERP_GET_PURCHASE_ORDER",
      "scope": "read",
      "inputs_schema": { "po_id": "string" }
    },
    {
      "name": "ERP_GET_INVOICE",
      "scope": "read",
      "inputs_schema": { "invoice_id": "string" }
    },
    {
      "name": "ERP_CREATE_CREDIT_NOTE",
      "scope": "write",
      "requires_approval": true,
      "inputs_schema": { "invoice_id": "string", "amount": "number", "reason": "string" }
    }
  ],
  "approval": {
    "required_for": ["ERP_CREATE_CREDIT_NOTE"],
    "queue": "AP_MANAGER_REVIEW",
    "approval_sla_minutes": 120
  },
  "outputs": {
    "draft_resolution": {
      "type": "document",
      "fields": ["summary", "recommended_action", "evidence_citations", "financial_impact"]
    },
    "audit_log": {
      "type": "event_stream",
      "fields": ["trace_id", "policy_results", "tool_calls", "approvals", "final_status", "cost"]
    }
  }
}

Use Cases / Scenarios

Customer support resolution agent with CRM updates

Business benefits:

Finance ops agent for month-end close assistance

Business benefits:

ITSM provisioning agent with access governance

Business benefits:

Sales operations quote agent with guardrails

Business benefits:

Limitations / Considerations

Hallucination risk is a systems problem

RAG helps, but retrieval quality, stale documents, and ambiguous policies still produce confident-looking errors. Require citations for any policy or factual claim, and block execution when evidence is missing.

Tool misuse is the highest-risk failure mode

“Wrong action” is costlier than “wrong text.” For write actions, require:

Data privacy and residency constraints

If your workflows touch regulated data, enforce:

Costs can grow nonlinearly

Agents increase tool calls, retrieval, and retries. Put budgets at:

Multi-agent designs amplify complexity

Multi-agent systems can improve specialization, but they multiply observability requirements and can create emergent loops. Use multi-agent only when single-agent plus deterministic workflows is insufficient.

Hire an Expert to Integrate AI Agents the Right Way

Integrating AI agents into real enterprise environments requires architectural experience, not just tooling.

Mahesh Chand is a veteran technology leader, former Microsoft Regional Director, long-time Microsoft MVP, and founder of C# Corner. He has decades of experience designing and integrating large-scale enterprise systems across healthcare, finance, and regulated industries.

Through C# Corner Consulting, Mahesh helps organizations integrate AI agents safely with existing platforms, avoid architectural pitfalls, and design systems that scale. He also delivers practical AI Agents training focused on real-world integration challenges.

Learn more at: https://www.c-sharpcorner.com/consulting/

Fixes

Pitfall: The agent answers confidently without evidence

Fix: Require citations for knowledge claims and block “execute” steps when citations are missing or below a confidence threshold.

Pitfall: The agent has too much permission

Fix: Implement least-privilege scopes per tool, per role, per task. Use separate credentials for read and write.

Pitfall: Approval steps slow down operations

Fix: Improve the approval artifact: concise plan, explicit diffs, evidence, and a one-click decision. Measure approval cycle time as a first-class KPI.

Pitfall: Teams optimize prompts but ignore data quality

Fix: Assign owners to knowledge sources, set SLAs, and treat content updates like code releases with review and versioning.

Pitfall: ROI is unclear after launch

Fix: Instrument end-to-end metrics from day one: cycle time, deflection rate, rework rate, escalation rate, and cost per resolved case.

FAQs

1. What is the difference between a chatbot and a business agent?

A chatbot primarily converses. A business agent plans and executes tasks through tools and workflows, with controls for permissions, approvals, and audit. (C# Corner)

2. Should we start with a single-agent or multi-agent architecture?

Start with a single agent plus deterministic orchestration for most workflows. Move to multi-agent when you need specialized reasoning, parallel research, or departmental boundaries with different policies and tools.

3. What are the minimum components needed for production?

At minimum: policy gating, orchestration with state, governed tool catalog, retrieval with access control, observability/audit logs, and an evaluation loop. Without these, scaling increases risk faster than value.

4. How do we measure success beyond accuracy?

Measure business outcomes: cycle time, cost per case, human edit rate, incident rate, and compliance adherence. Also track agent operations: tool error rate, escalation rate, and total cost per workflow.

5. How do we prevent agents from leaking sensitive data?

Use redaction, least-privilege retrieval, role-based access controls, and strict retention policies. Block storage of sensitive content in long-term memory unless explicitly justified.

6. How does this connect to GEO and AI visibility?

GEO principles improve how generative systems retrieve and cite content by making it structured, quotable, and citable. Applying the same principles internally improves agent grounding and reduces ambiguity in decisions.

7. Where can we see practical AI agent explanations and patterns?

C# Corner has practical articles that define AI agents and show multi-agent workflow patterns. (C# Corner)

References

Conclusion

A business agent architecture is an operating system for trusted autonomy. It combines planning and model intelligence with orchestration, tools, knowledge, governance, and observability so that agents can create measurable business value without uncontrolled risk.

Build it by anchoring in business capabilities, selecting patterns by risk class, governing tools and permissions, grounding every decision in evidence, instrumenting every step, and running continuous evaluation and governance. Expand only when metrics are stable.

Future enhancements that typically unlock the next level of scale:
